- 19 -
Mechanical disassemblies
4

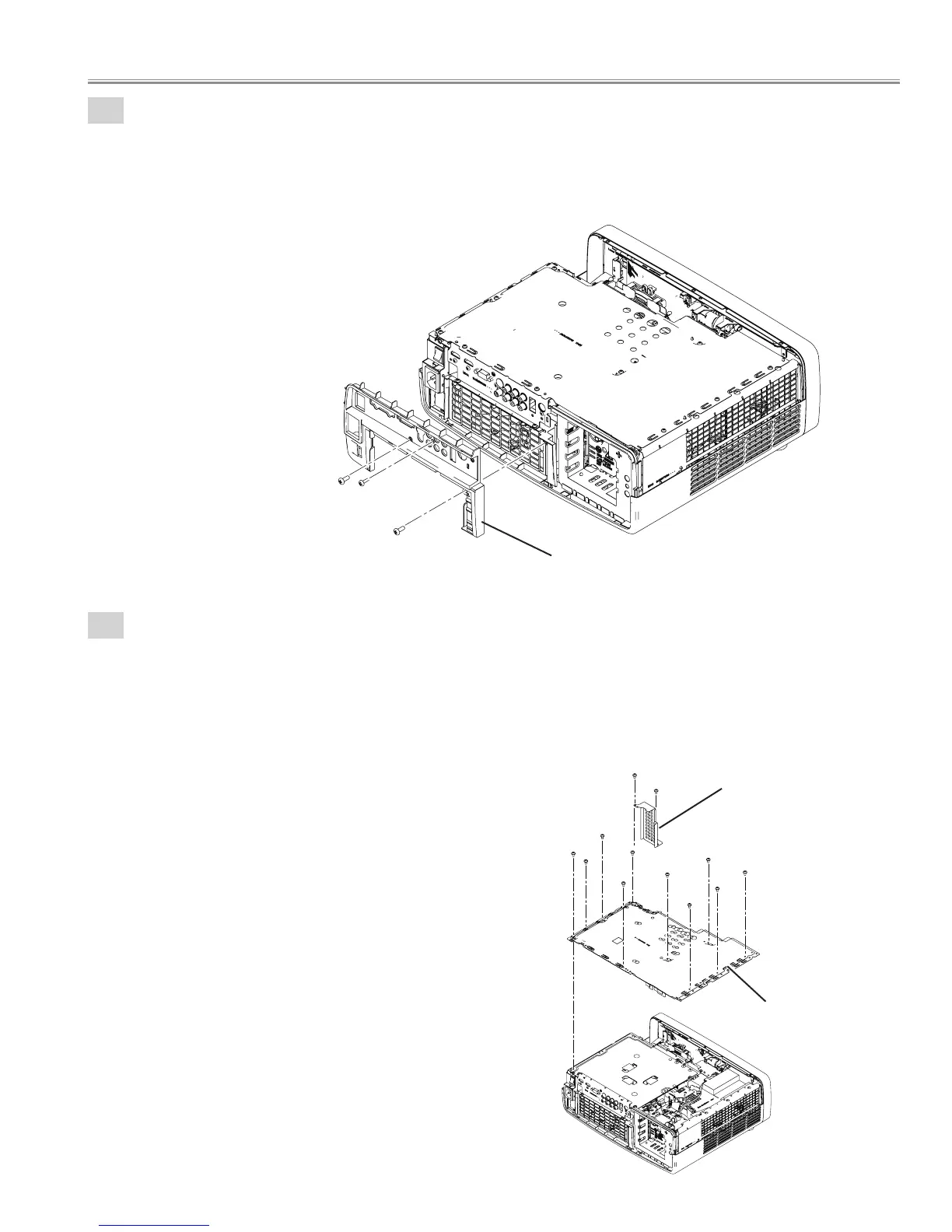

AV panel removal.
1. Remove the 2 screws-A(M3x8), remove the screw-B(T3x8) and remove the AV panel.
B
A
AV panel
A
5
Main PWB shield plata(top) removal.
1. Remove the 2 screws-C(M3x6) and remove the Shield plate (Main board-front) .
2. Remove the 9 screws-A(M3x6), remove the screw-B(M3x10) and remove the Shield plate
(Main board-top) .
Shield plate
(Main board top)
A
B
A
A
A
A
A
A
A
A
C
C
Shield plate
(Main board front)
