Sanyo PLV-Z3000 Service Manual

- 22 -

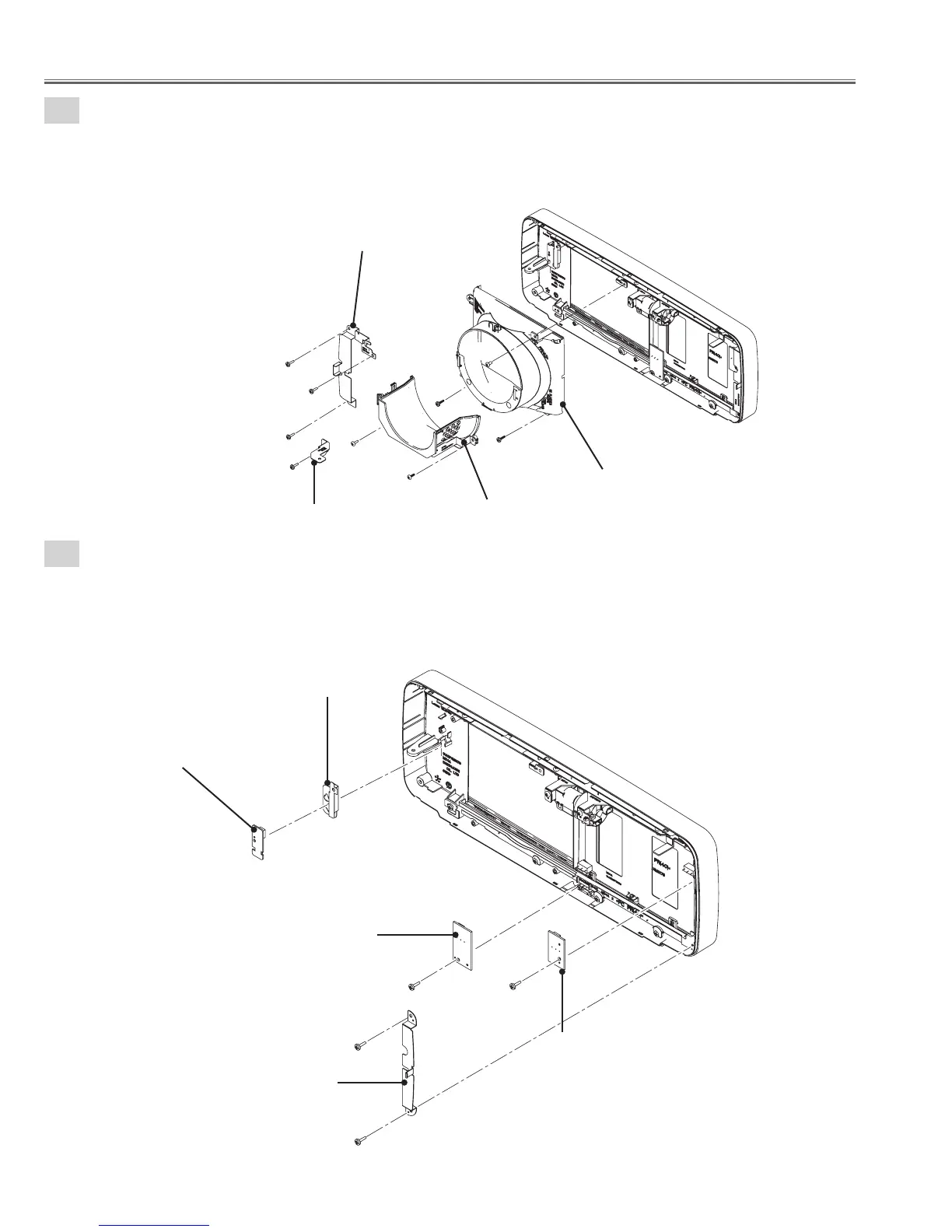

9-1
Cabinet front ass'y disassembly.
1. Remove the 3 screws-A(T3x10) and remove the Mounting front-a.
2. Remove the screw-B(T3x10) and remove the Mounting front-C.
3. Remove the screw-C(M3x6), remove the 2 screws-D(T3x10) and remove the Cover lens bottom assy.
4. Remove the 2 screws-E(T3x8) and remove the Cover lens bottom-a.
Mounting front-A
Cover lens bottom
A
A
E
9-2
Cabinet front ass'y disassembly.
1. Unhook and remove the R/C board, remove the Mounting front RC.
2. Remove the screw-A(T3x10) and remove the Shutter SW-B board.
3. Remove the 2 screws-B(T3x10) and remove the Mounting front-B.
4. Remove the screw-C(T3x10) and remove the Shutter SW-A board.
A C
R/C board
Shutter SW-B board
Shutter SW-A board
A
B
Mounting front-C
C
Cover lens bottom-A
E
D
D
Mounting front-RC
B
B
Mounting front-B
Mechanical disassemblies

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
