- 23 -
9-3

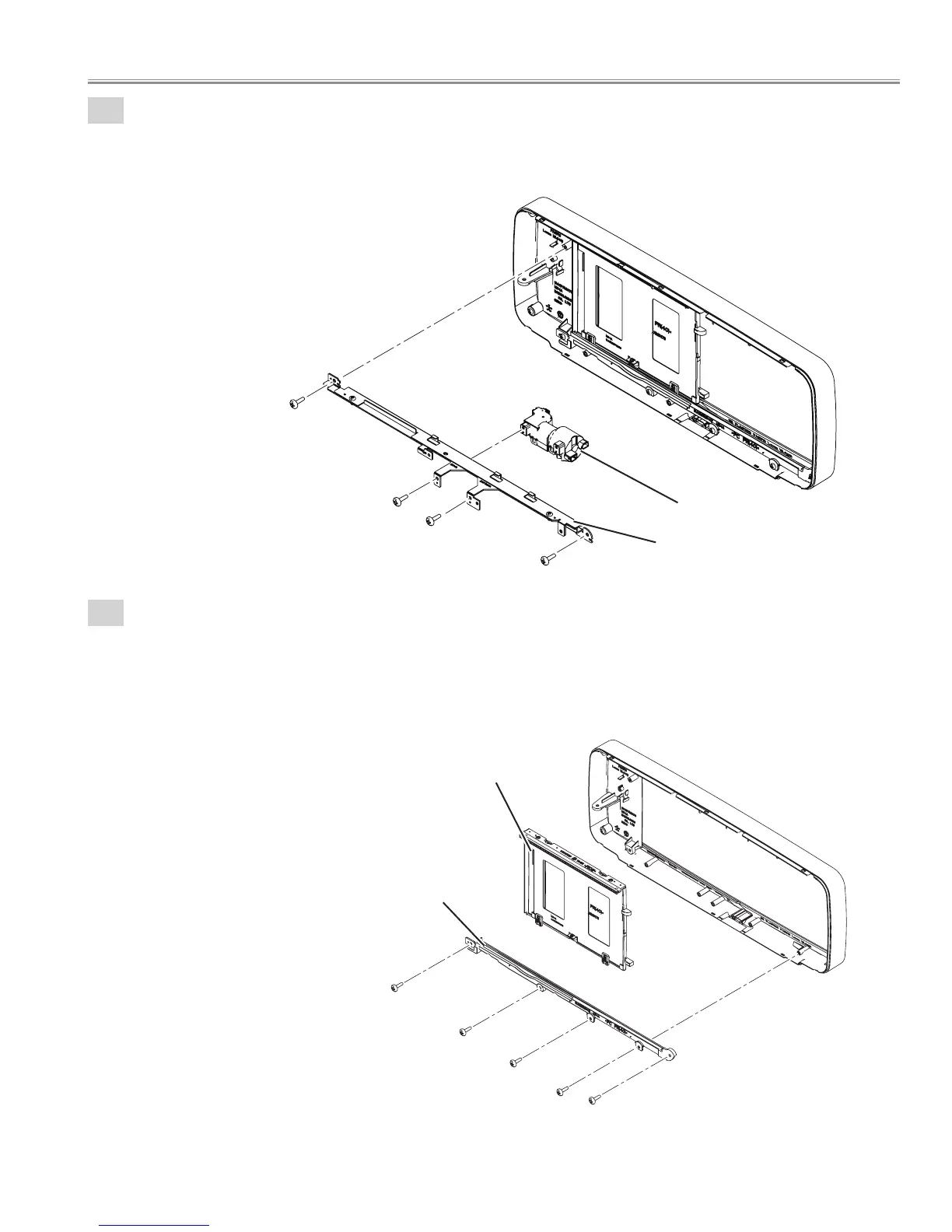

Cabinet front ass'y disassembly.
1. Remove the 2 screws-A (T3x10) and remove Shutter rail top unit.
2. Remove the 2 screws-B (T3x10) and remove the Shutter motor.
9-4
Cabinet front ass'y disassembly.
1. Remove the 5 screws (T3x10) and remove the Shutter rail bottom.
2. Remove the Shutter panel unit.
A
A
B
B
Shutter motor
Shutter rail top unit
Shutter panel unit
Shutter rail bottom
Mechanical disassemblies
