- 24 -

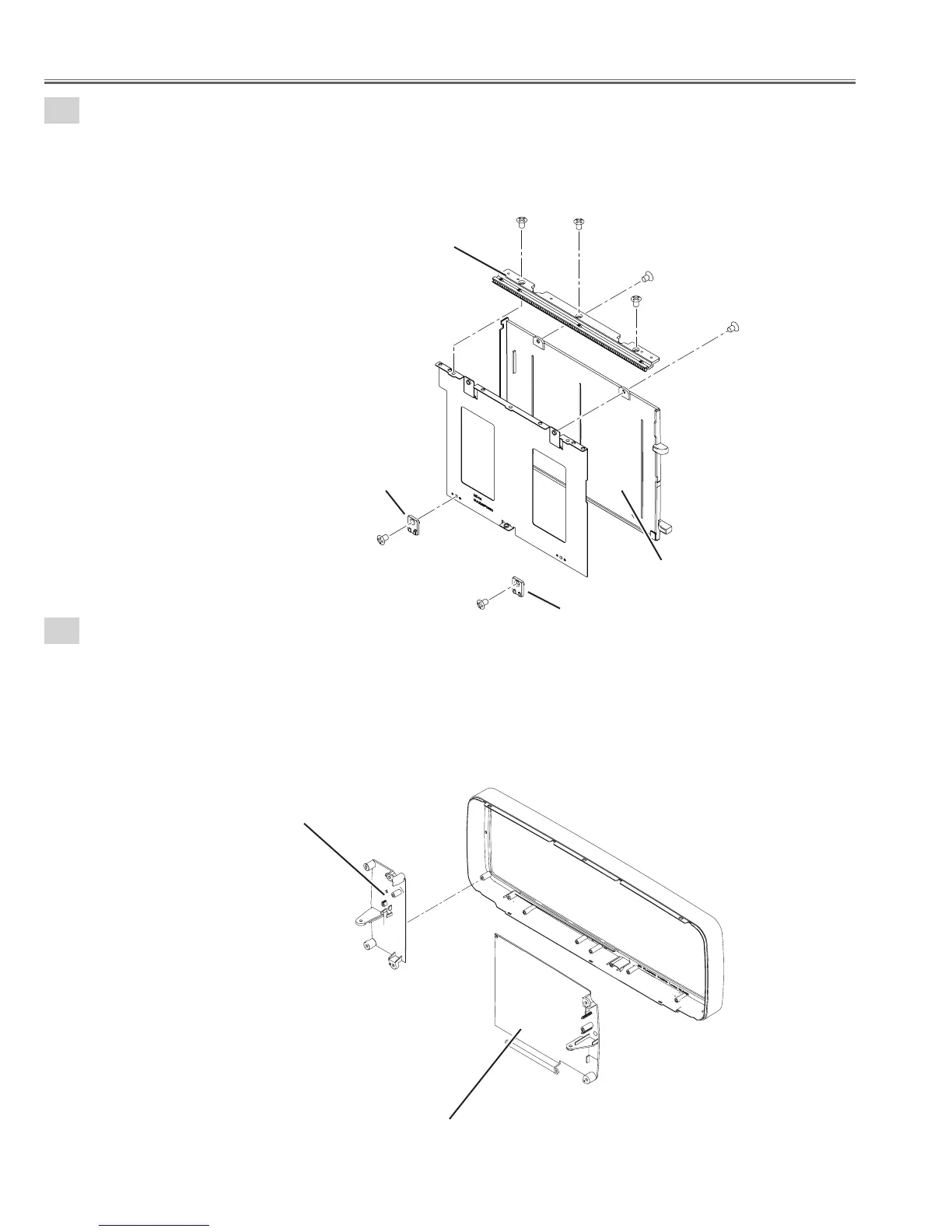

9-5
Cabinet front ass'y disassembly.
1. Remove the 3 screws-A (M2.6x4) and remove the Gear.
2. Remove the 2 screws-B (M2.6x4) and remove the Shutter panel.
3. Remove the 2 screws-C (M2.6x4) and remove the 2 spacers.
A
A
A
B
B
C
C
Spacer
Gear
Shutter panel
Spacer
9-6
Cabinet front ass'y disassembly.
1. Remove the Panel front-A.
2. Remove the Panel front-B.
Panel front-A
Panel front-B
Mechanical disassemblies
