Sanyo PLV-Z3000 Service Manual

- 27 -
10-4

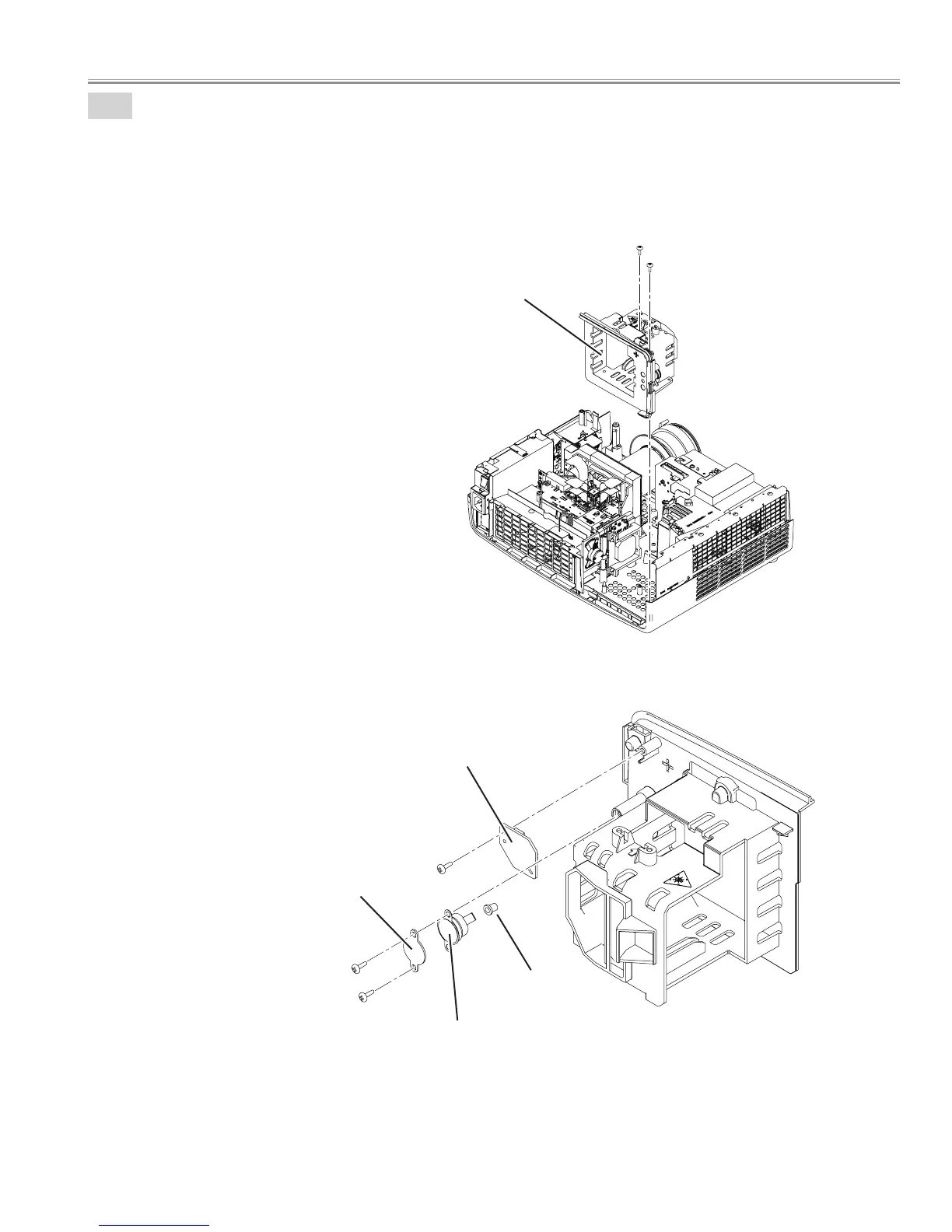

Lamp unit holder removal.
1. Remove the 2 screws-A (T3x8) and remove the Lamp unit holder.
2. Remove the screwB (T3x8) and remove the Lamp cover switch(SW8803) board.
3. Remove the 2screws-C (T3x8), remove the Spacer, remove the Cap and remove the Thermal switch(SW902).
B
A
A
Lamp unit holder
C
C
Lamp cover switch(SW8803) board
Spacer
Thermal switch(SW902)
Cap
Mechanical disassemblies

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
