- 28 -
11

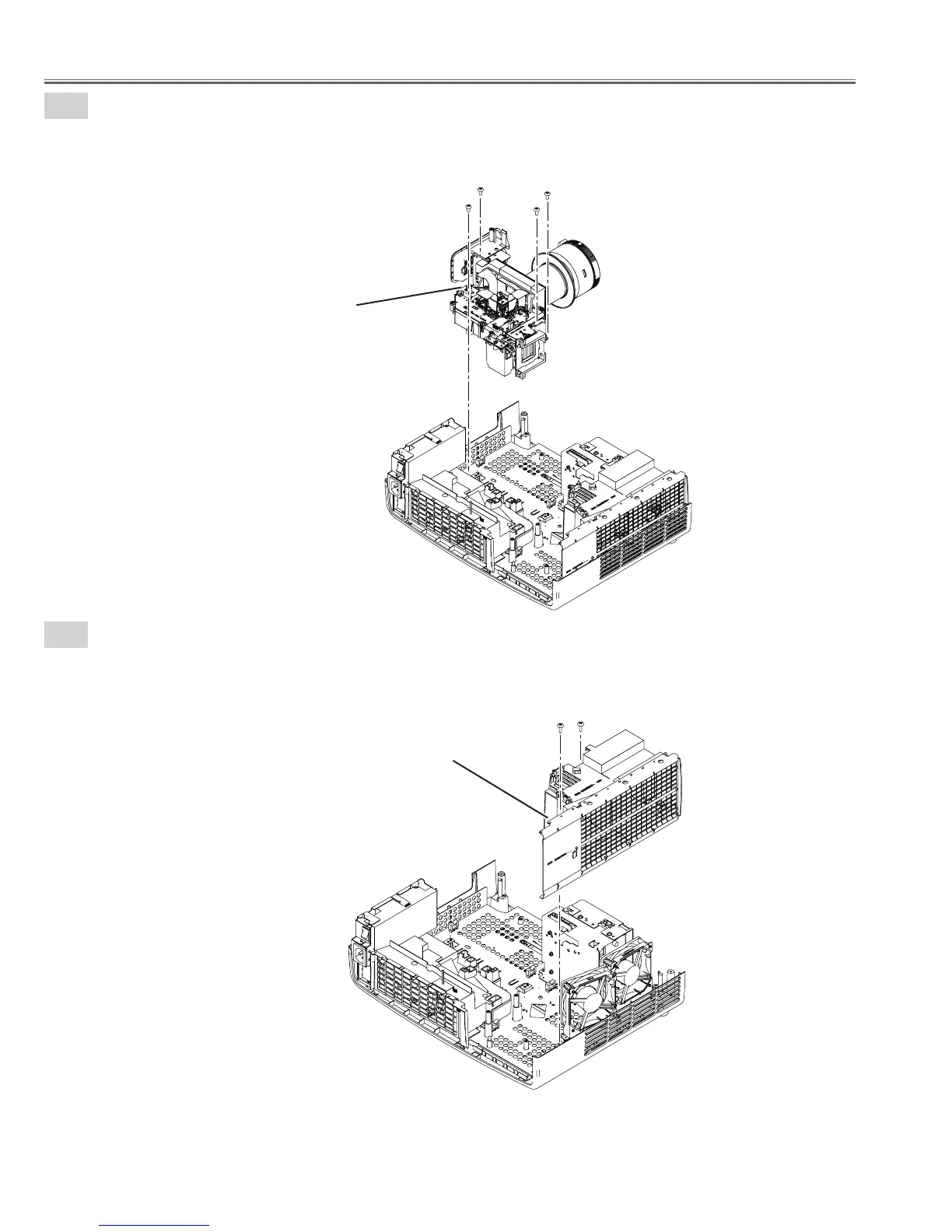

Optical removal.
1. Remove the 4 screws (T3x10) and remove the Optical unit.
Optical unit
12-1
Cover duct EXH removal.
1. Remove the 2 screws (T3x8) and remove the Cover duct EXH.
Cover duct EXH
Mechanical disassemblies
