Sartorius Cubis MCA125P Series User Manual

48 Operating Instructions Cubis
®
MCA
Installation
5.7 Installing a Device with an Analytical Draft
Shield or Flat Glass Draft Shield
5.7.1 Positioning the Weighing Pan
andAssociatedComponents
Procedure

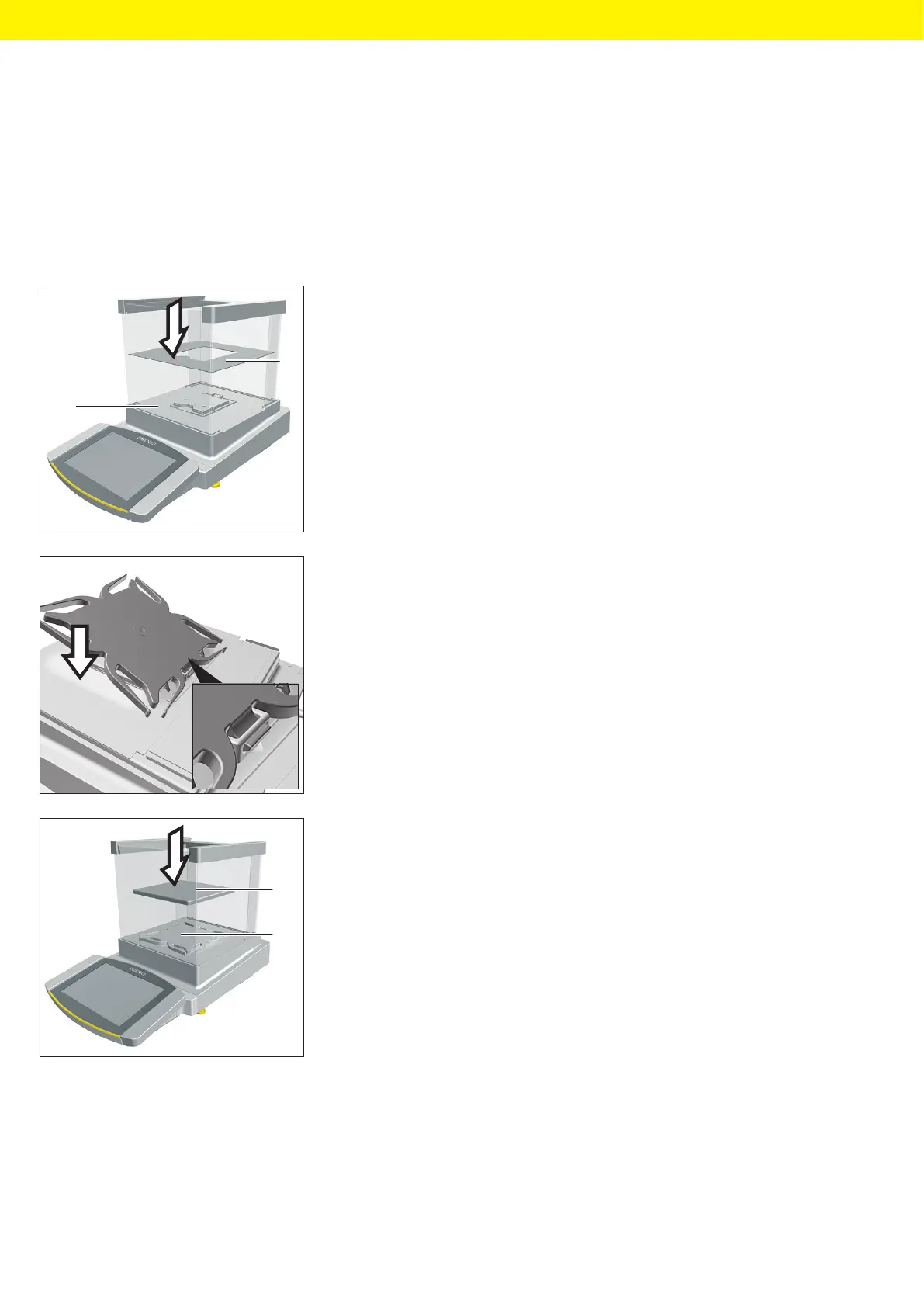

t If this relates to a device with a pan support:
t Place the shield plate (1) on the base of the weighing chamber (2).
t Hook the pin on the pan support into the clip on the pan retainer.
t Push the pan support down onto the pan retainer until the pan
support lies parallel to the device housing.
t Place the weighing pan (1) onto the pan support (2).
1
2
1
2
