Installation

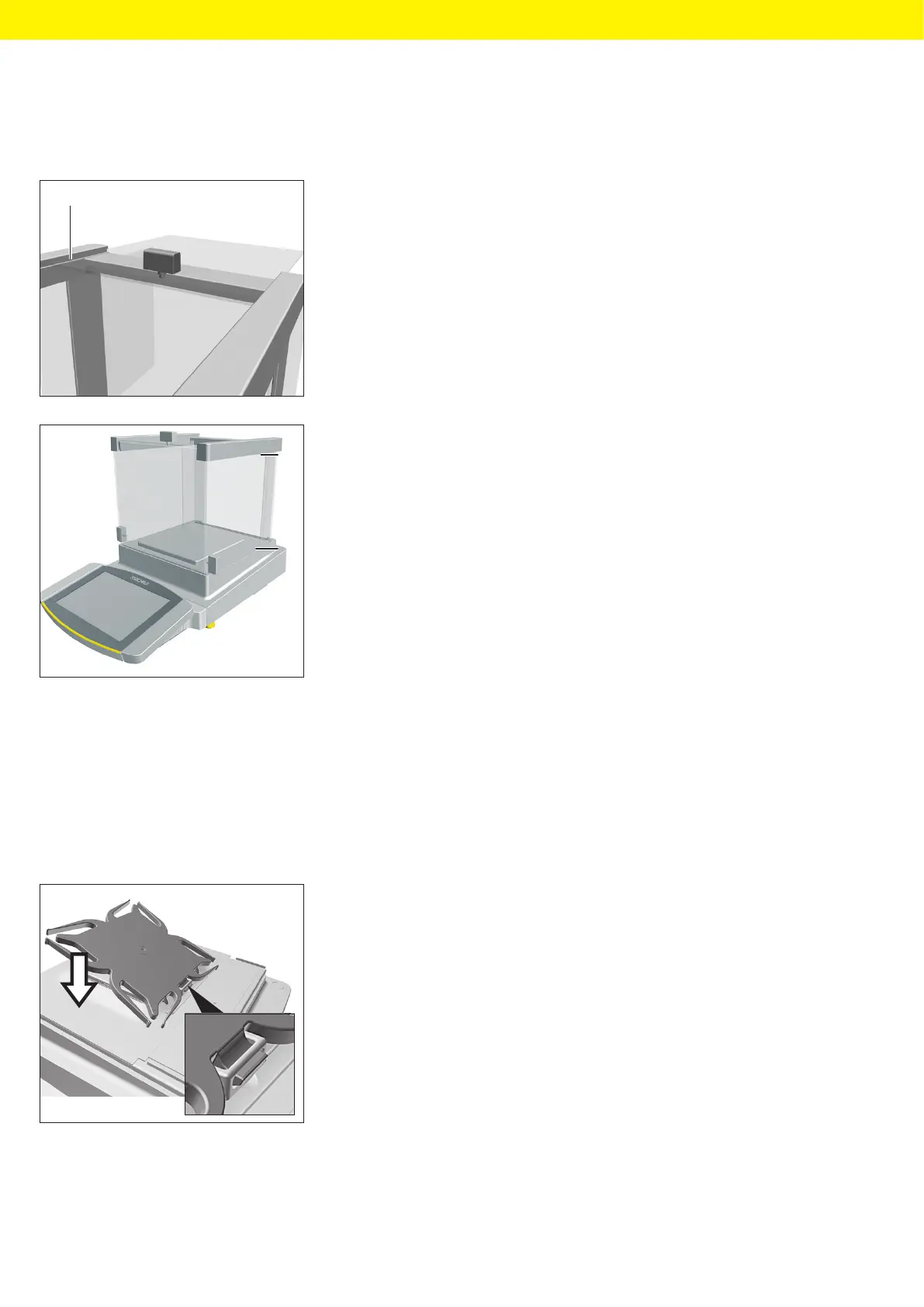

5.7.3 Installing the Flat Glass Draft Shield
Procedure
t Gently tilt the upper panel down. This enables the upper panel to slide
completely into the slot (1).
t Slide the upper panel completely into the slot.
t Insert the side panel completely into the guide rails on the weighing
module (2) and into the upper guide rails (1).
5.8 Installing a Device with a Frame Draft Shield
5.8.1 Positioning the Weighing Pan
andAssociatedComponents
Procedure
t Insert the pin on the pan support into the clip on the pan retainer.
t Push the pan support down onto the pan retainer until the pan support
lies parallel to the device housing.
1
1
2
