Installation
t If this relates to a device without a pan support:
t Place the shield plate (2) into the weighing chamber.
t Place the weighing pan (1) into the recess in the shield plate.

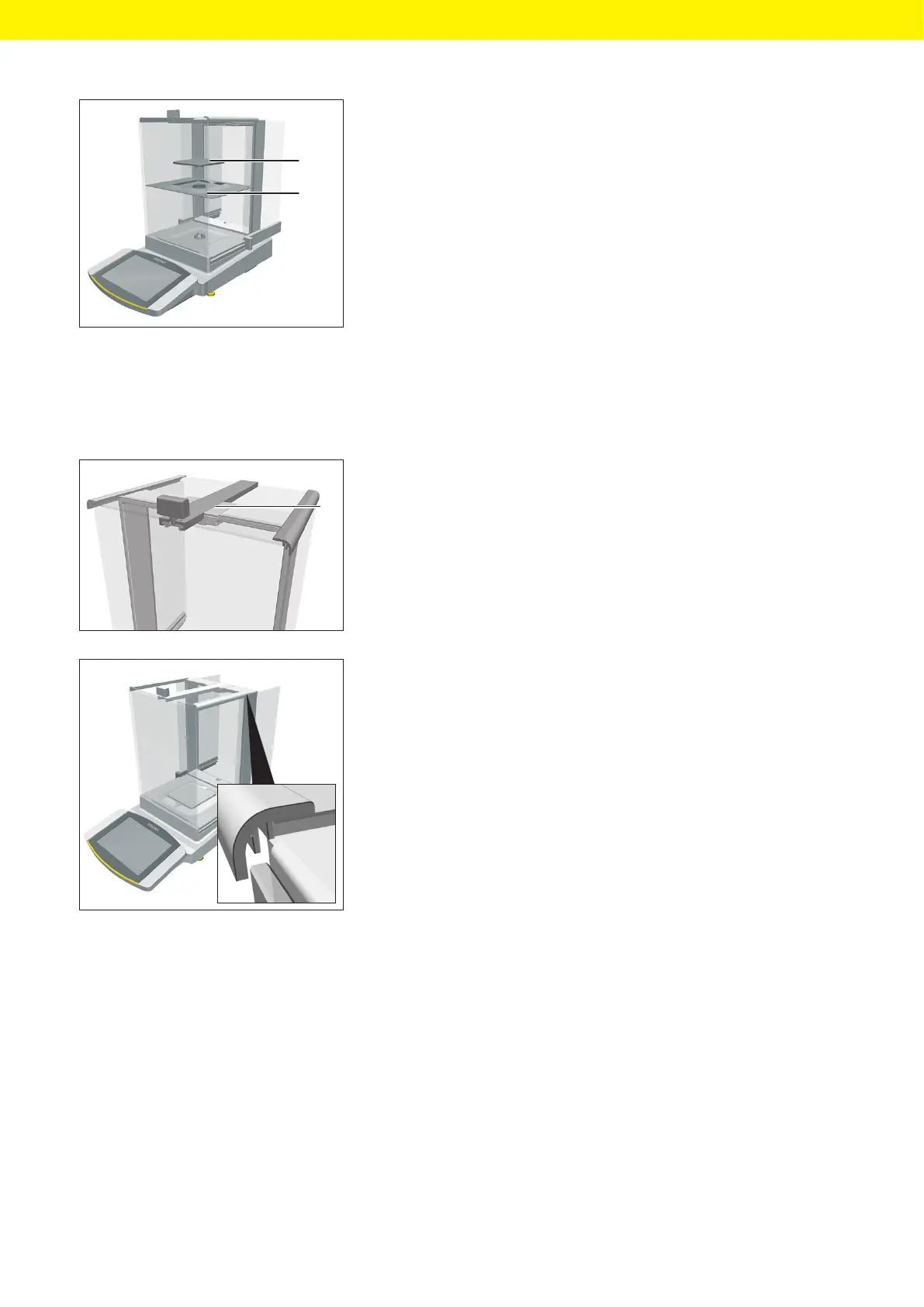

5.7.2 Installing the Analytical Draft Shield
Procedure
t Slide the upper panel into the guide rail (1).
t Gently push the upper panel down. This enables the upper panel
toslidecompletely.
t Slide the upper panel completely into the guide rail.
t Insert the side panels completely into the guide rails.
1
2
1
