LINEARIZATION PARAMETERS
Only if linearization to specification was configured (Con2 = x2xx), press key M >5
seconds at parameter level for changing over to linearization parameter
display/operation ( new level ). If linearization to specification was not configured,
press key M >5 seconds for changing over to the configuration level.
+
The parameter level is left after a timeout of 30 s or when pressing key M shortly
after the last parameter.
Linearization parameters:
Linearization parameter name
Symbol
Adjustment range
Number of segments r fig.: 5
n
1...8
Input value f. 1st linearization segment point
In1
-999 ... In2 *
Output value f. 1st linearization segment point
Ou1
-999 ... 9999 Ü
Input value f. 2nd-9th linearization segment point
In9
In(n-1)... In (n+1)*
Output value f. 2nd-9th linearization segment point
Ou9
-999 ... 9999 Ü
Ü Display in units of the displayed physical quantity, the decimal point is determined by “dP”.
* Display in units of the physical quantity of the input variable.
Press key M during more than 5 seconds for switch-over to configuration level.
14 9408-800-25001
In1
In3
In2
In4
In5
In6
In7
In8
In9
Ou1
Ou2 Ou3 Ou4 Ou5 Ou6 Ou7 Ou8 Ou9
Segment 1 Segment 8

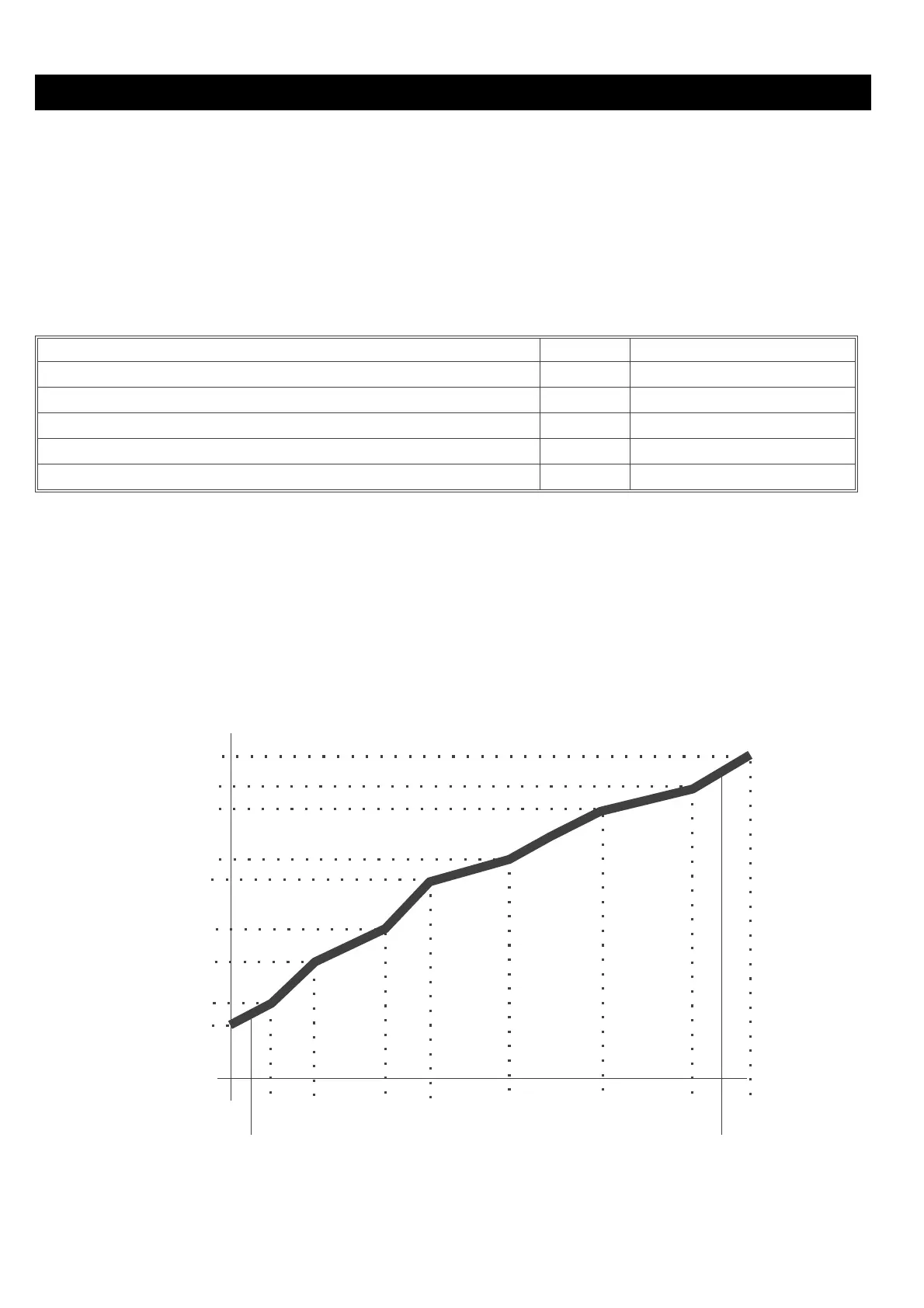

Fig.:5 Example linearization with 8 segments ( 9 pairs of values)
