VERSIONS
9408 800 25001
90...265 V AC

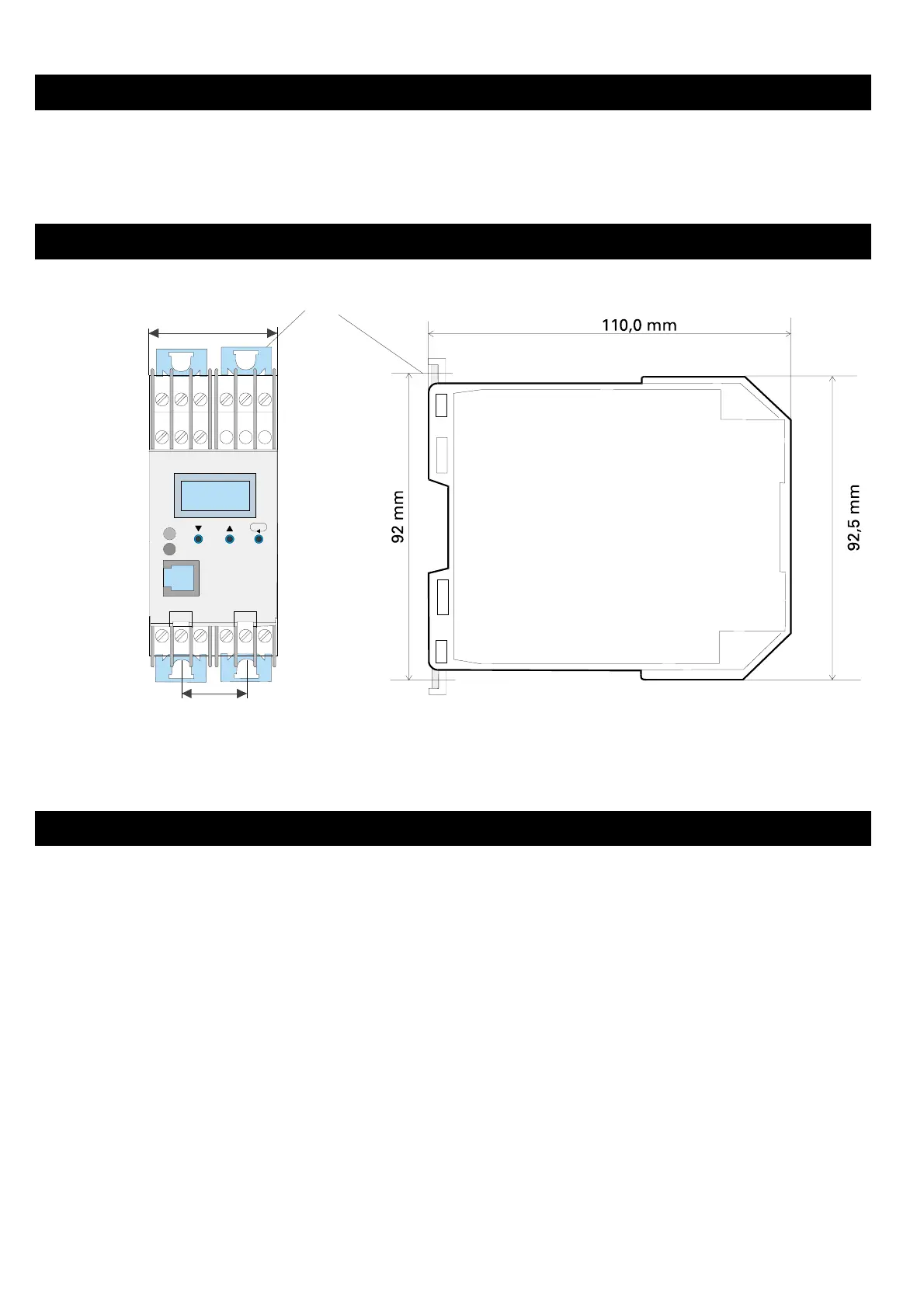

MOUNTING
extensible tabs
The unit is suitable for rail mounting and wall mounting.
ELECTRICAL CONNECTIONS
Keep mains cables separate from signal and measuring cables. Twisted and
screened measuring cables are required (screen connected to earth).
Connected final elements must be equipped with protective circuits to manufacturer
specification. This avoids voltage peaks which can cause trouble to the transmitter.
The instrument must be protected by an individual or common fuse for a max. power
consumption of 10 VA per unit (standard fuse ratings, min. 1 A)!
a
Signal and measurement circuits may carry max. 50 V r.m.s. against
ground, mains circuits may carry 250 V r.m.s. between the connectors.
4 9408-800-25001
789
1
0
1
1
1
2
123
22 23 24
1999
19 20 21
40
20
