OPERATION
Display of measured value (physical quantity) and output variable (0..100%) is at
p OPERATING LEVEL 1.
p PARAMETER LEVEL 2 The parameter level is used for adaption of values, e.g.
limit values.
Matching the unit to the measurement task (inputs) and to the output functions may
be necessary at p CONFIGURATION LEVEL 3.

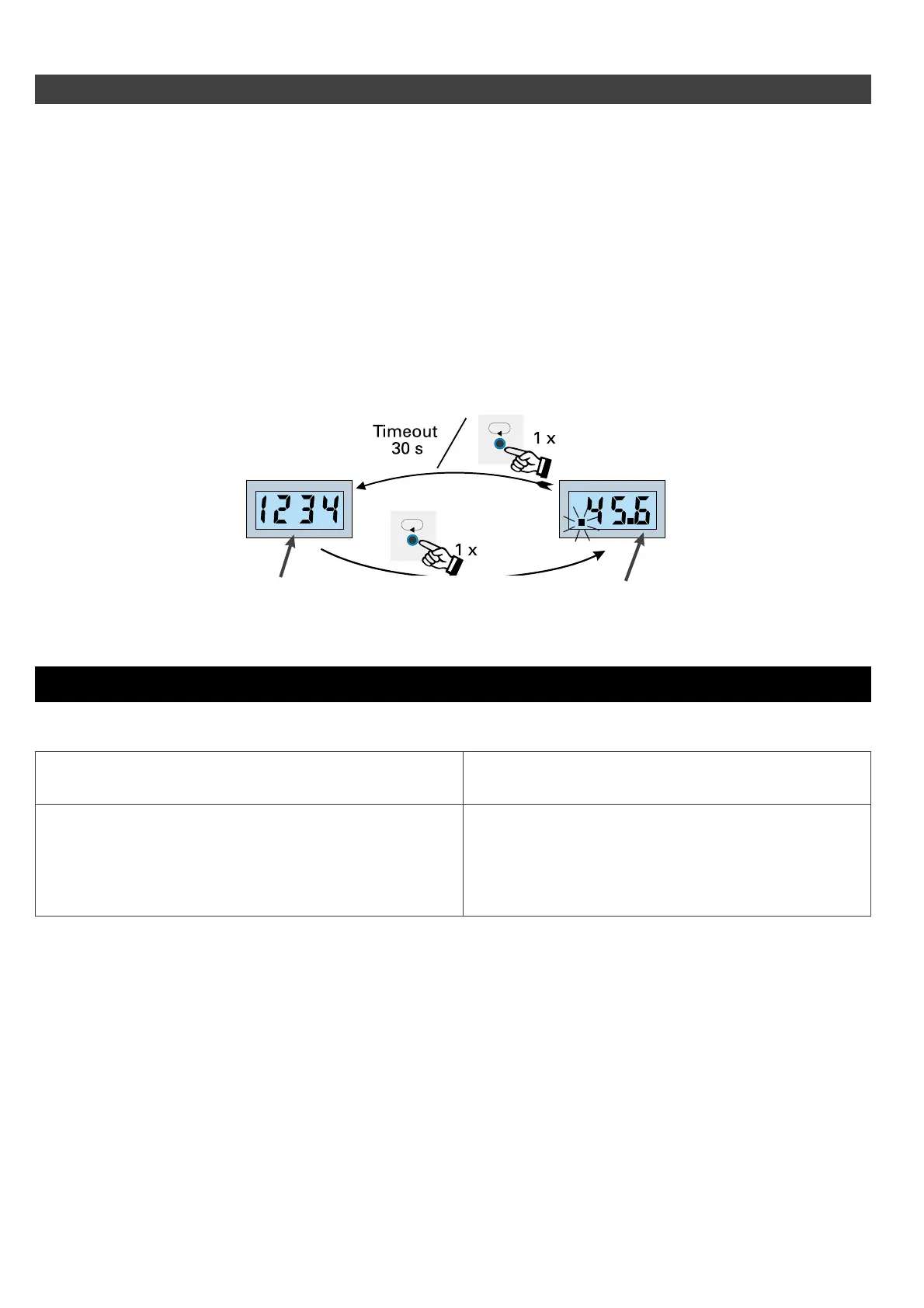

OPERATING LEVEL
Normally, the standard measurement value is displayed. Key M can be used for
display of the output variable during approx. 30 s.
Switch on the supply
voltage:
the unit is initialized.
(all displ.el.lit for.2 s;
Con1 word for.3s)
unit is at operating
level 1
ERROR DISPLAYS
With defined process conditions, a message is displayed.
Process status
Display of measured value / output
variable
Sensor break
FbF
Output variable overflow (> 110%)
nnnn
Output variable overflow (< -10%)
(output signals cannot be < than 0 mA /0 V).
uuuu
6 9408-800-25001
