Transmitter
MP 25
Operating instructions
9408-800-25001
valid from no. 8386

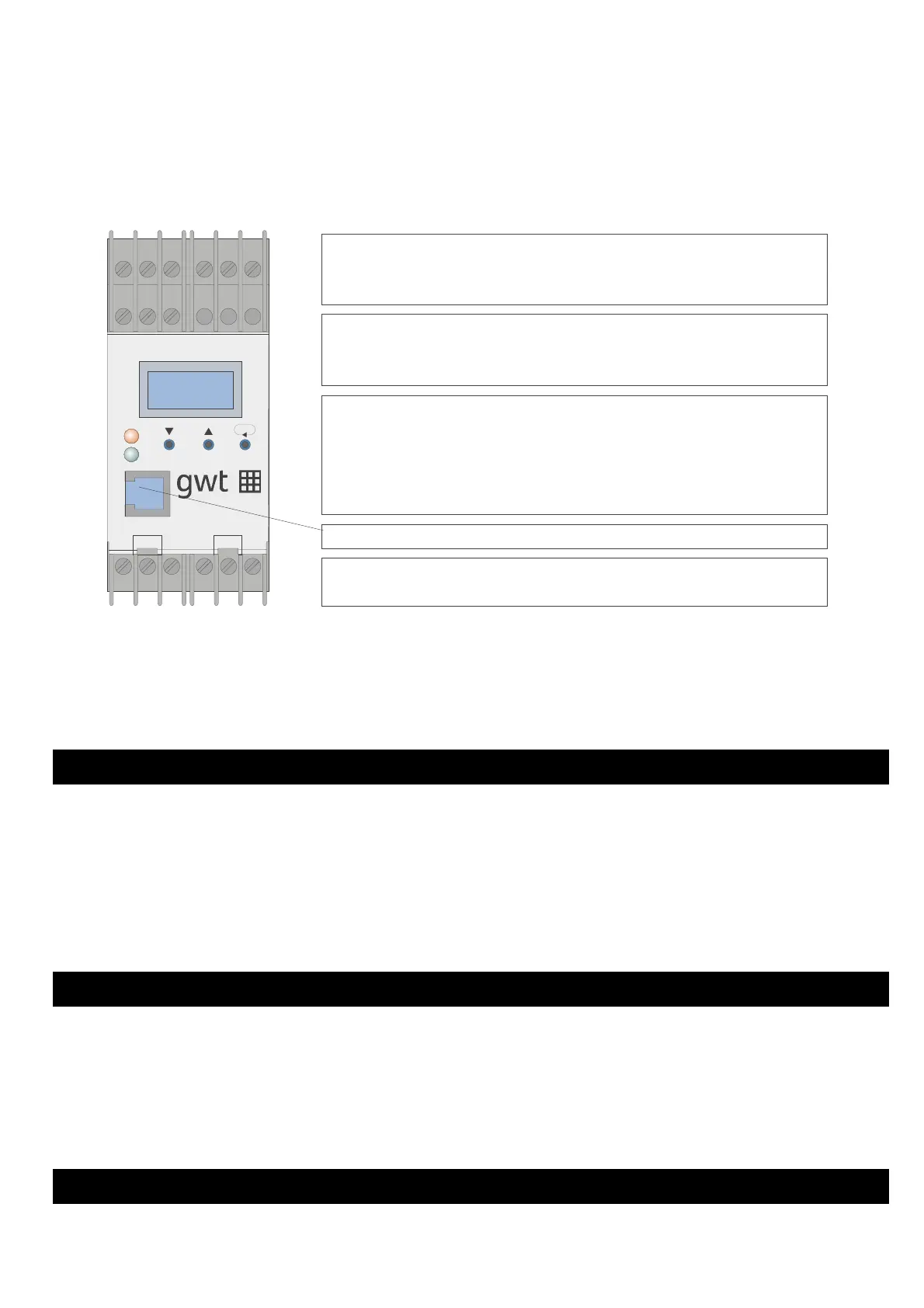

Screw terminals
Input:1, 2, Bridge supply: 7,8
Relay output: 10, 11
LED
red= indicator input circuit monitoring
green = indicator for supply voltage
Key
M Display switch-over,
Level switch-over and confirmation
I Increase value rg
D Decrease value rg
4-pole connection for interface adaptor
Output (current/voltage): 19, 20, 21
Power supply connections: 22, 23, 24
g
The values are changed the faster the longer the key is pressed. This applies to
parameters and configurations. We recommend noting the old values before changing.
SAFETY HINTS
Following the enclosed safety instructions (9499 047 08801) is indispensable!
The insulation of the instrument conforms to EN 61 010-1 with pollution degree 2,
overvoltage categoriy II, operation voltage and protection class I.
This instrument is not explosion-protected!
.
ELECTROMAGNETIC COMPATIBILITY (89/336/EEC)
Transmitter MP 25 meets European guideline 89/336/EEC “Electromagnetic
compatibility” and is provided with the CE-marking. The following European generic
standards are met:Electromagnetic radiation EN 50081-1 and susceptibility to
interference: EN 50082-2.
The unit is suitable without restriction for use in residential and industrial areas.
TECHNICAL DATA r Data sheet no. 9498 708 25001
9408-800-25001 3
789 101112
123
22 23 24
1999
19 20 21
MP25
