Folgende Einstellung:
Konfiguration
Anpassung in Parameterebene
Con1:x51x ;
In 1 = 1,6
Ou1=0
Skalierung von Eingang auf Anzeige
Con2: x1x1
In 2 = 9,6
Ou2=1000
Skalierung von Eingang auf Anzeige
OutL = 0
OutH=1000
Skalierung von Anzeige auf Ausgang
Zwischen Klemme 19 und 21 liegen 2...10V.
Kabelverbindungskasten
9408-800-25001 29
4
789 101112
123
22 23 24
1999
19 20 21
PR6130/xx
e.g. /z.B. /par ex.

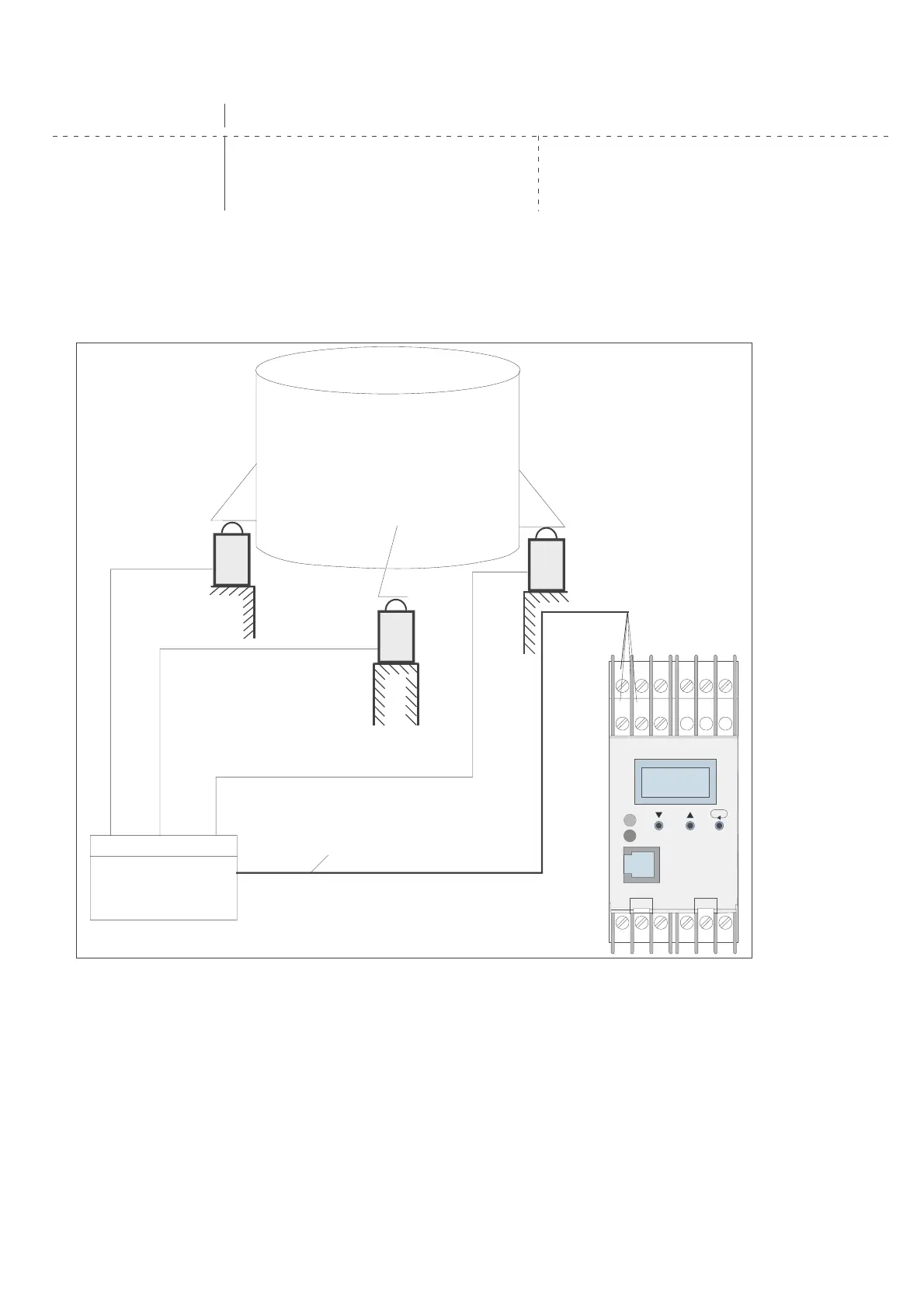

Bild 4 Anwendungsbeispiel für Wägen
