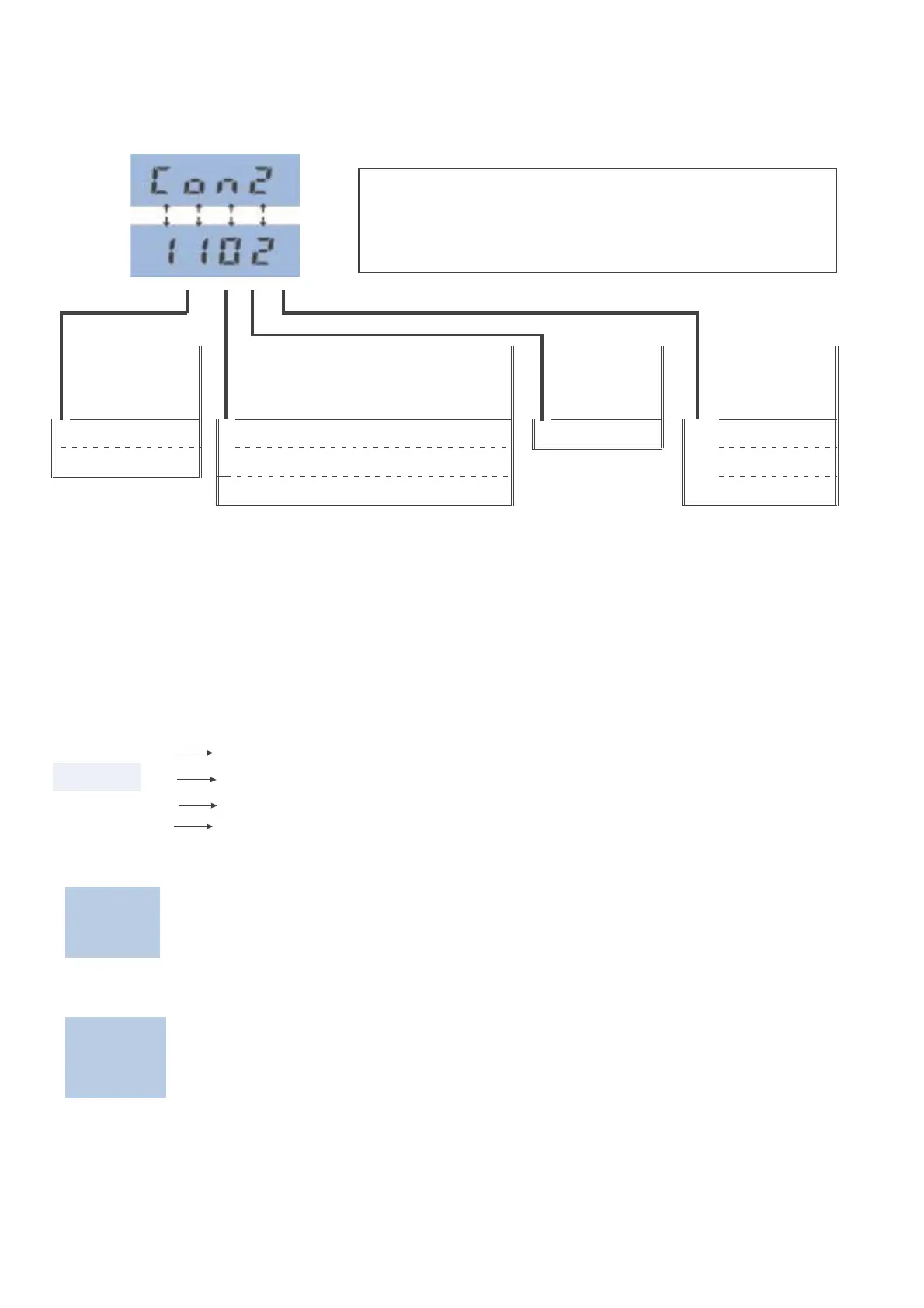

Structure of configuration word 2 ( Con2):
Pressing keys I and D changes the value of
Con2 (the longer the faster). When pressing M
the change is effective and the configuration level
is left.
Mains
frequency
suppression
Characterization
Computing
function
Output
signal Ü
0
50Hz
0
not possible
0
not possible
0
0...20mA
1
60Hz
1
with scaling *
1
4...20mA
2
with customized linearization Ö
2
0...10V
Ü The two output signals (current and voltage) are available simultaneously. This setting is used for
selecting the output type, which shall be calibrated exactly. For using only the voltage output signal,
however, an additional link across terminal 20 and 21 (current output) must be fitted.
At 4...20mA the voltage output is 2...10V.
*r section Examples.
Ör section Linearization parameters.
Adjusting the decimal point
0
1234
dP=
1
123.4
2
12.34
3
1.234
Permit access to input signal correction
With Corr = 1 access to input signal correction (r page 15) is given.
After input signal correction is being performed, access shoud be blocked. With
Corr = 0 access is blocked. A possibly made input signal correction
stays in operation.
Entering identification number
A change of parameters /configuration can be prevented by means of a
pass figure (values from : -999 ...9999). This passfigure must be set
prior entry of parameter level
2 . This function can be switched off:
press key D until display reach ‘----‘.
Leaving the configuration level (r page 7 )
+
Leaving the configuration level is not possible via timeout!
9408-800-25001 9
Corr
dPAS
