Separate Operation of the Display Unit
G Turn the balance on its side and lay it on a padded surface to avoid damage to the
weighing system
G Use a screwdriver to remove the 2 screws from the display unit retainer
G Remove the display unit
> Cable lengths
– LA balances with a weighing capacity <12 kg: 55 cm
– LA balances with a weighing capacity >12 kg: 80 cm
$ See the chapter entitled “Accessories” for information on longer cables
$ If you wish to use a longer cable, it must be installed by an authorized Sartorius service
technician
Options for Mounting the Display Unit for LA Balances with a Weighing Capacity
>16 kg

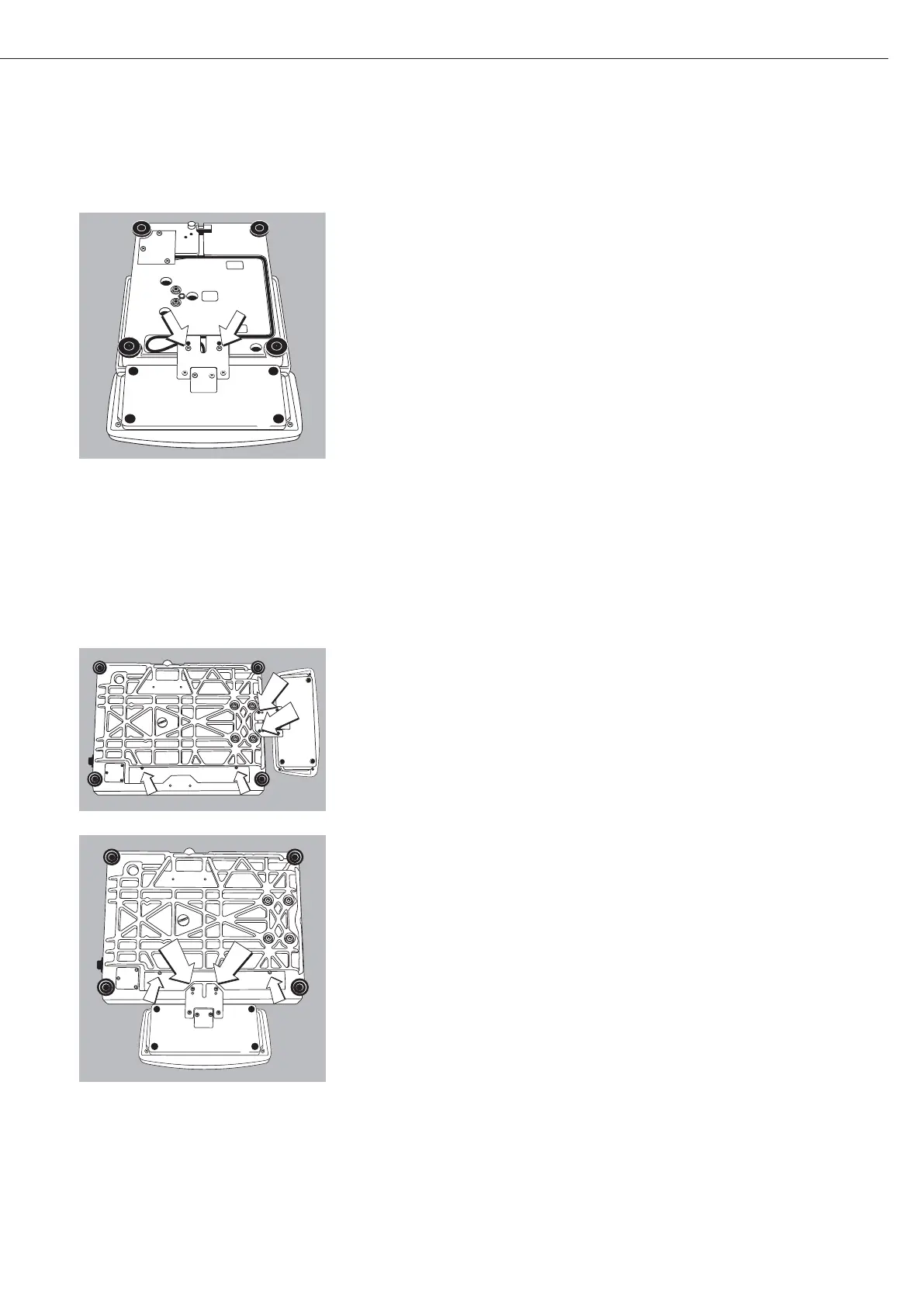

The display unit can be mounted as follows:
– on the short side of the weighing cell (factory mounting)
– on the back (long side) of the of the weighing cell
G Turn the weighing cell over
G Remove the fastening screws from the display unit retainer
G Remove the fastening screws from the plate that covers the cable raceway (channel) and
remove the plate
G Fasten the display retainer onto the back of the weighing cell with the 2 Allen screws
G Thread the cable through the raceway and replace the cover plate
