Sartorius LMA100P User Manual

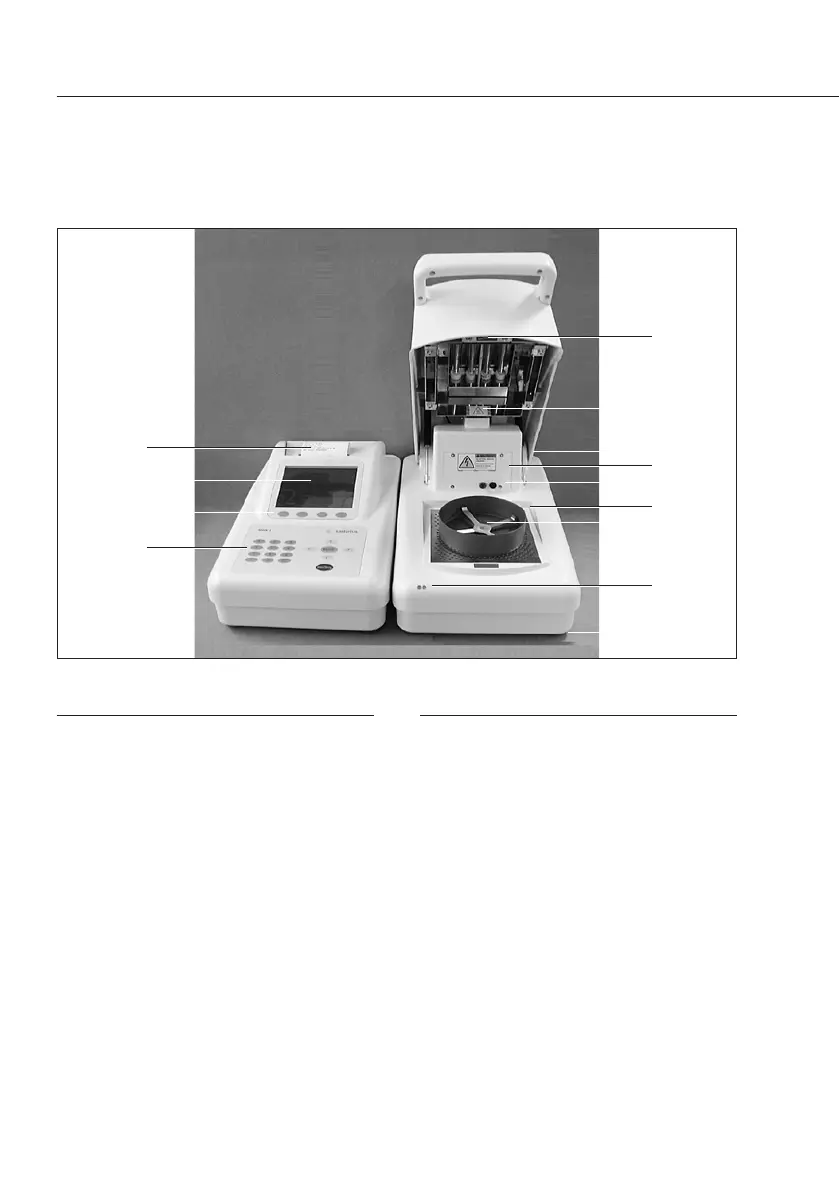

General Views of the Moisture Analyzer
No. Designation
Heater Module
1 Pan shield
2 Pan support
3 Cylindrical quartz heating tubes
4 RTD temperature sensor
5 Heater adjustment tool connector
6 LED status lights
7 Service panel, heaters & RTD
temperature sensor
8 Level vial
9 Adjustable leveling feet
10 Inter-module cable receptacle
11 Main power switch
12 Main cord receptacle
13 Fuse 1 (250 V~5A T)
14 Fuse 2 (250 V~5A T)
15 Module power cable receptacle
No. Designation
Control Module
16 Only model LMA100P: Printer cavity
17 VGA display
18 Soft keys and display overlay
19 Keypad
20 Inter-module cable receptacle
21 Module power cable receptacle
22 Ethernet socket: only for Sartorius
Service
23 USB socket: only for Sartorius
Service
Cables and Power cord
24 Serial connector
25 Inter-module cable
27 Main power cord
10
16
17
18
19
4
3
8
7
5
1
2
6
9
