16
RC-B-06.TIF

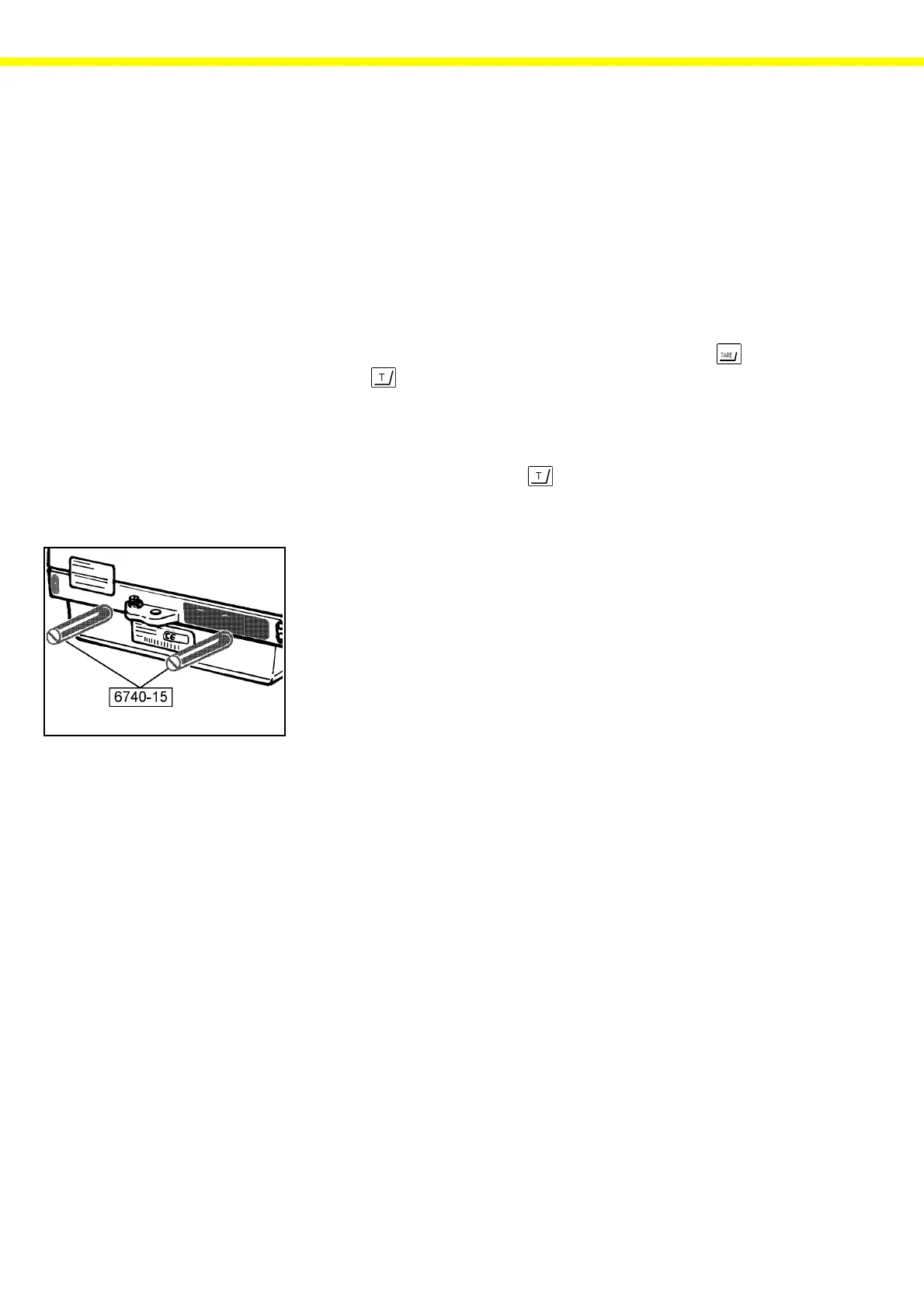

– Please adjust only the side with the largest error. In our example it is
position 3, consequently you have to adjust the left off-center load screw.
– Please adjust the screws in small steps. After each change, check the off-
center loading positions 1, 2 and 3 and, if necessary, readjust one of the
off-center load screws.
– When the off-center load at the sides (positions 2 and 3) is in tolerance,
adjust the off-center load tolerances at the front and back (positions 4
and 5).
– Place the off-center load test weight in position 1 on the weighing pan,
close the draft shield, and tare the balance by pressing the key (MC)
or the key (RC).
– Place the test weight in each of the positions 4 - 5 (in sequence). Close
the draft shield and write down the values displayed with plus/minus sign
when the readout is stable.
Example (RC 210 P): Pos. 1 0.00000 g
Pos. 4 + 0.00040 g
Pos. 5 – 0.00035 g
– Adjust both sides uniformly. In other words, change the adjustment of both
off-load screws in the equal steps by turning them in the same direction.
– Change the screw adjustment in small steps. Check the off-center load
positions 1, 4 and 5 and, if necessary, change the adjustment of the off-
center load screws.
– If the indicated tolerance is reached, please recheck the off-center load in
position 5.
– After finishing the off-center load adjustment, place the caps (306) back
over the holes on the rear panel of the balance.
– Turn on the auto-zero function in the balance operating menu
(Code 1 6 1).
– If required, set the filling menu code (Code 1 2 2).
