SARTORIUS RC/MC-Balances
33

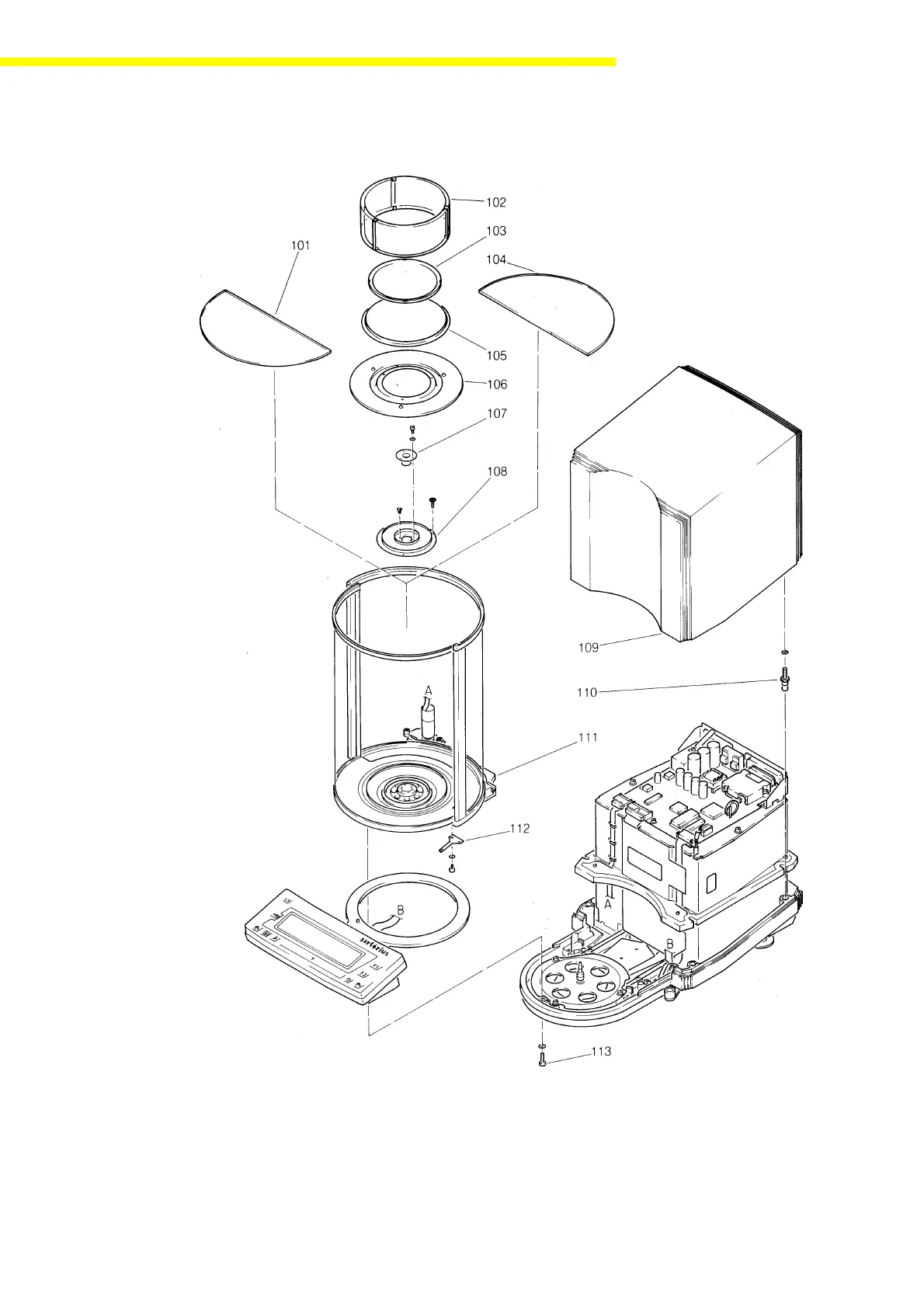

Exploded-View Diagram 1
Index Designation Index Designation
101 Draft shield cover plate, interior
102 Glass cylinder of the draft shield 108 Centering ring
103 Weighing pan 109 Top part of the housing
104 Glass shield cover plate, exterior 110 Fastening bolt (for housing)
105 Shield ring 111 Draft shield (complete)
106 Shield disk 112 Leaf spring (display unit)
107 Guide bushing 113 Fastening screw (for draft shield)
