Exchanging the Draft Shield

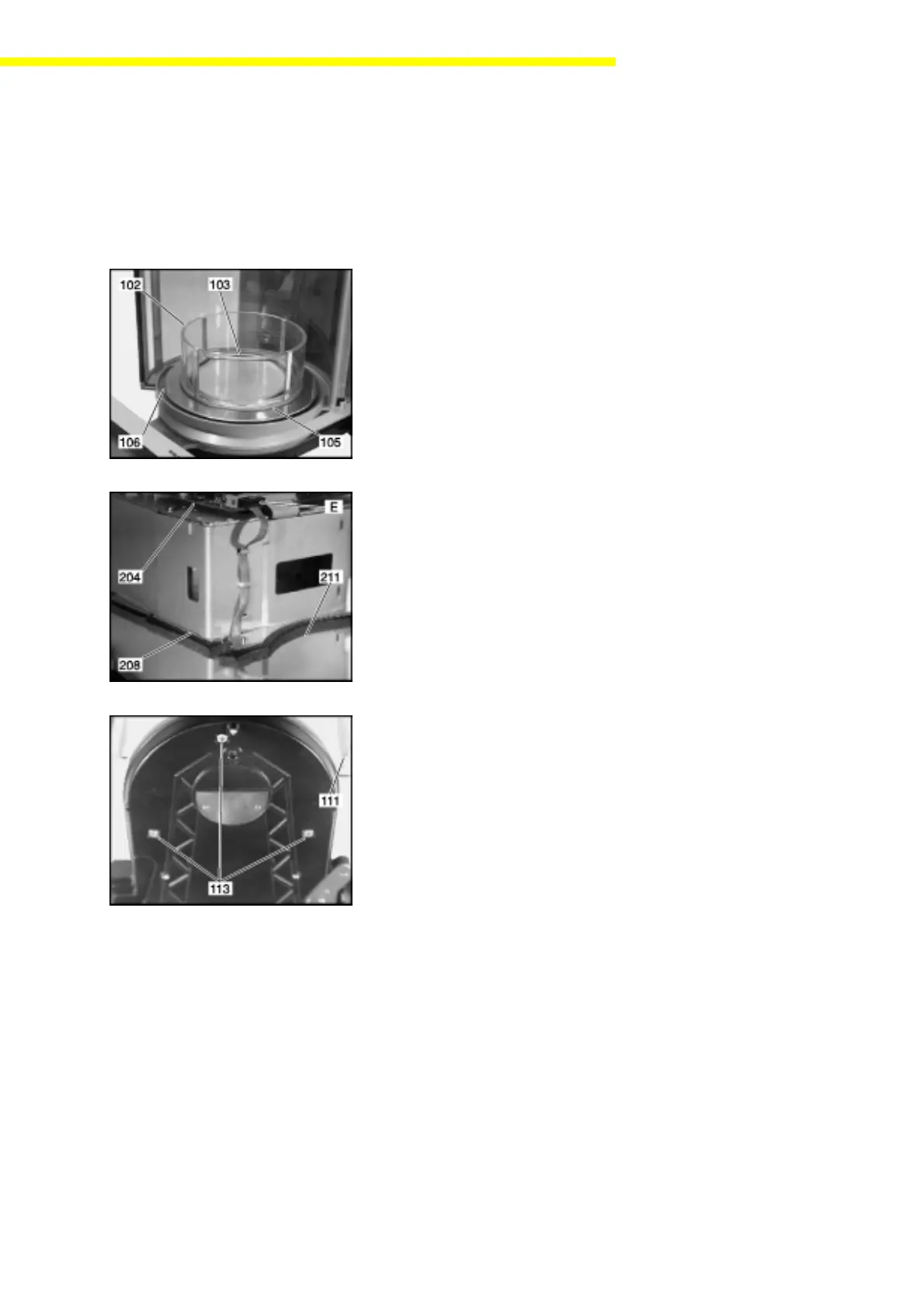

Removing the Draft Shield
– Disconnect the balance from AC power.
– Remove the draft shield cover(s) (101/104) from the draft shield (111)
and set it (them) aside.
– Afterwards, remove the glass cylinder (102), along with the weighing pan
(103), the shield ring (105) and the shield disk (106) from the weighing
cell.
– Open the balance housing (see page 23).
– Remove plug (E) for the draft shield drive from the digital PCB (204) and
the cables from the retainers on the enclosure frame (208 / 211).
– Remove the fastening screws (113) on the draft shield (111) from the base
plate.
– Now lift off the old draft shield (111).
Caution! The display unit is now exposed and can tip over from the front!
