2.5.5 3 Opto inputs

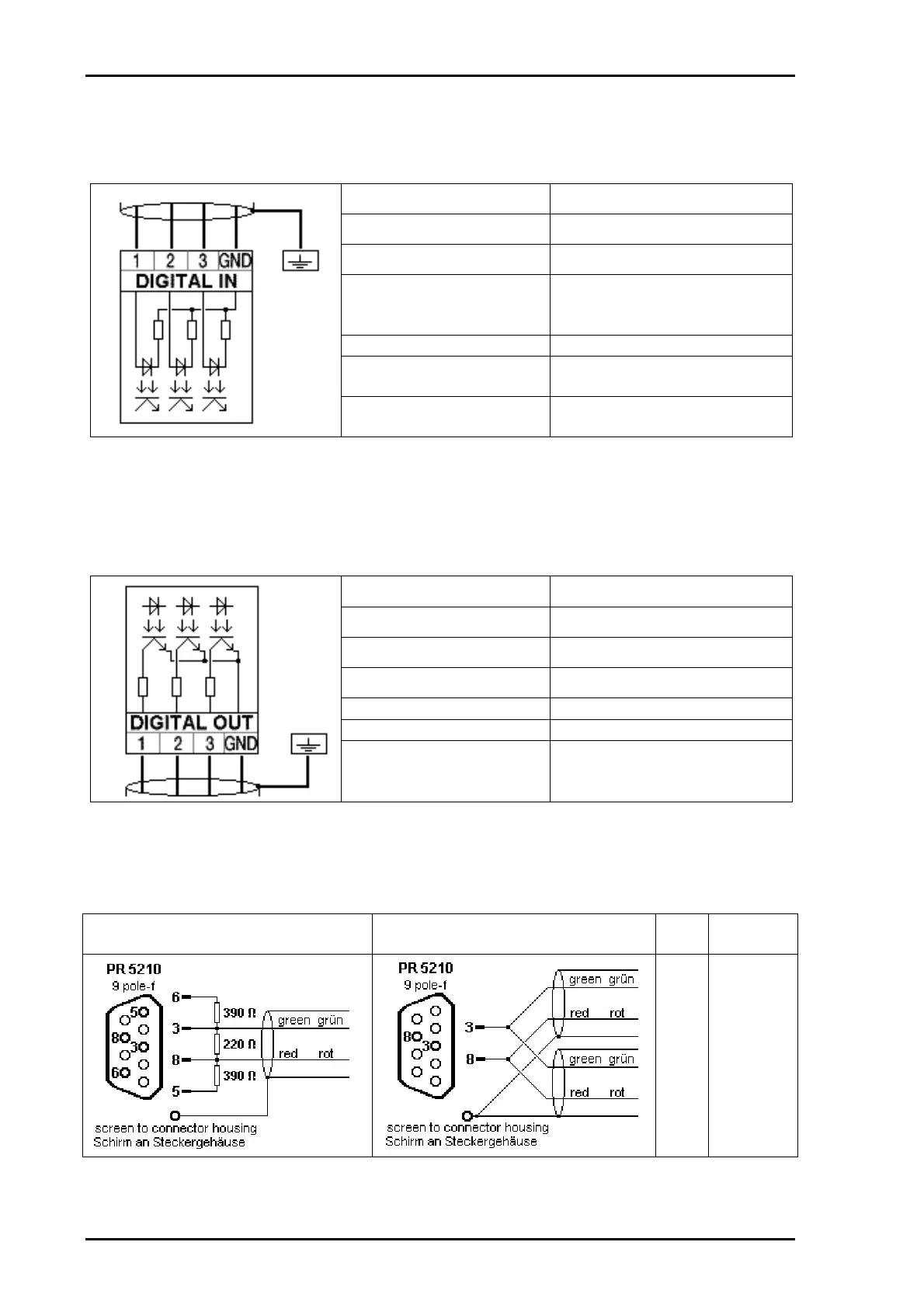

The optocoupler inputs have one common potential (GND) for the input group, separated from the
common potential of the output group.
Connecting method:
4-pin plug-in terminal block
Number of inputs:
3
Input signal:
External supply required
10 ... 30 VDC for 'high'
0 ... 5 VDC for 'low'
Input voltage
Max. 30 VDC
Input current:
< 11 mA @ 24 VDC
< 5 mA @ 12 VDC
Potential isolation:
Yes, 3 inputs have got 1
common minus potential
2.5.6 3 Opto outputs
The optocoupler outputs have one common potential (GND) of the output group, separated from the
common potential of the input group.
Connecting method:
4-pin plug-in terminal block
Number of outputs:
3
Output signal:
External supply required
Output current:
Max. 30 mA
Output voltage:
Max. switching voltage: 30 V
Potential isolation:
Yes, 3 outputs have got 1
common minus potential
2.5.7 Profibus (PR 5210/00 and PR 5210/11 only)
The profibus connection is done via the 9 pole female connector on the front.
Transmitter is the only
or the last slave on the bus
Transmitter is not the only /
not the last slave on the bus
PIN Signal
3
4
5
6
8
RxD/TxD-P
CNTR-P
DGND
VP
RxD/TxD-N
