PR 5210 Transmitter Series PR 5210 Operating Manual
10 Sartorius
2.2 Transmitter survey
• EC Type approval for NAWI: PTB D03-09-025
• Accuracy 6000 e @ 6 samples/sec
• Internal resolution 4.8 Mio counts
• Linearity < 0.002% (typ.)
• Sample rate selectable: 6 ... 100/sec
• Digital filter with selectable characteristic
• Interfaces are galvanically isolated
• 3 pairs of programmable limits
• 24 VDC Supply voltage
• Connections are made by 7 plug-in terminal blocks, except Profibus
and RS 232 (RJ-12) connector
• The unit is suitable for snap-in mounting (rail)
• 5 status LEDs for power, communication, error detection
Calibration and configuration of the instrument are menu-guided via
PC or via Profibus commands.
• Calibration by means of weights or by entry of the mV/V values
without additional calculations
• Analog Output 0/4 ... 20 mA, configurable for gross / net
(PR 5210/00 and PR 5210/10 only)
• Analog Output value defined by Profibus (PR 5210/00 only)
• Digital Input 3 channels, galvanically isolated
• Digital Output 3 channels, galvanically isolated
Communication protocols:
• RS 232 for PC
• RS 485/ RS 422 for remote display
• Profibus-DP (PR 5210/00 and PR 5210/11 only)

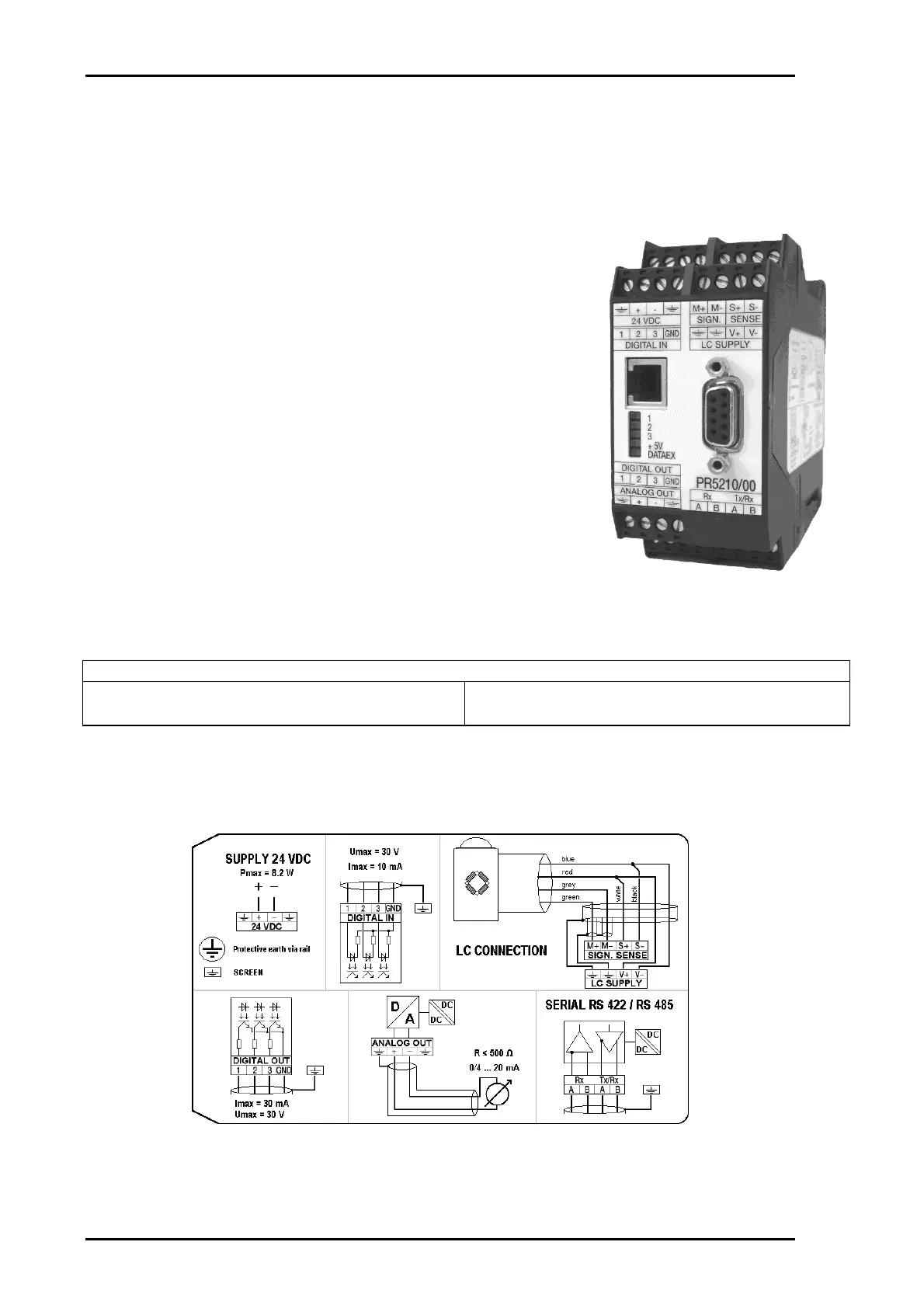

2.3 Label on the housing
The wiring principle is located at the side of the housing:
