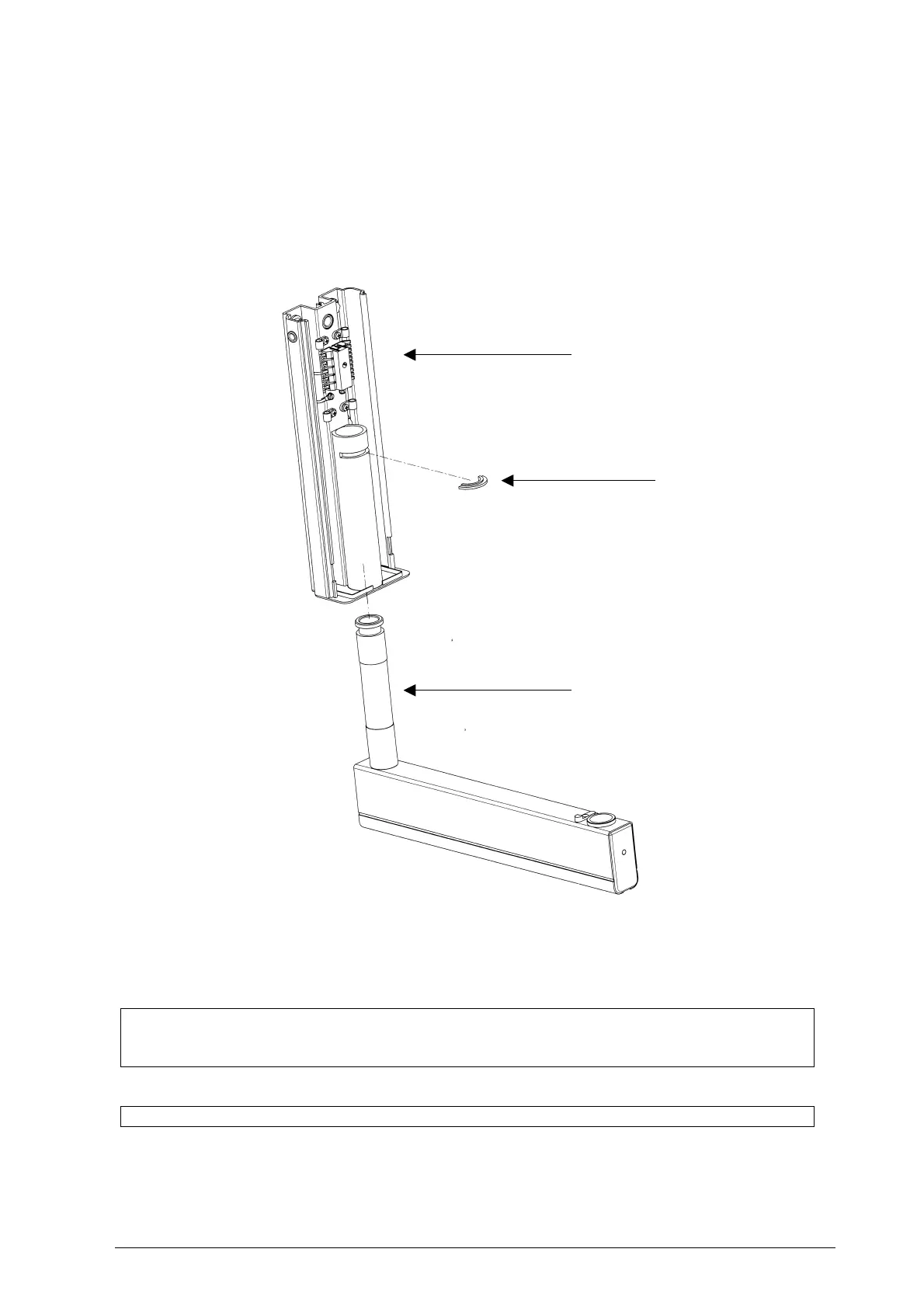

After fixing the plate to the wall, assemble the bracket, using the following procedure (Fig. 8):
1. Take the bracket out of the packaging (refer to Fig. 5)
2.
Insert the bracket pin into the wall plate (upwards)
3.
Insert the supporting rest
Fig. 8
PLEASE NOTE
Prevent all foreign matter (ground, dust, cement, etc. ) from settling on the pin seat.
The pin must slide freely in its seat. If required, thoroughly clean and lubricate with “molikote
D" lubricant.
PLEASE NOTE
Carefully check that the bracket is parallel to the floor, using a water level.
