Satelec X-Mind DC - System Start-Up Procedure

X
X
-
-
M
M
i
i
n
n
d
d
®
®
D
D
C
C
3
3
9
9

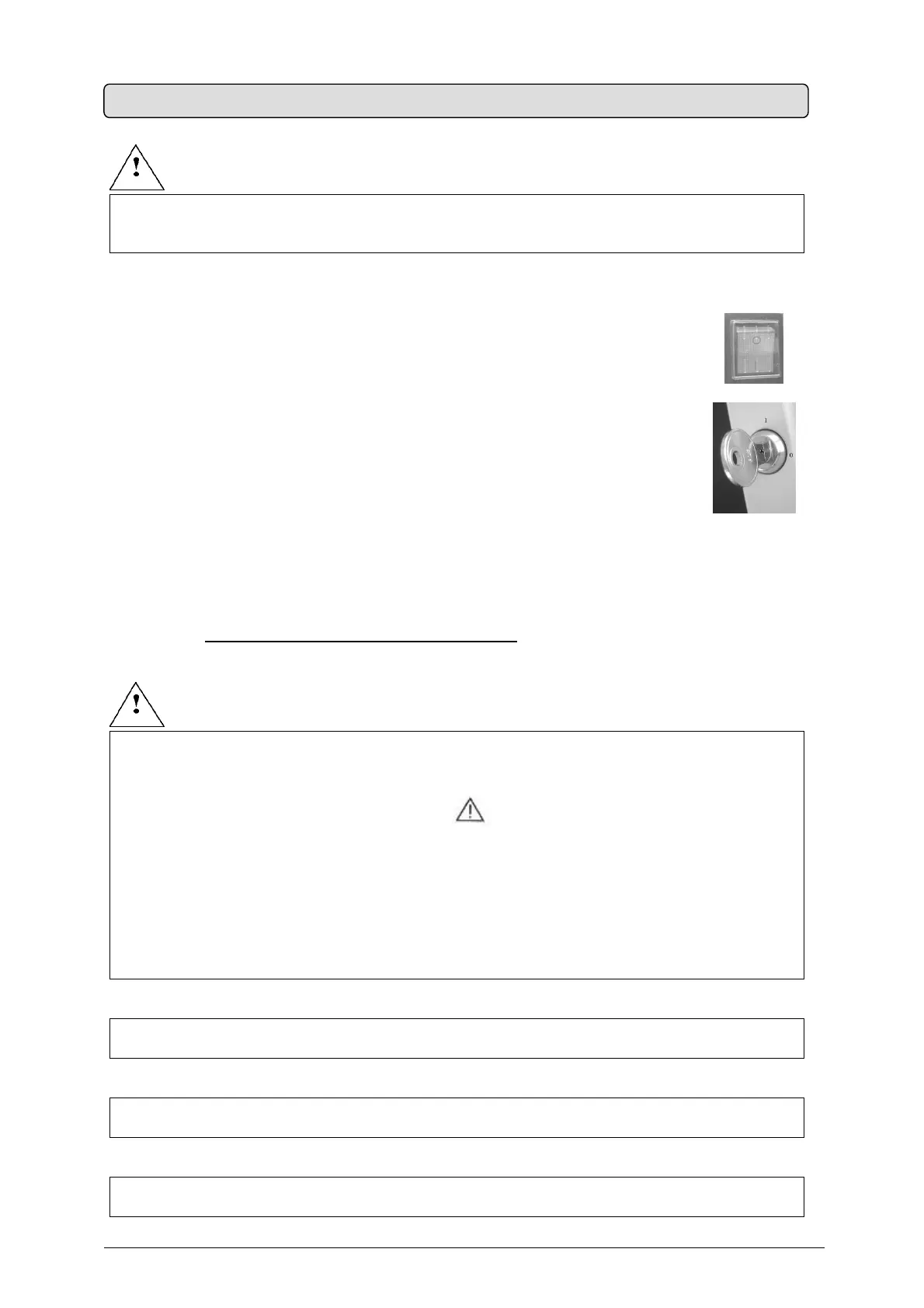

CAUTION
When all connections are completed, the installer must check the system’s electrical and
operating safety.
For further information, see the USER'S MANUAL.
TURN ON THE TIMER to power up the X-ray system
a. Bring the "MAIN SWITCH" located on the upper part of the timer to the
“I” position (ON)
b. Bring the “’KEY SWITCH” to the “I” position (ON)

the green light turns on indicating that the system is powered up

the LEDs of the set parameters automatically light up

the exposure time is shown on the display
c. THE X-RAY SYSTEM IS NOW READY FOR USE
WARNING
If an error is detected when the system is turned on, the anomaly is indicated as follows:
•
an intermittent beep sounds
•
the MALFUNCTION INDICATOR LED
blinks intermittently
The error code (E ….) appears on the display
(refer to § 13 “ERROR MESSAGES”)
•
All control panel functions are disabled
In this event, turn off the timer and then turn it back on.
If the error should recur, call the “Support Department”.
PLEASE NOTE
The exposure time and parameters displayed are the last which to be set before the timer was
turned off.
PLEASE NOTE
If installed, the RX signal lamp for external use, corresponding to the selected tube head, turns
on.
PLEASE NOTE
If the timer remains inactive for a few minutes, it switches to the stand-by mode.
Press any control panel key to restore it to operating mode.
9. START UP
