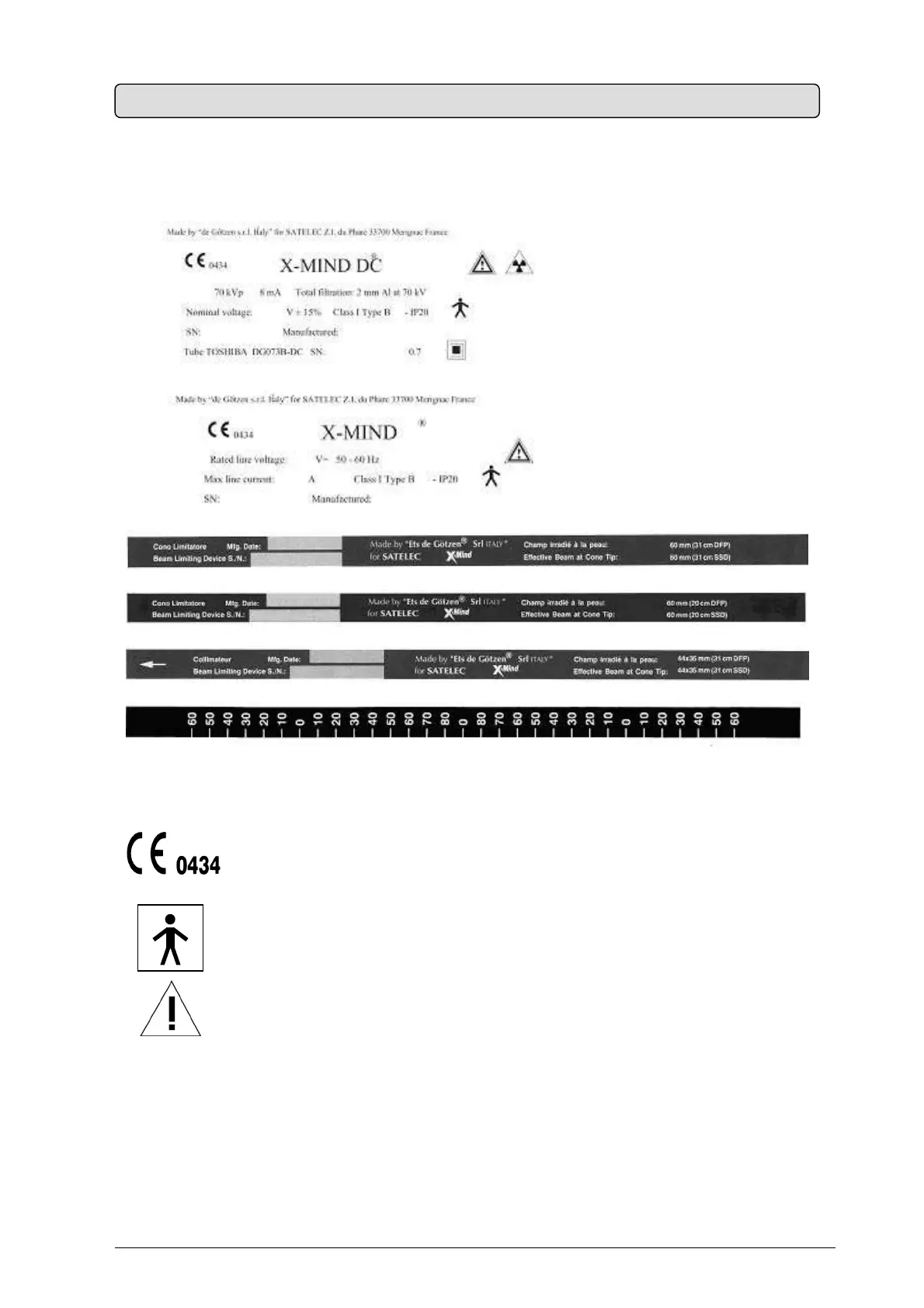

The identification tags on the tubehead, on the timer and on the cone indicate the model name,
the serial number, the manufacturing date and the symbols of the main technical
characteristics.
ID TAG OF THE
“X-Mind
DC”
TUBEHEAD
ID TAG OF THE
“X-Mind
DC”
TIMER
ID TAG OF THE LONG 12” CONE
ID TAG OF THE SHORT 8” CONE
ID TAG OF THE RECTANGULAR CONE
GRADUATED SCALE TAG ON TUBEHEAD
Pictograms used
This symbol guarantees that the X-ray system complies with the regulations
contained in the European Directive EEC 93/42 regarding Medical Devices
The degree of protection against direct and indirect electric contacts is B type
Refer to Manual's instructions
N
“NEUTRAL" power supply wire
L
“PHASE" power supply wire
T
Ground cable
2. IDENTIFICATION TAGS
