Satelec X-Mind DC - Bracket Assembly

X
X
-
-
M
M
i
i
n
n
d
d
®
®
D
D
C
C
1
1
7
7
PLEASE NOTE
The brackets come in the following lengths: 41 cm - 82,5 cm - 110 cm

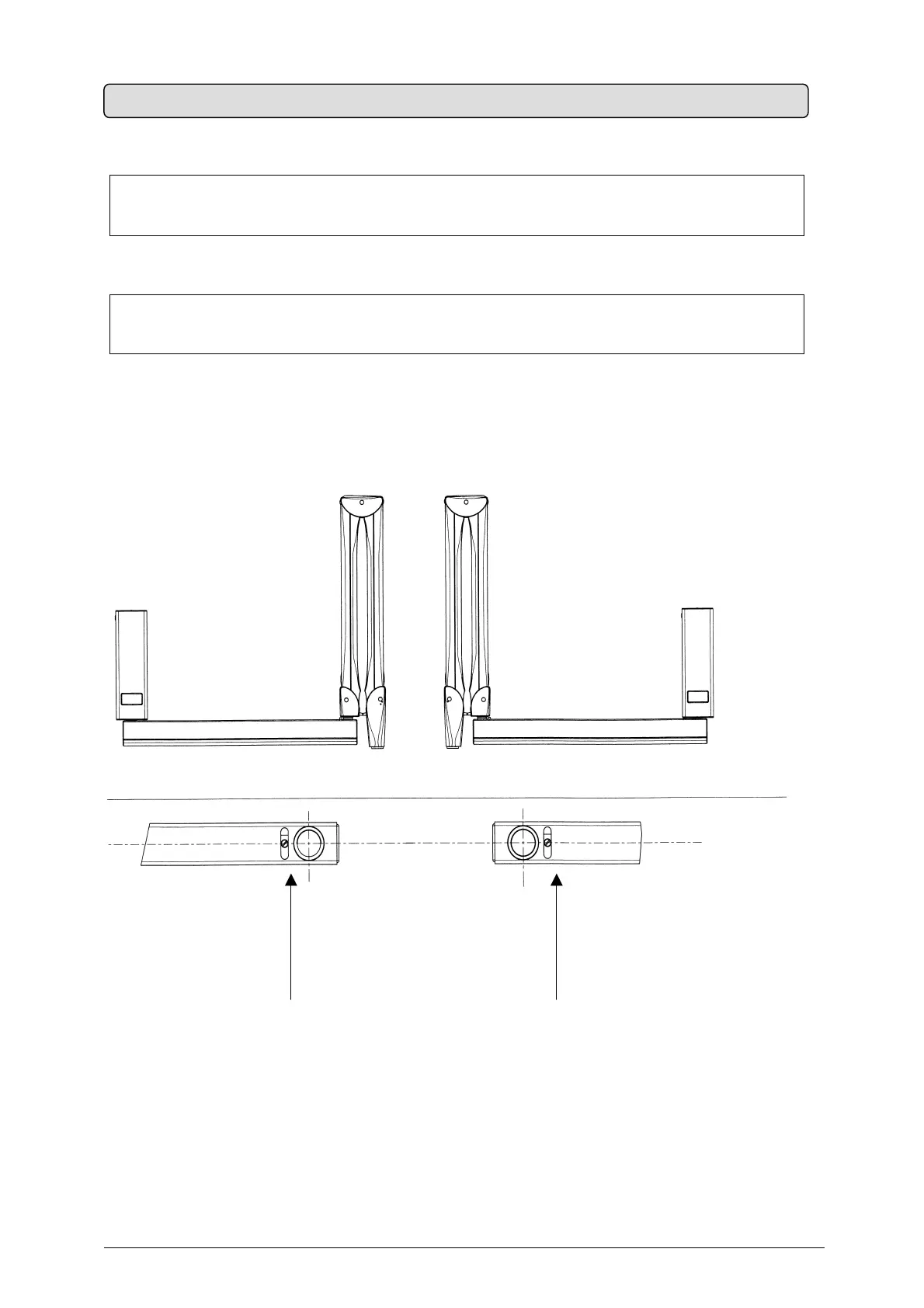

The 82.5 cm and 110 cm brackets are provided with a stop key  (Fig. 7A and 7B) to prevent
the electrical cable from twisting.
PLEASE NOTE
Generally, the stop key is installed so that the equipment position at rest is on the right side,
viewed from the front of the wall plate (Fig. 7A).
Should the position at rest be on the left side, the stop key must be rotated by 180° (Fig. 7B).
5.3 ASSEMBLING THE BRACKET
Fig. 7A
Fi
g
. 7
B
 
WALL
