ASSEMBLY INSTRUCTIONS
1. Remove the tubehead from the packaging (refer to Fig. 5)
2. Check that all the rating data match the power supply voltage

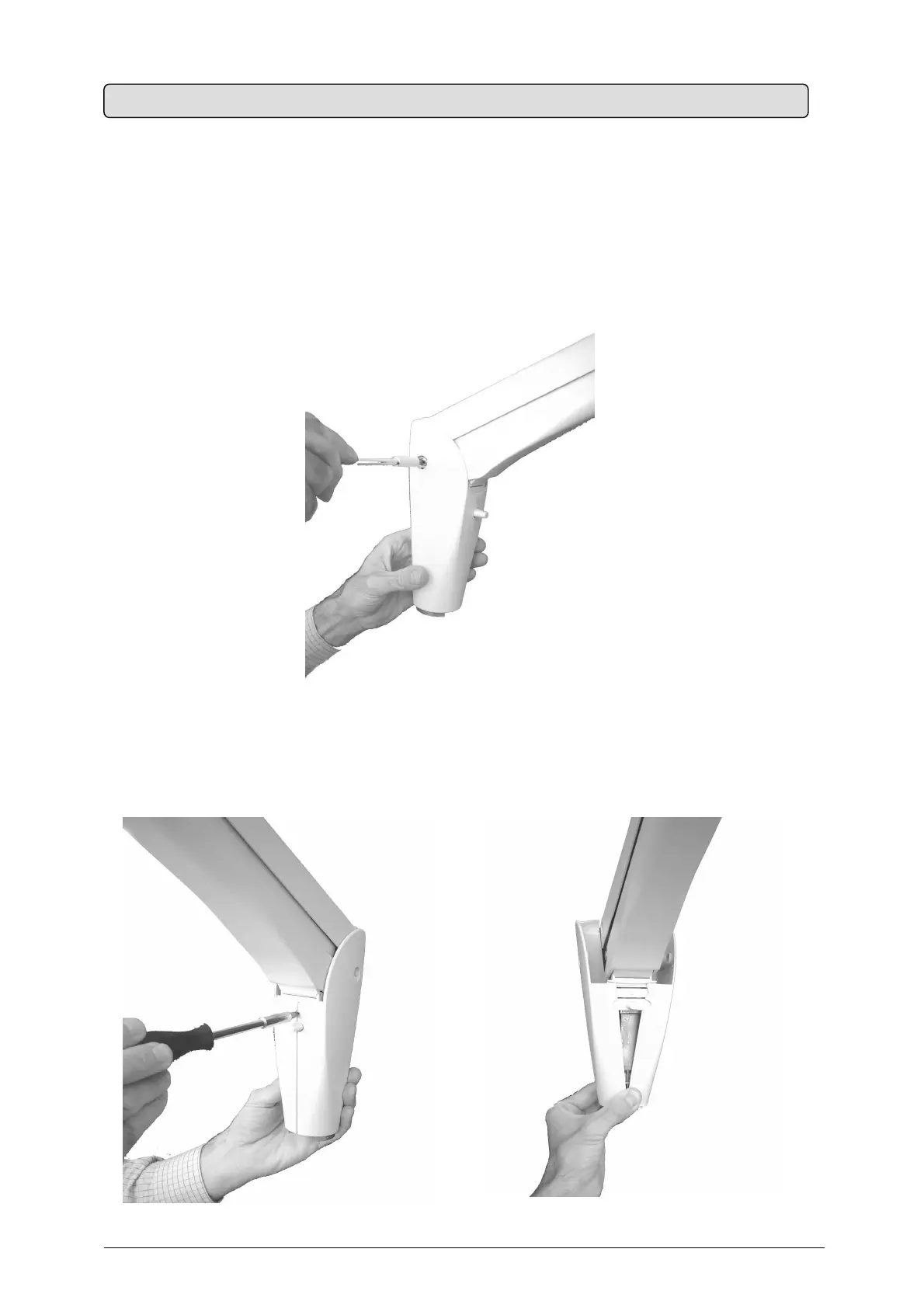

3. Remove both guards from the pantograph-type arm by loosening the appropriate screws
(Fig. 12)
Fig. 12
4. Using a bit, detach the front coupling device (Fig. 13A)
5. Remove both guards (Fig. 13B)
Fig. 13A Fig. 13B
5.6 ASSEMBLING THE TUBEHEAD
