2. Proceed with the electrical connection as shown in Fig. 11

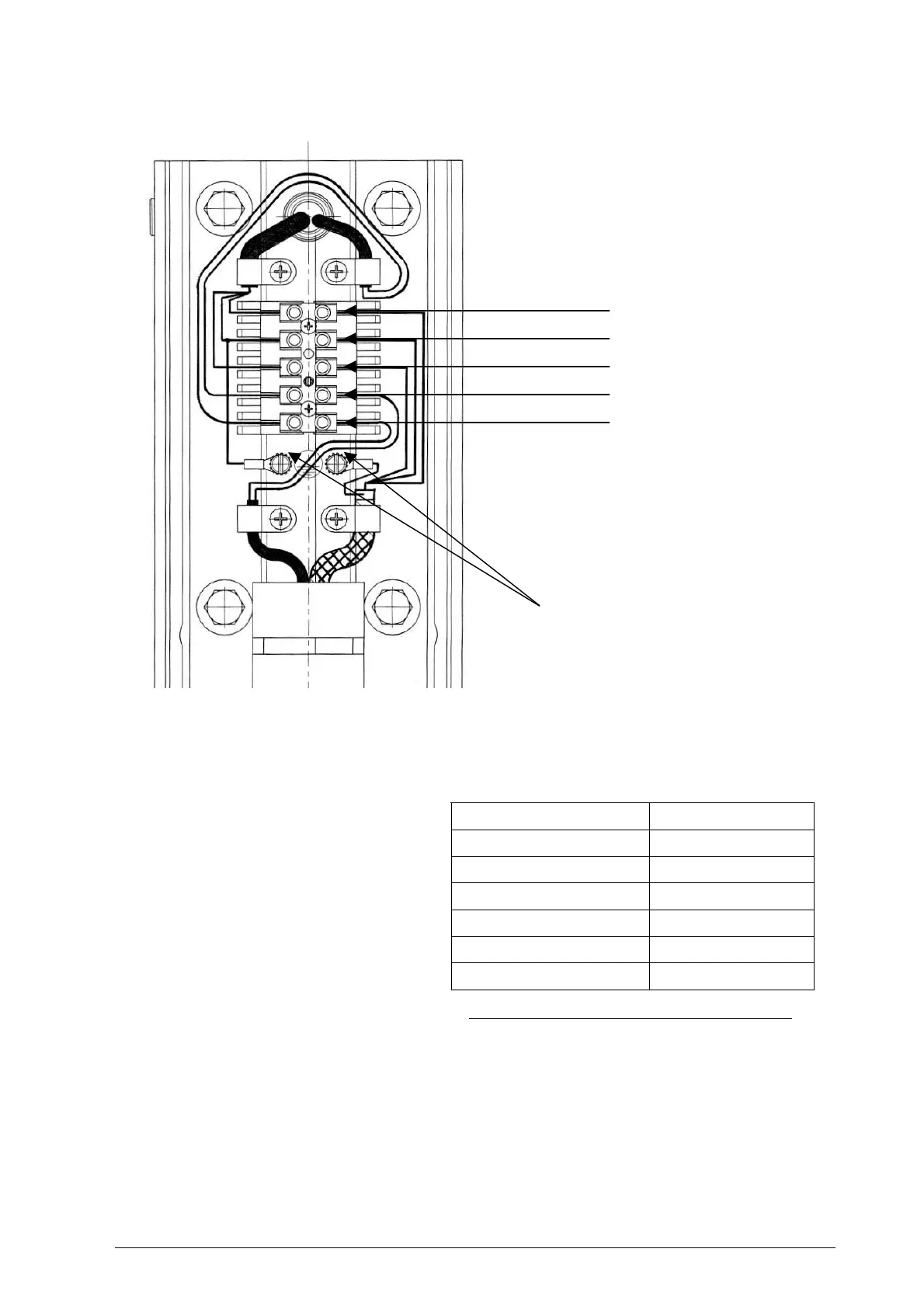

Fig. 11
TERMINAL BOARD CONNECTION DIAGRAM
BROWN L (line)
YELLOW GREEN T (ground)
BLUE N (neutral)
BLACK COMMUNICATIONS
RED COMMUNICATIONS
YELLOW GREEN T (ground)
YELLOW GREEN T (ground)
THE COMMUNICATIONS CABLES ARE NOT POLARIZED
3.
Connect the pantograph cable shield to the grounding potential
4.
Connect the wall plate to the grounding potential
5. Clamp the cables with the cable clamps provided
6.
Reassemble the terminal board cover (refer to Fig. 10)
IMPORTANT !
