CAUTION
The pantograph-type arm must be adjusted only when the tubehead is assembled .
WARNING
To prevent damage to the internal mechanism while making adjustments and executing the
balancing tests, the adjustment key must not be left in place.
WARNING
The key provided must be carefully stored.
PLEASE NOTE
To reach the “X” adjustment screw “ARM A” must be put in vertical position.
To reach the “Y” adjustment screw “ARM B” must be put in horizontal position.

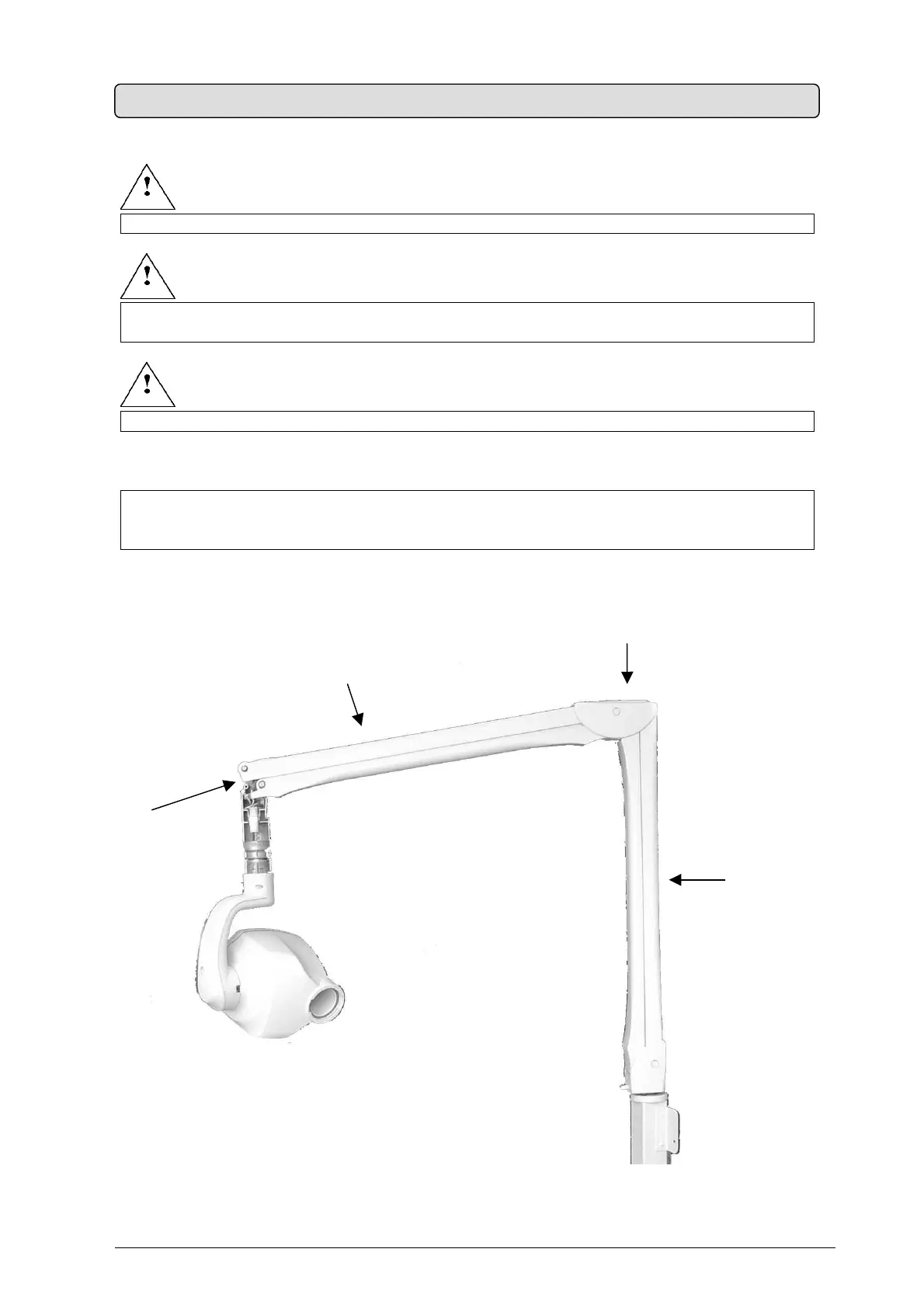

The adjustment key provided can be inserted only under the above conditions (Fig. 17)
5.7 BALANCING THE PANTOGRAPH-TYPE ARM
ARM B
Y
ARM A
Fig. 17
X
