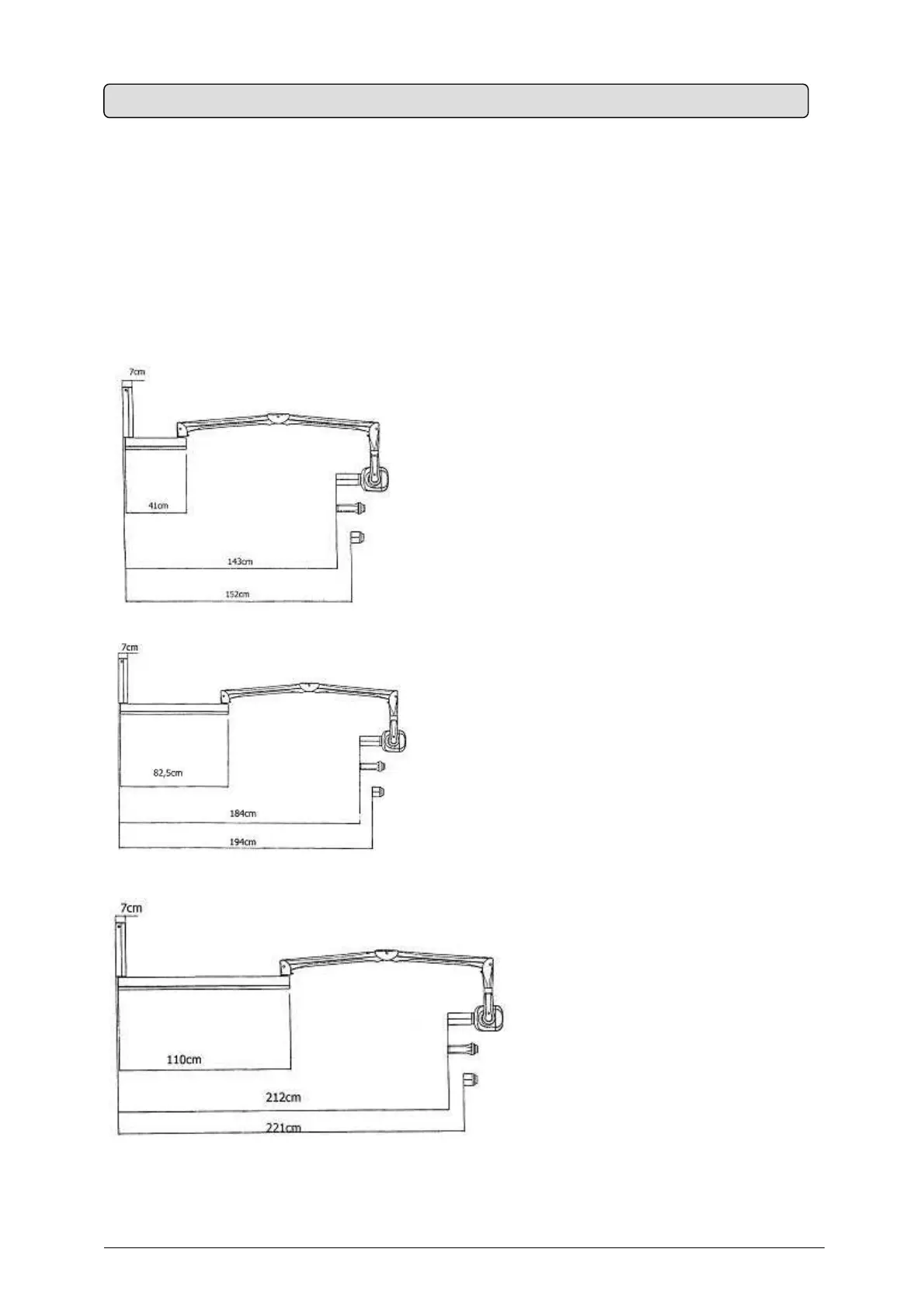

Fig. 1A, 1B, 1C give the overall dimensions of the possible supply conditions:

SHORT BRACKET (optional) length 41 cm - 16.2”

STANDARD BRACKET length 82,5 cm - 32.5”

LONG BRACKET (optional) length 110 cm - 43.5”
SHORT BRACKET 41 cm Fig. 1A
STANDARD BRACKET 82.5 cm Fig. 1B
LONG BRACKET 110 cm Fig. 1C
