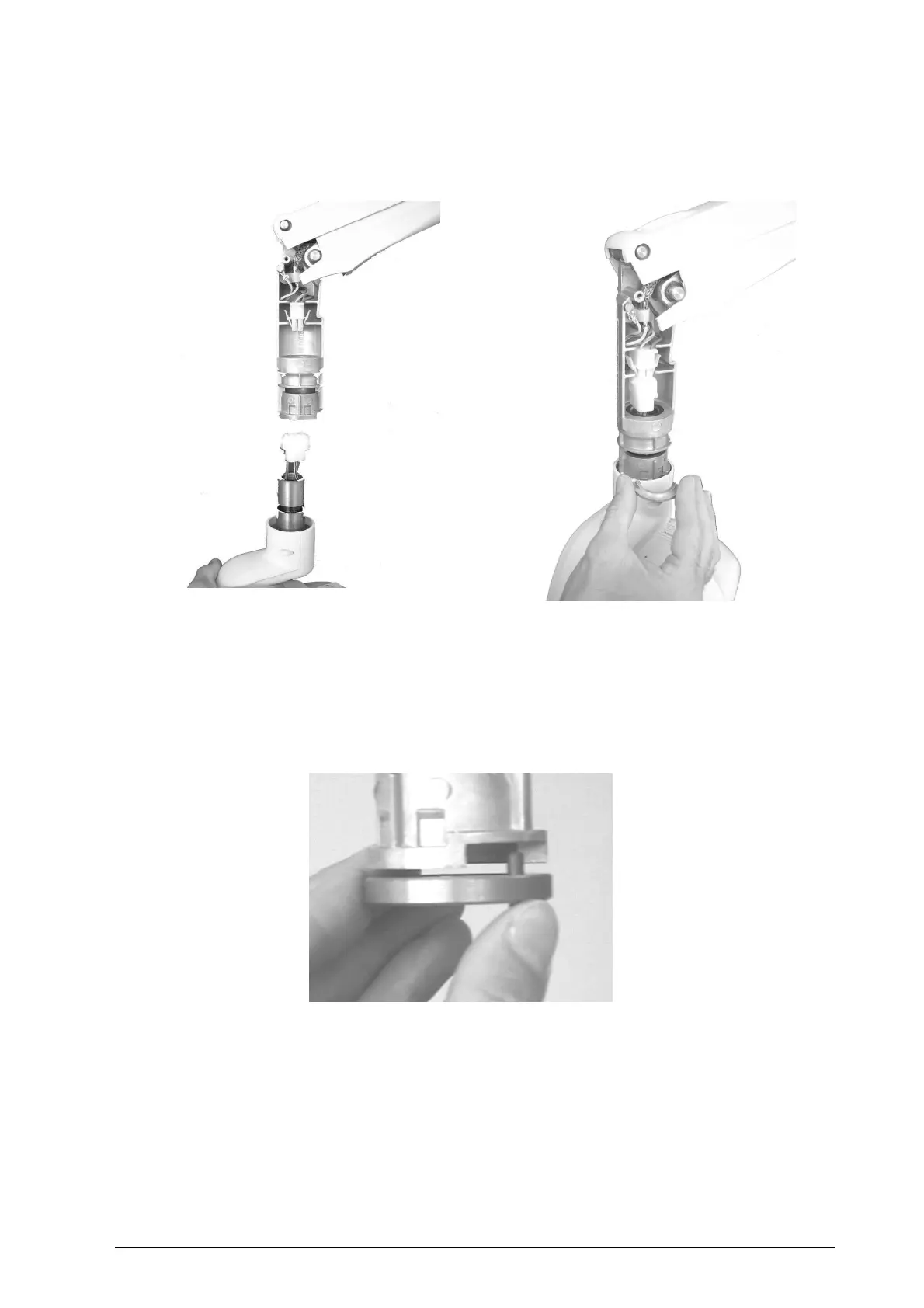

6. Insert the tubehead pin into the pantograph head (Fig. 14A) and insert the
support (Fig. 14B)
Fig. 14A Fig. 14B
7. Check that during insertion, the pin of the rotation prevention device is correctly
inserted into the seat located on the pantograph head (Fig. 15)
Fig. 15
