Section 5: Loading Carbon Ribbon
CG2 Series Quick Guide Page 5-3

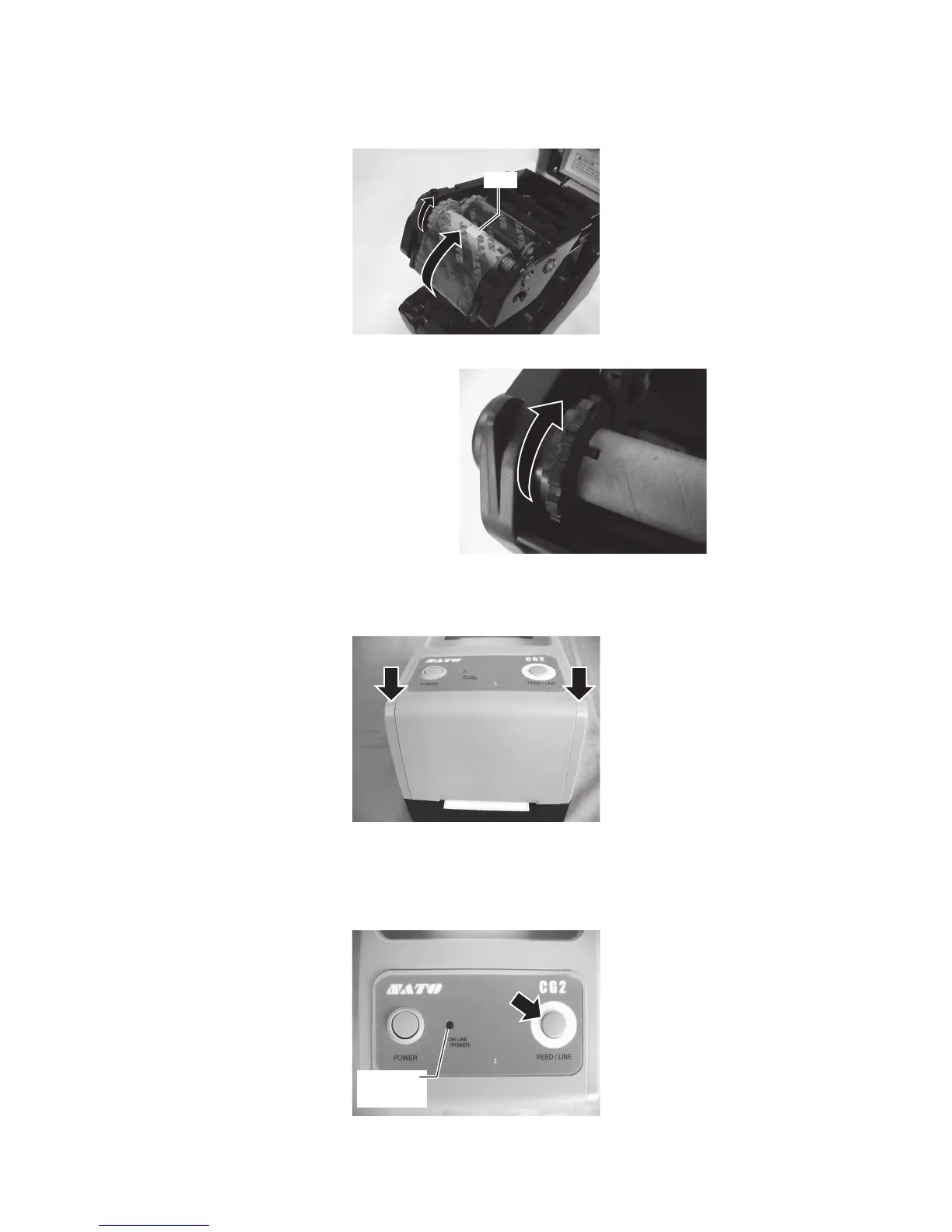

5. Pass the carbon ribbon from the ribbon supply unit beneath the print head to the ribbon windup unit. Affix
the carbon ribbon to the ribbon core using tape, etc., and wind it up several times in the direction shown by
the turn arrow.
6. Close the top cover. Press the top cover from above in the direction of the arrows until it clicks into posi-
tion.r
7. When the printer is offline, the ON LINE (POWER) lamp blinks. Press the FEED/LINE button (1). The
printer is online and the ON LINE (POWER) lamp is on. When the printer is ready, press the FEED/LINE
button to output the top part of the paper.
tape
Wind up several times in the
direction shown by the turn arrow.
Wind up several times in the
direction shown by the turn arrow.
ON LINE
(POWER)
