Currency Discrimination Fitness Sorter SB - 2000 Service Manual
13

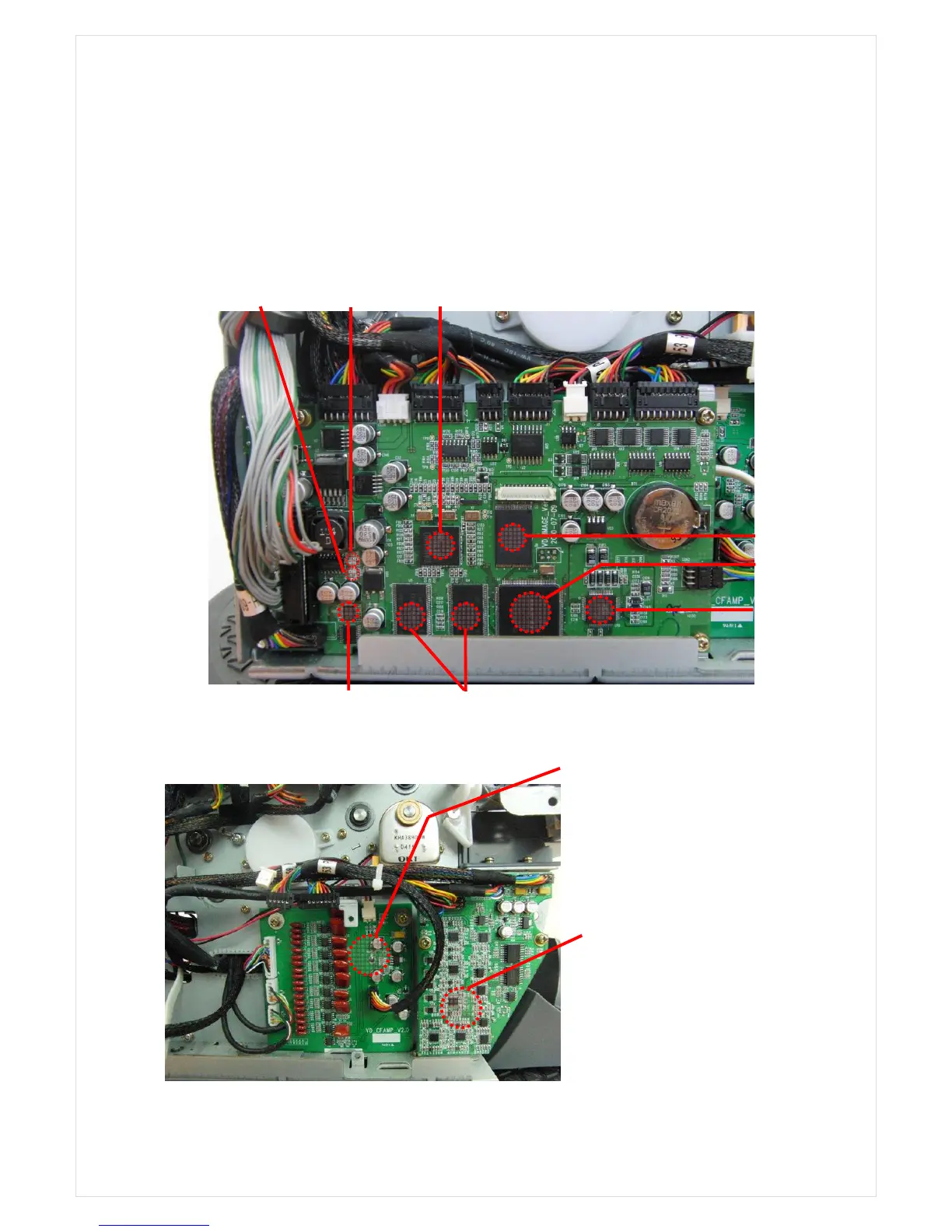

Image Board
The part controlling on Image board is as follows.
Control & Processing
◈ Counterfeit Detection: UV, MR Array, MRS L/R, IR
◈ Fitness : CIS, CAP(Tape)
◈ Output Port: Serial, Parallel, USB, RJ11 (Customer Display)
Amp. Boards
CPU
Processor
PLD
Flash
SDRAM
RS233C Driver
Blinking
Power LED
CF Amp. Board
Description of CF Amp. Board
Input : MR Array(6Chanels), MRS L/R
Role & Output : Amplifying MR signal and
transferring it to the Image Board
CAP Amp. Board
Description of CAP Board
Amplifying the CAP sensor signal and
transferring it to the Image Board.
