2-4. Function of each Board
Main Board
The part controlling on MAIN board is as follows.
Control & Processing
◈ Operation Panel: LCD Displaying, Inputting by Key
◈ Sensors: Hopper, RP1, RP2, JP, SP, Reject, Stacker, Front Cover, Main Encoder,
Feed Encoder, CIS (Recognition & Fitness)
◈ Mechanism Control: Main Motor, Sub Motor (Spinning the Stacker Wings), Feed
Motor, Solenoid, Cooling Fan, Main Encoder, Feed Encoder

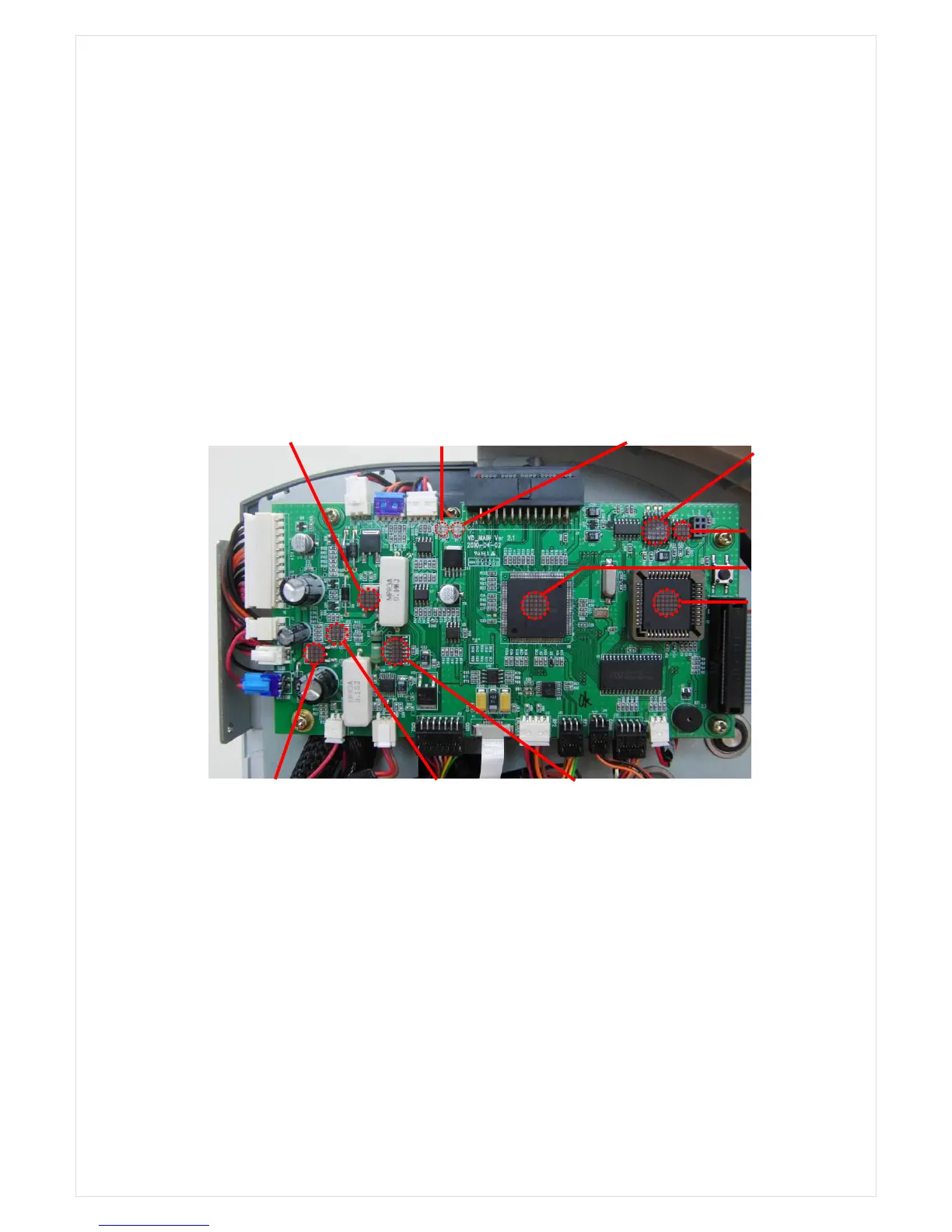

Important parts on Main Board
ADC
