SBM SB-2000 - Gap between Separator and ADF Roller

Currency Discrimination Fitness Sorter SB - 2000 Service Manual
68

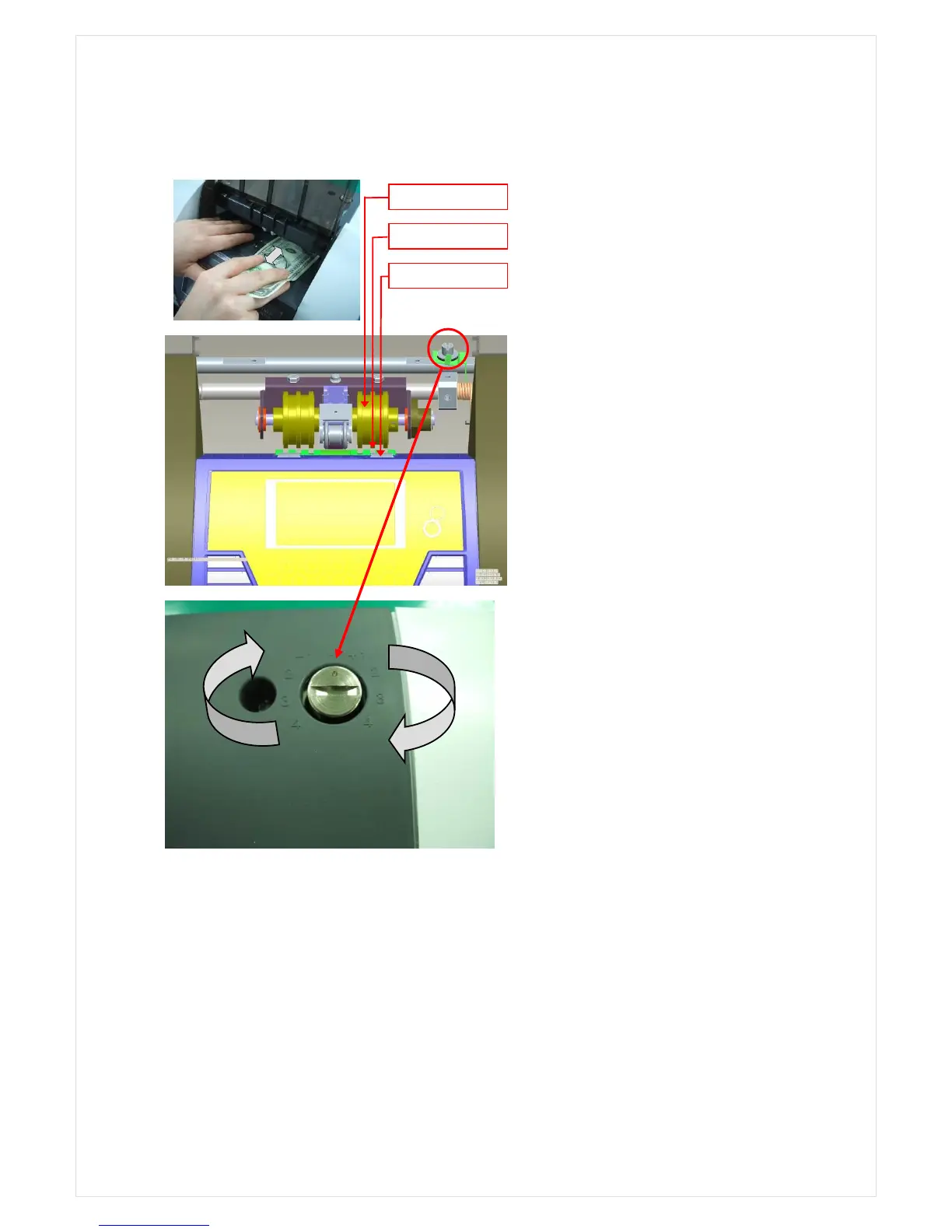

11-4. Gap between Separator and ADF Roller
 Prepare 2 banknotes
 Fix one of the pick-up rollers with one
hand.
 Grasp
the note with another hand as
the left picture, and try to insert and
draw it between gap of ADF and
Separator roller until the note is
passed through the gap.
 When one note is passed through,
the gap is OK.
 When two notes are passed through,
it is NG and required to adjust the
gap so as to make it more narrow
Separator
ADF
Pick-Up roller
Gap Troubles
 Too Wide : Double, Overrun
 Too Narrow : Miss Feeding, Jam 0
 Turning + direction : Loosening the gap
 Turning – direction : Tightening the gap
+
―
