Currency Discrimination Fitness Sorter SB - 2000 Service Manual
16
2-6. SENSORS
This machine uses various sensors to detect the malfunction of the machine the status of the notes
in the machine and to recognize the denominations of the notes. Also the machine has special
sensors for Fitness sorting function. These sensors are very sensitive and if they are not cleaned
correctly every day, this may negatively affect the performance of the machine.
Clean the sensors every day after operating. The power must be turned off before cleaning and
please do not use a volatile solvent for cleaning.

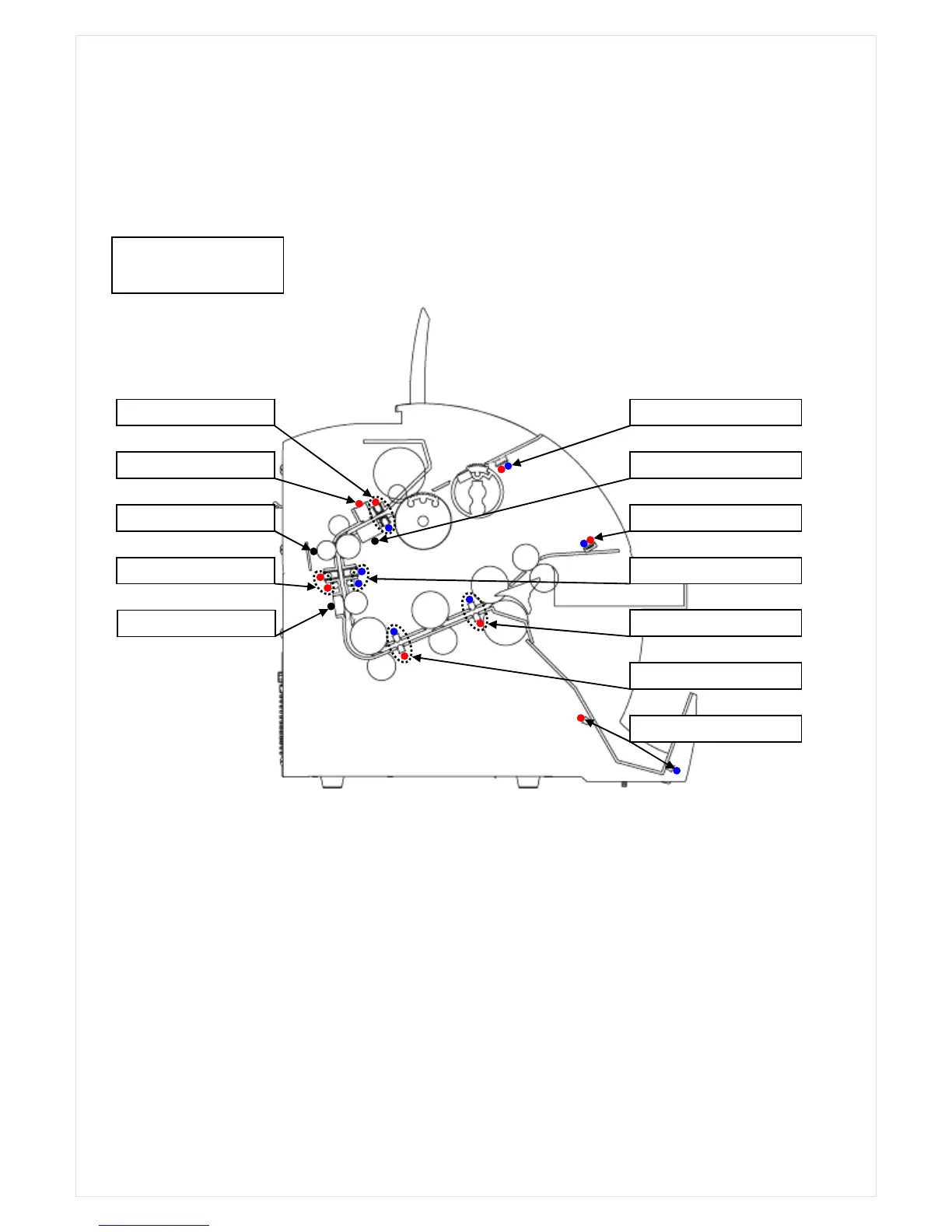

● T: TRN (Transmitter)
● R: RCV (Receiver)
HOPPER
REJECT_T, REJECT_R
UVB, RP2_R
JP_T, JP_R
IR/White_TRN_MODULE
CIS
BLOCK_TAPE_DETECT
SP_T, SP_R
RP1_T, RP1_R
UVA, RP2_T
STACKER_T, STACKER_R
T
R
R
R
R
R
R
R
T
T
T
T
T
T
T
MRS, MRA
