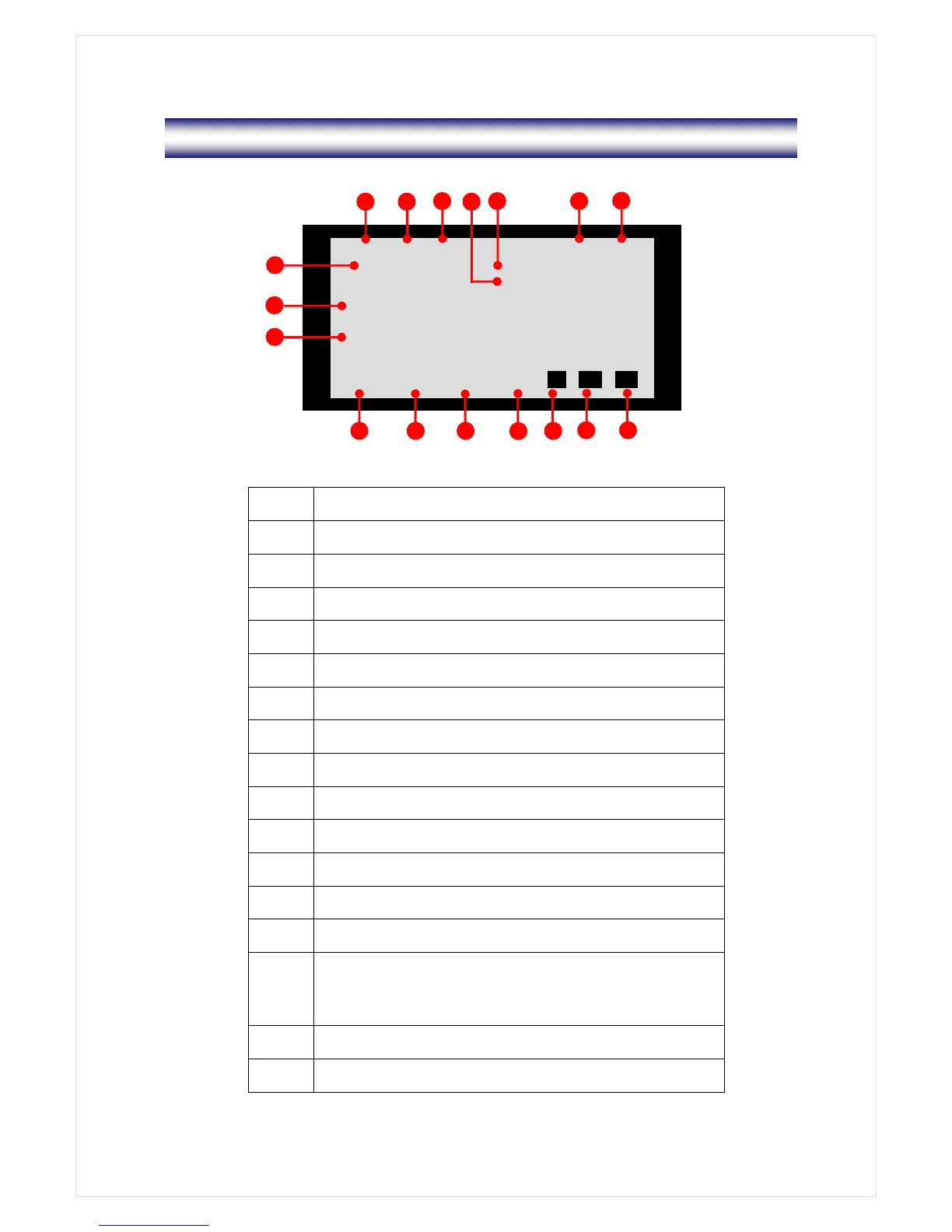

4. Overview of Display (LCD)
1 Auto / Manual Mode
2 Counterfeit Detection Mode On / Off
3 ADD Function On / Off
4 Total Count of Bills
5 Count of Bills in Stacker
6 Batch Size
7 Currency
8 Count of Bills in Rejecter
9 Amount of Bills in Stacker
10 Total Amount of Bills
11 Mode
12 Denomination
13 Speed
14 Density of Notes
15
‘M’ means ‘Mixed’
(Unfit note and other notes are mixed)
16 Counterfeit Warning
17 Stacker Pocket Status (FIT  UNFIT)
AUTO CF ADD 100 RUB
R : 0 S : 0
T : 0
SR 0
TR . 0
SINGL R10 ▶ ◐ .M. .CF. . F .
1 2
3
4
5 6
7
8
9
10
11 12 13 14 15
16 17
