Currency Discrimination Fitness Sorter SB - 2000 Service Manual
60
MR SHADING NG
NORM : 1.05
NOISE :
1 2 3 1 56
1 L : 1 R : 2
LEVEL : 32 (HIGH) (1)
45 48 35 45 45
48 L : 18 R : 20
MR SHADING NG
NORM : 1.05
NOISE :
99 55 77 87 56
45 L : 1 R : 2
LEVEL : 32 (HIGH) (1)
45 58 75 45 55
48 L : 18 R : 20
MR SHADING NG
NORM : 0.09
NOISE :
1 2 2 2 2
2 L : 1 R : 2
LEVEL : 32 (HIGH) (1)
3 1 2 2 2
1 L : 18 R : 20

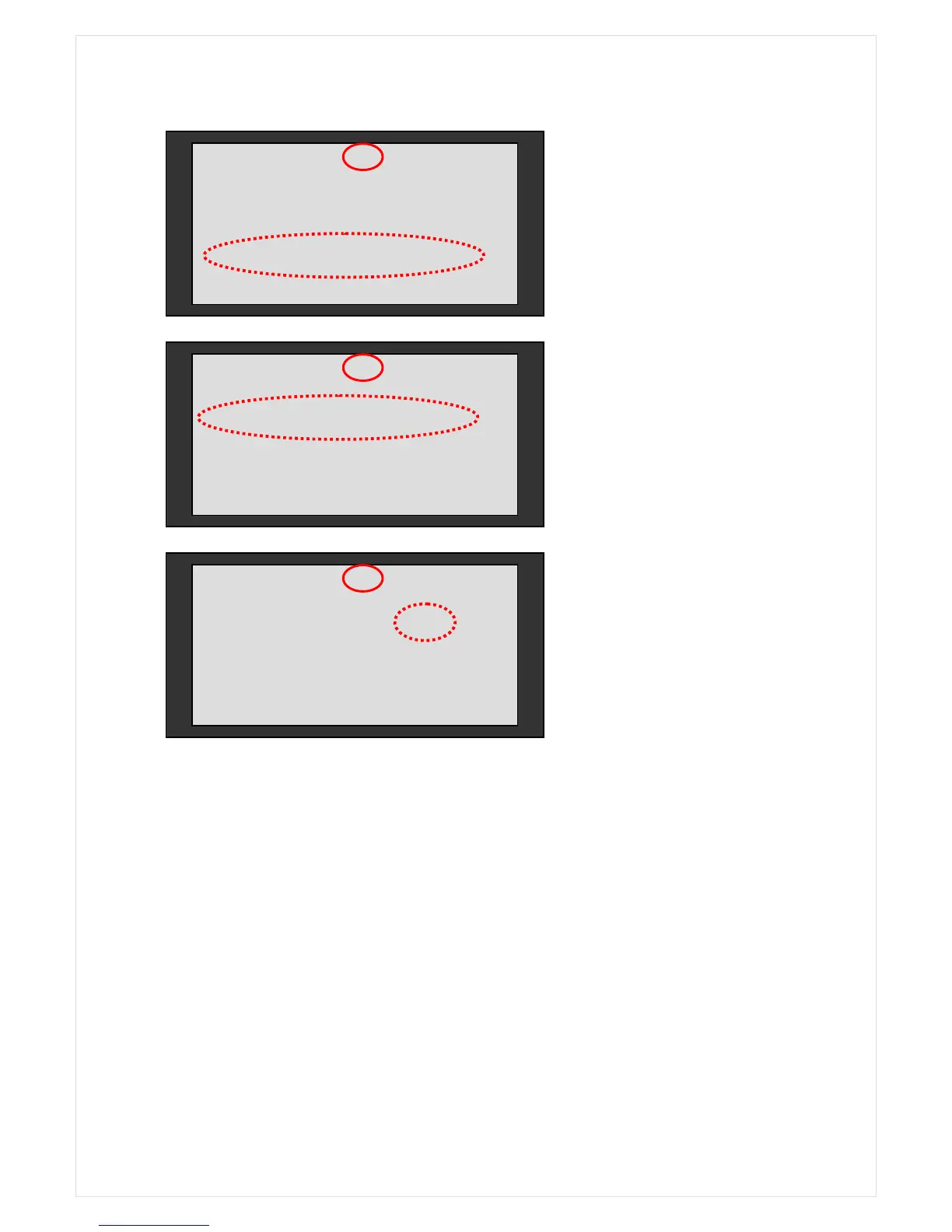

SHANDIG NG (Case 1)
 Harness cut off or disconnected
between CF AMP and Image Board.
(No Signal: Normal level values are not
transferred to the Image Board)
SHANDIG NG (Case 2)
 Harness cut off or disconnected
between MG Sensor and CF AMP.
(Too much Noise)
SHANDIG NG (Case 3)
Covered with Metallic dust on the ‘MR
Array sensor’ or ‘ROLLER_FEED_MR_V’
may course to occur a peak noise
