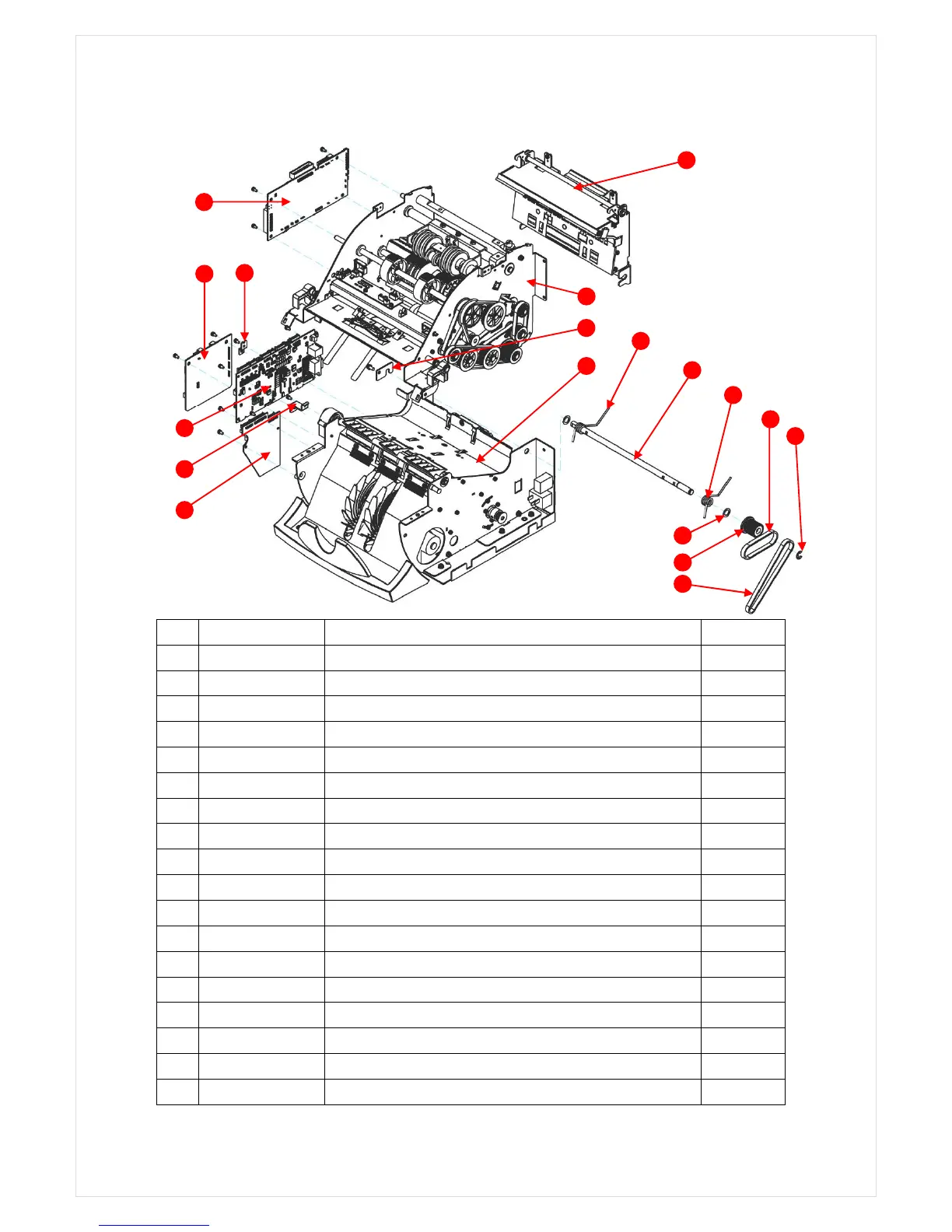

16 - 6. ASS’Y UPPPER & LOWER BODY
CODE PART NAME Q’TY
1 1A07X1104A PBA_VD_MAIN_V2.1 1
2 1A01X1037A PBA_CF_AMP_V1.3 1
3 740000800A BKT_PCB_MOUNT 1
4 1A07X1106A PBA_VD_IMAGE_V2.1 1
5 740709500A PCB_IMAGE_SUPPORT 1
6 1A07X1105A PBA_AMP_V2.0 1
7 1A07X2166A ASS'Y_REAR_BODY 1
8 - ASS'Y_UPPER_BODY 1
9 740000500A BKT_HINGE_STOPPER 1
10 - ASS'Y_LOWER_ BODY 1
11 7600B007XA TORSION_SPRING_MAIN_HINGE_L 1
12 7800A011XA SHAFT_HINGE_MAIN 1
13 7600B008XA TORSION_SPRING_MAIN_HINGE_R 1
14 8200B007XA BELT_IDLE 1
15 8400A004XA E_RING_Ø6(6x12x0.8)_Fe_ZB 1
16 8400D011XA PLASTIC_WASHER_Ø8(8.2x13x0.5T) 2
17 1A00X3049A ASS'Y_PULLEY_HINGE 1
18 8200B008XA BELT_MOTOR 1
