OPM 100 en-GB 104
© Scania CV AB 2023, Sweden
Other
6.

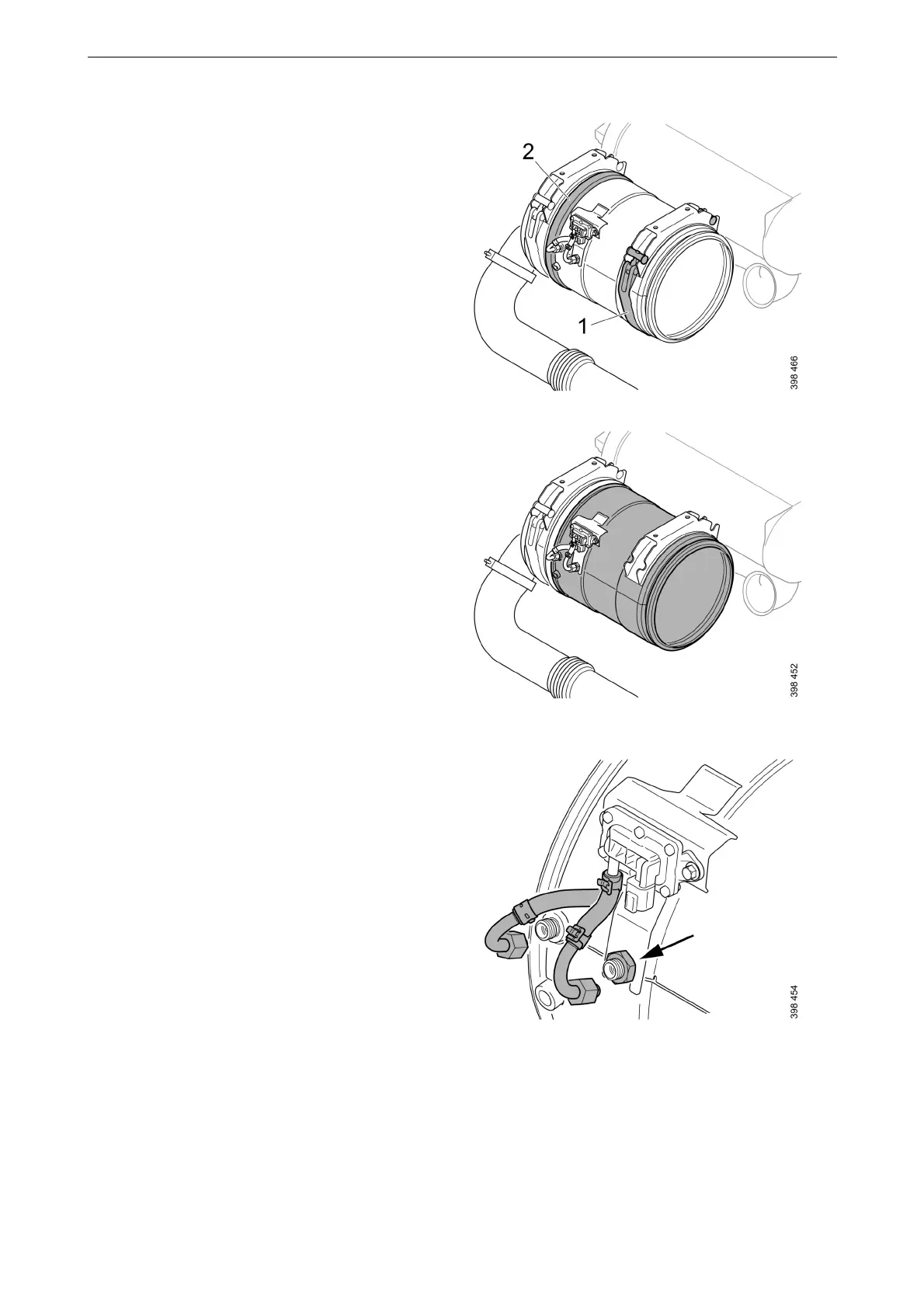

Remove the V-clamp (2) and the band clamp
around the particulate filter (1).
7. Lift off the particulate filter carefully.
8. Detach the differential pressure sensor con-
nections and remove the nut from the brack-
et.
