7 Commissioning
Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01

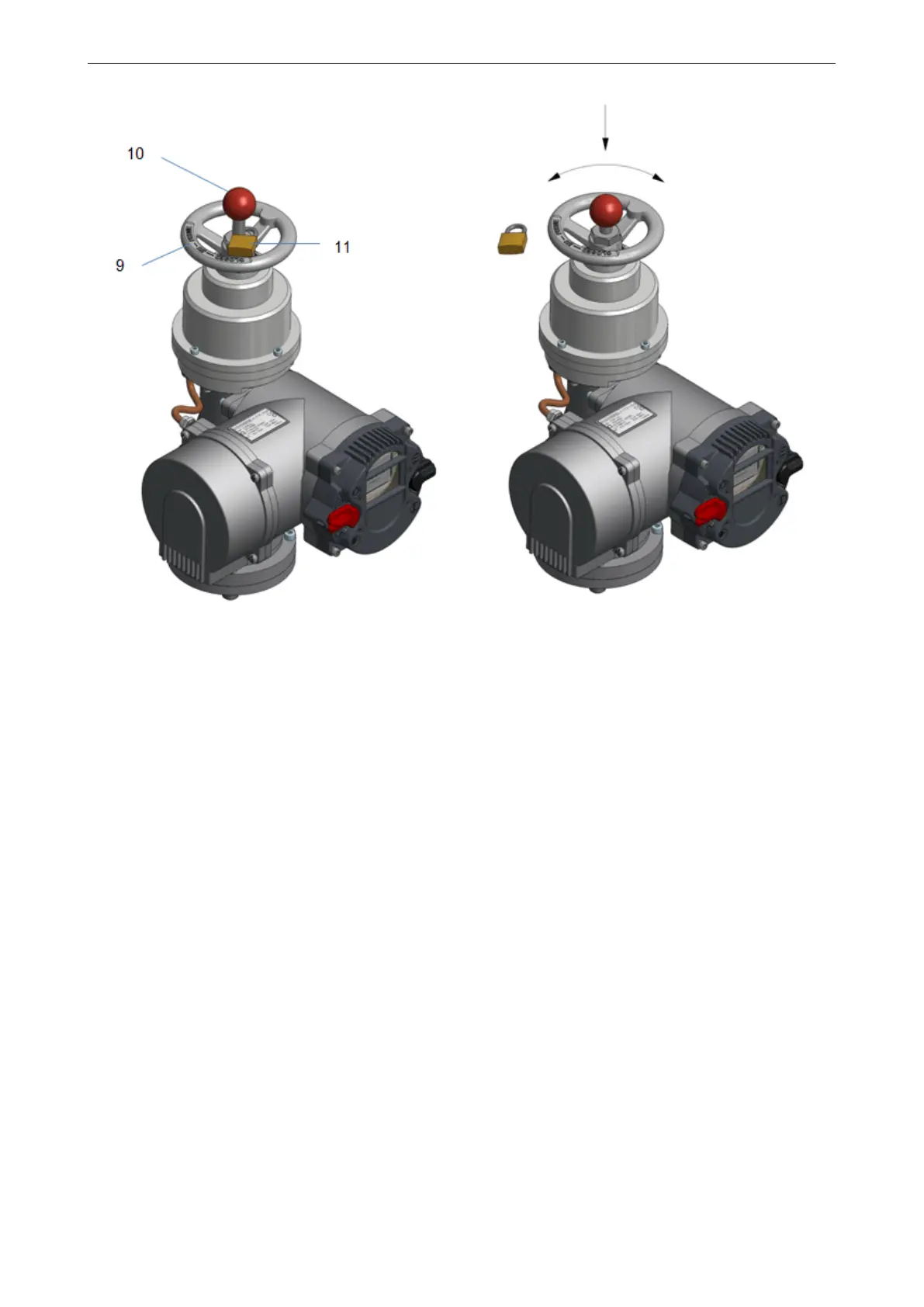

Figure 5: 9. . . Handwheel, 10. . . coupling rod, 11. . . padlock
7.2.1 Activate manual operation
To activate manual mode:
• the padlock has to be removed
• the coupling rod has to be be pushed all the way into the actuator.
For easier clutch engagement move the hand wheel easily back and forth.
Through the engagement the actuator is automatically electrically disabled and the display shows „manual override“.
7.2.2 Deactivate manual operation
The following steps are done to exit the manual mode and to enable the automatic mode again:
• the actuator must be driven to the Failsafe position by handwheel.
• the coupling rod is then pulled up to decouple the handwheel.
• lastly, the coupling rod is secured with the padlock.
