3 Functional Description of the CMF(S)QT - Failsafe Drive
Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01
3.1 Failsafe-direction
This Failsafe actuator can be built as a version for “Failsafe CCW” (counter-clockwise direction of rotation when looking
at the fitting shaft), see Figure 3, or “Failsafe CW” (clockwise direction of rotation). It is even possible to subsequently
change the Failsafe direction (separate manual available), see Figure 4, which requires some assembly work. Having this
conversion performed at our plant is recommended, however.

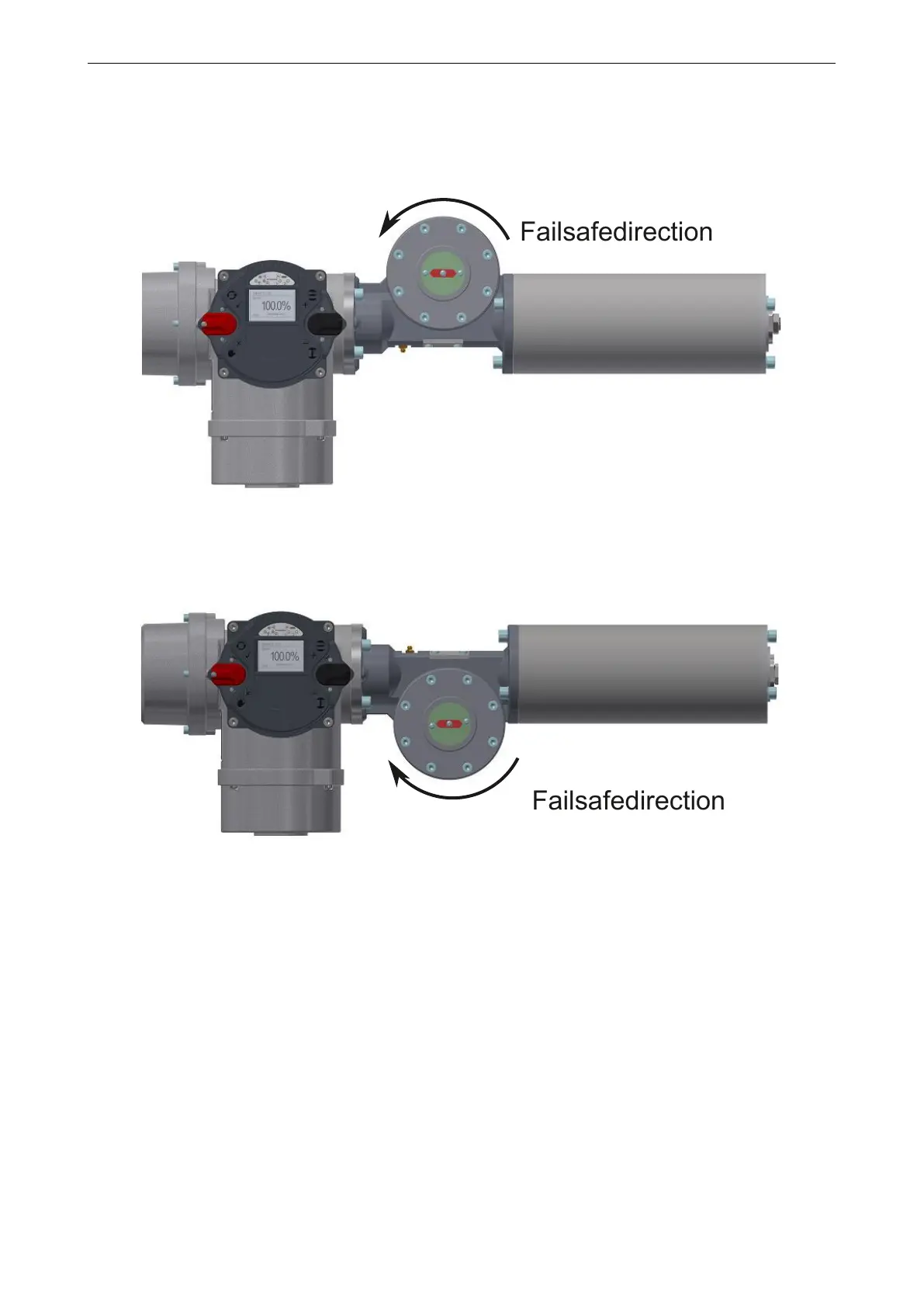

Figure 3: Failsafe-direction counter clockwise (CCW)
Figure 4: Failsafe-direction clockwise (CW)
