24 Characteristic curves
Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01
24 Characteristic curves

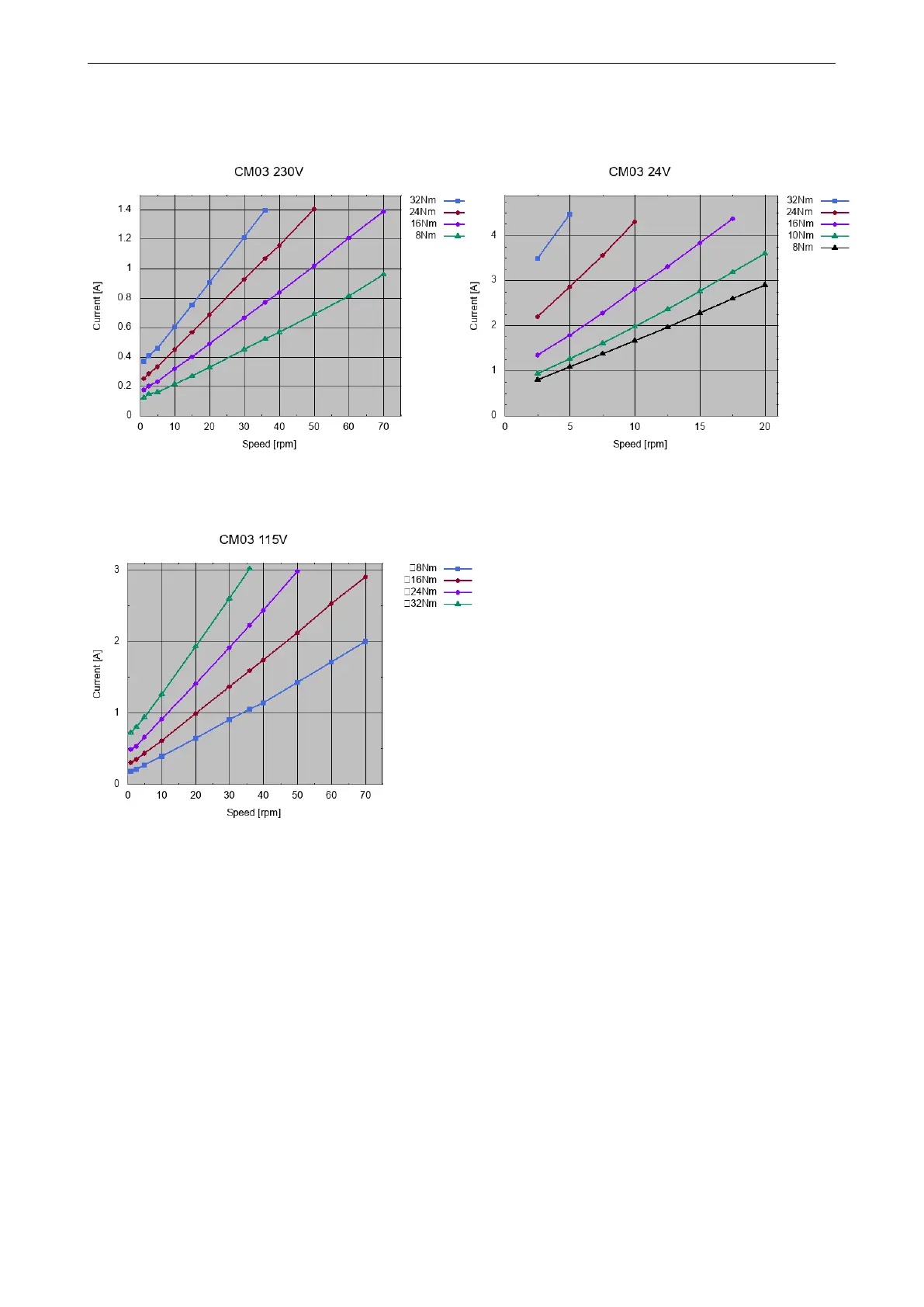

24.1 Characteristic curves - CM03
Figure 104: Current draw of the standard version Figure 105: Current draw of the 24 VDC version
Figure 106: Current draw of the standard version
94
