Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01 7 Parameter menu

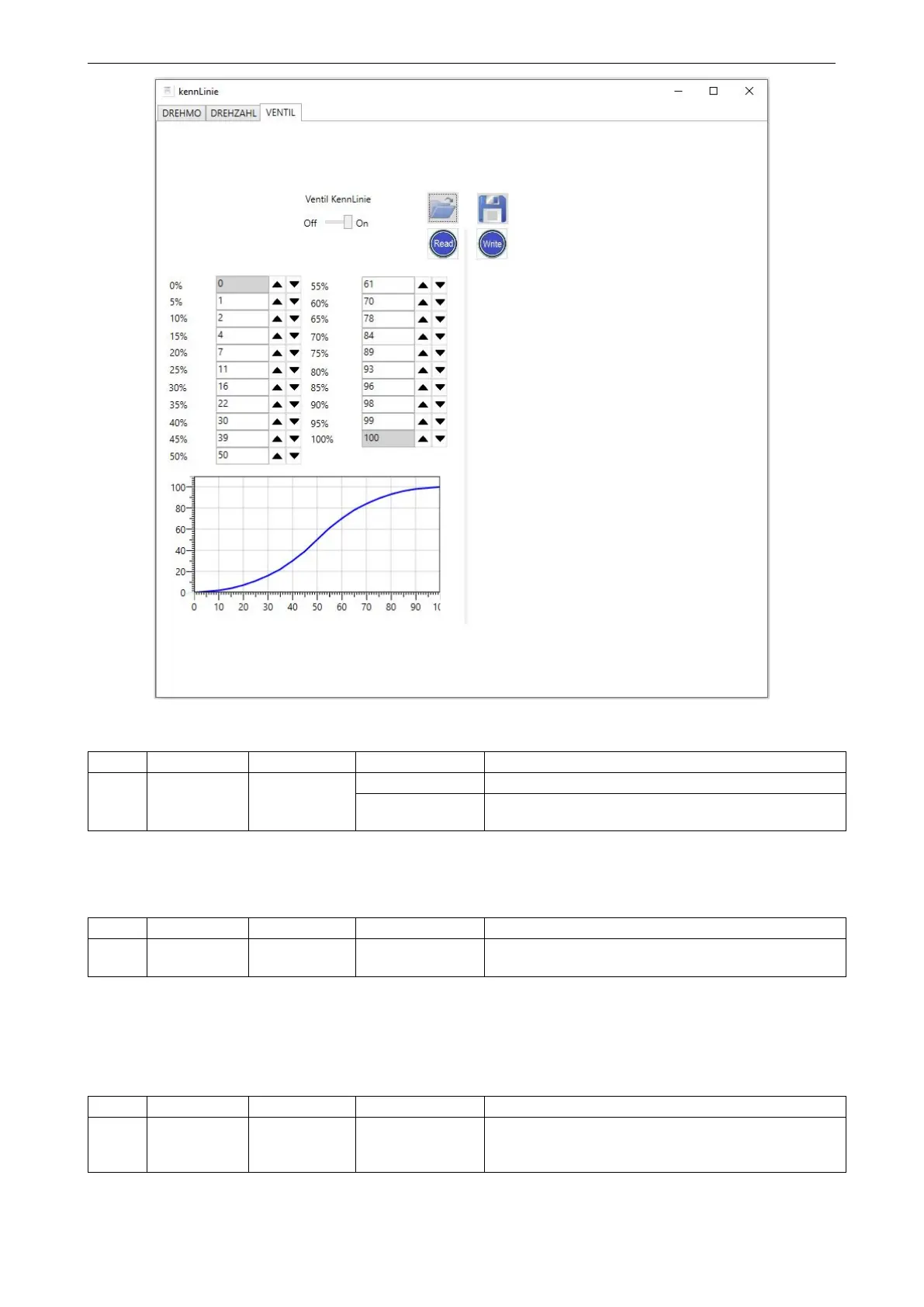

Figure 76: Valve characteristic
Menu item Sub-menu item poss. setting Notes / comments
P17.5 Characteristic Valve 0: Off The valve characteristic curve is disabled.
1: user defined
The valve characteristic curve is enabled as configured in
the SMARTTOOL.
7.16 Parameter group: Identification (optional)
This option allows entering further custom-identification parameters.
Menu item Sub-menu item poss. setting Notes / comments
P18.1 Identification PPS number 15 digits
Used to enter a PPS number. This is displayed in the
bottom line. CAUTION: Param P20.5 must be set to 0.
7.17 Parameter group: System parameters
Used for actuator configuration. Most of these parameters are used to display crucial information about the actuator
configuration for servicing, thus, only visible for user level service or higher.
Menu item Sub-menu item poss. setting Notes / comments
P19.6
System
Parameters
Calib.IST -10. . . +10%
This value is used to offset the output signal of the
ACTUSMART control unit’s analog output. The mA-signal
may be calibrated with a current measurement device.
continued on next page
