7 Parameter menu

Operating Manual 90° ACTUSAFE CMF(S)QT

OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01

7.15.2 Speed characteristic

With this characteristic curve, speed limits already set under menu item P4-speed (see section 7.3, page 44) can be further

reduced depending on travel. Characteristics can be conﬁgured via the SMARTTOOL software (see Figure 75, page 62).

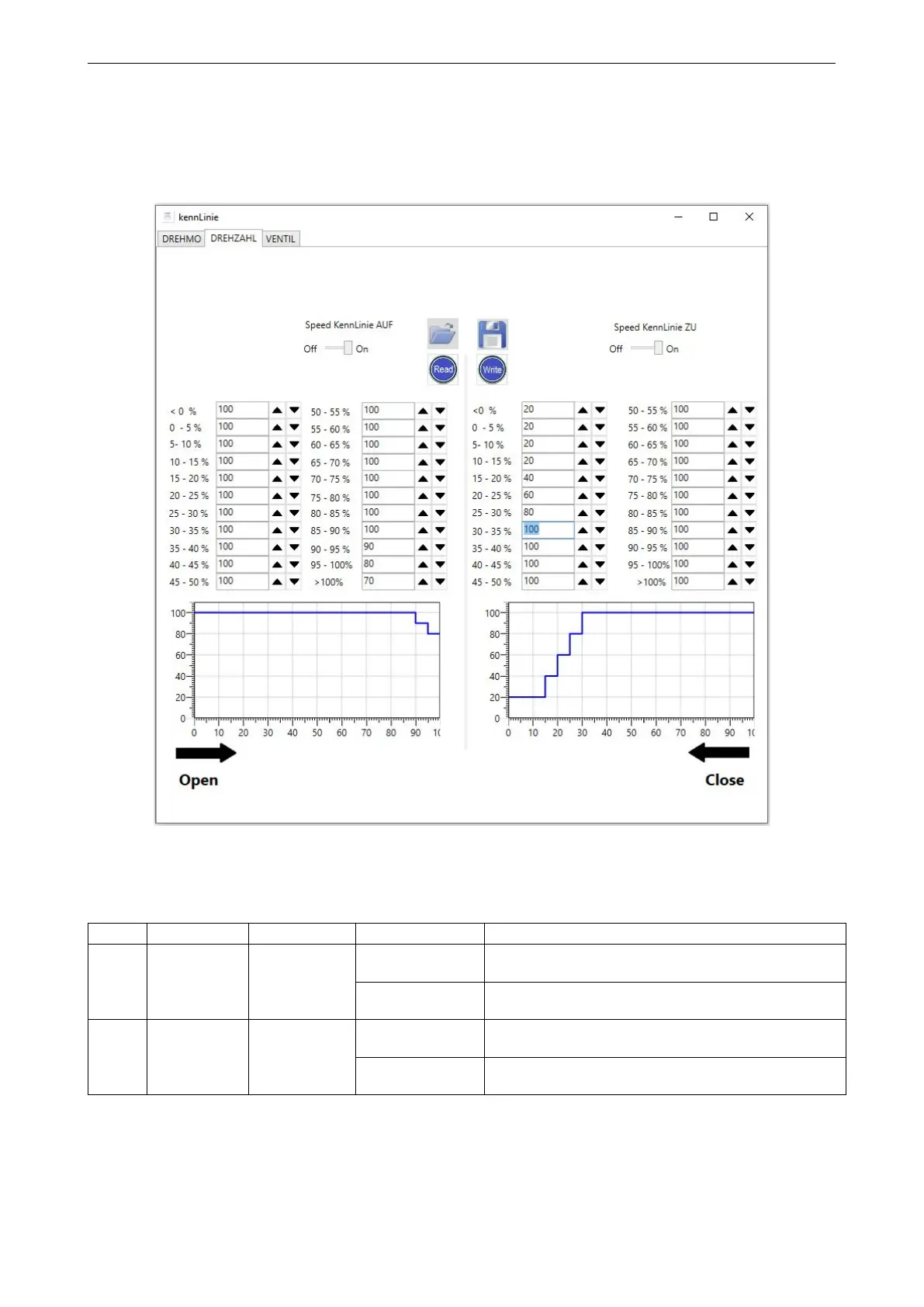

Figure 75: Speed characteristic

Menu item Sub-menu item poss. setting Notes / comments

P17.3 Characteristic Speed Open 0: Off

The speed characteristic curve is disabled for the OPEN

direction.

1: On

The speed characteristic curve is enabled for the OPEN

direction.

P17.4 Characteristic Speed Closed 0: Off

The speed characteristic curve is disabled for the

CLOSED direction.

1: On

The speed characteristic curve is enabled for the

CLOSED direction.

7.15.3 Valve characteristic

With this characteristic curve the mapping between the actuator position and the setpoint of the valve can be adjusted.

Hence it is possible to compensate and linearize the gerneral nonlinear characteristic curves of valves. Characteristics can

be conﬁgured via the SMARTTOOL software (see Figure 76, page 63).
