20 Technical data
Operating Manual 90° ACTUSAFE CMF(S)QT
OM-ENGLISH-Failsafe-QT-16xx-V2.00-2022.03.01

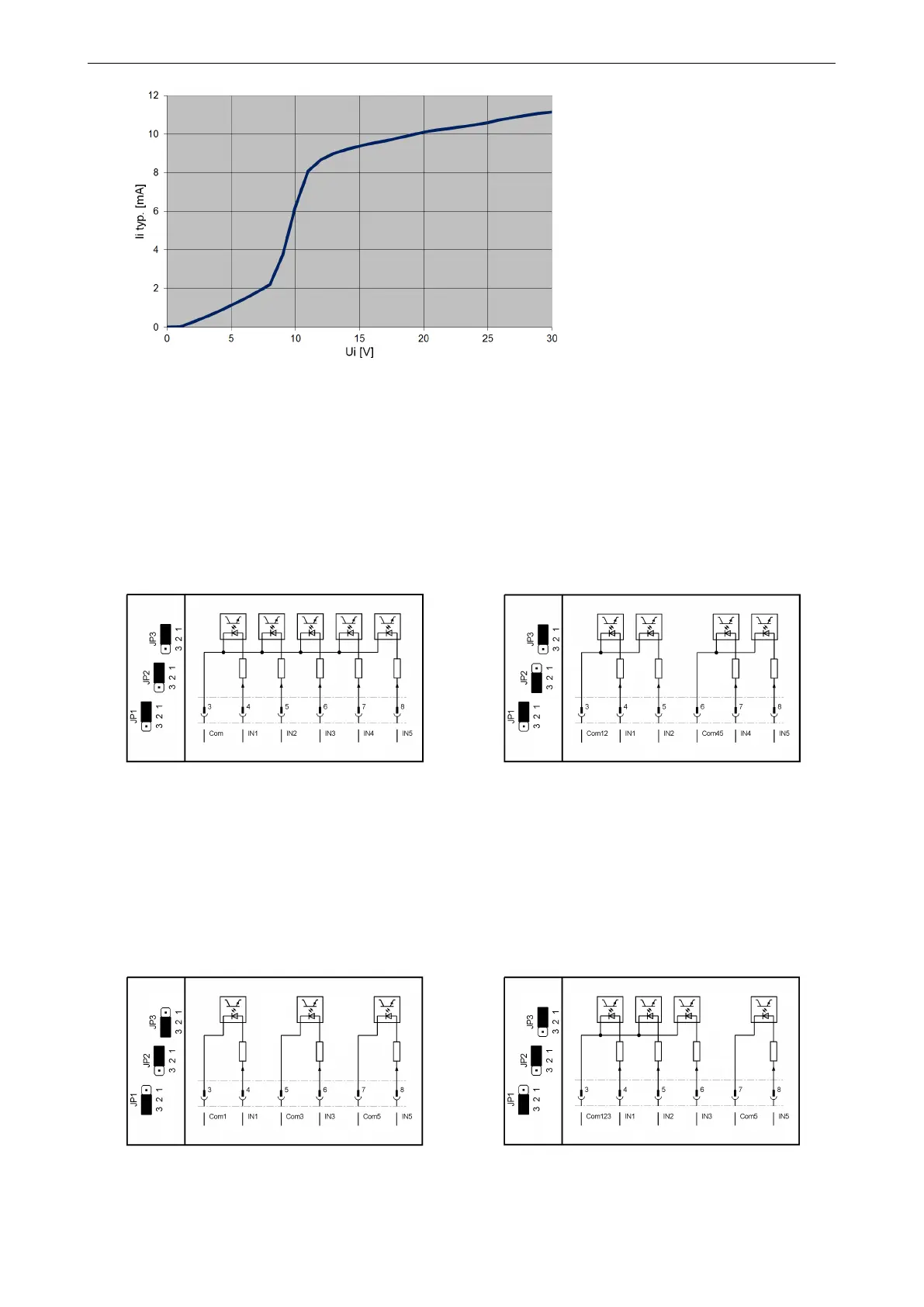

Figure 90: Binary inputs, input characteristic
Ui . . . Input voltage
Ii . . . Input current
Jumpers JP1 . . . JP3 can be used to interconnect the binary inputs to groups with separate earths:
Figure 91: 5 inputs with same common Figure 92: 2 separated groups of 2 inputs with same
ground
Input IN3 is disabled.
Figure 93: 3 separated inputs
Inputs IN2 and IN4 are disabled.
Figure 94: 3 inputs with same common and 1 separated
input.
Input IN4 is disabled.
84
