8 • Schlage • PIM400-TD2 user guide
Wire routing
IMPORTANT: When drilling holes in the PIM400-TD2 to accommodate connectors, ensure
that the drill bit does not damage any electronics inside the enclosure. Use light drill
pressure to prevent the bit from entering the enclosure very far. The electronics may be
removed before drilling holes. To remove electronics, remove only the four screws holding
the circuit board to the enclosure. Do not loosen or remove any screws securing the
electronics to the circuit board.
When using the internal antenna, attention to wire routing is very important. Improper wire
routing will reduce the RF range. Wires inside the enclosure should be as short as possible
(i.e. do not coil any excess wire inside the enclosure).
Drill hole(s) in the PIM400-TD2 enclosure to accommodate the size and number of entry/
exit connectors to be used. Holes in the top of the PIM400-TD2 are for remote antenna
installation only. Do not run signal or power wiring through the top of the PIM400-TD2
enclosure.

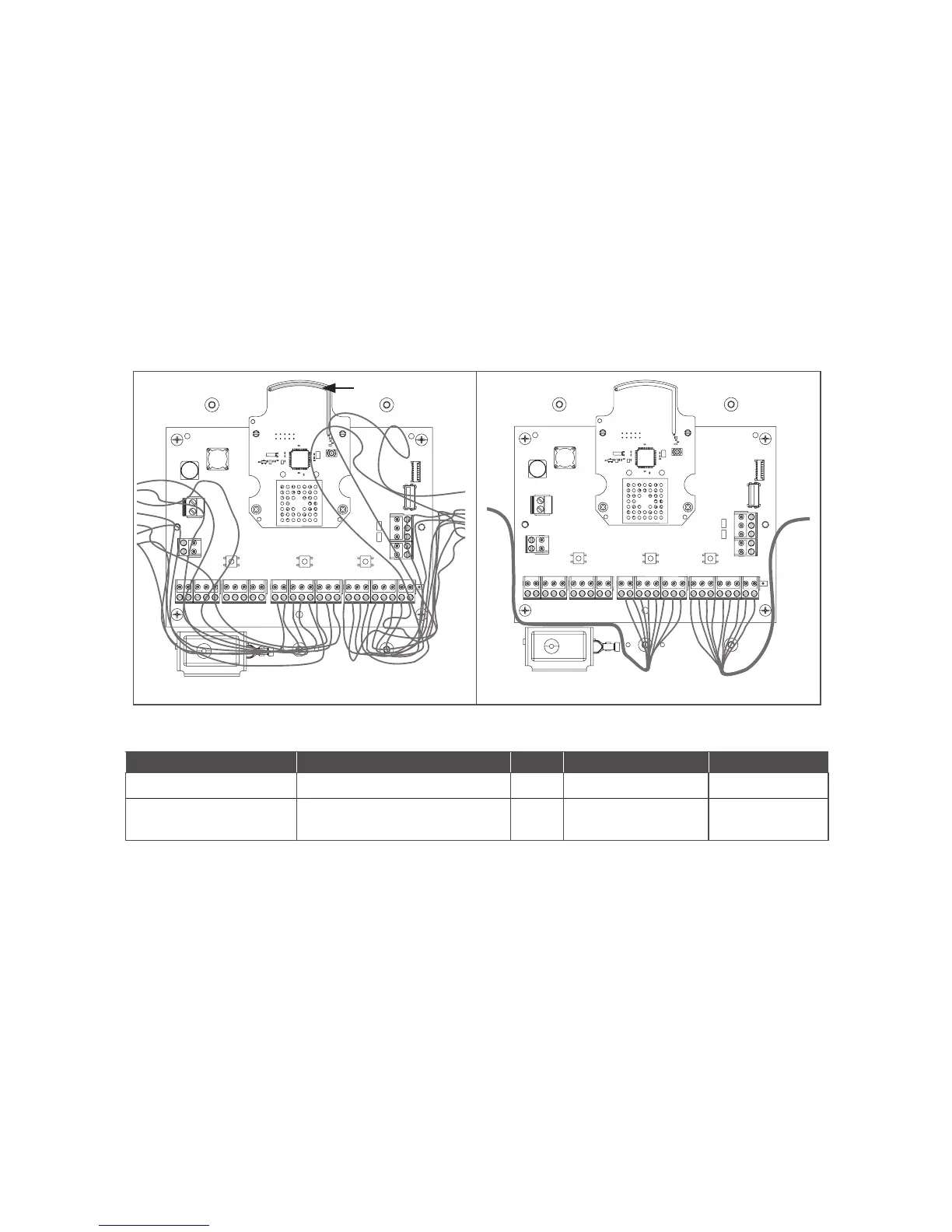

Internal antenna
Improper wire routing Proper wire routing
Cable/wire specications
Application Part number AWG Description Max distance
DC power input Belden 8760 or equivalent 18 2 conductor 1000 Feet
PIM400-TD2 to ACP Alpha 1298C or equivalent 22
8 conductor
shielded
500 Feet
