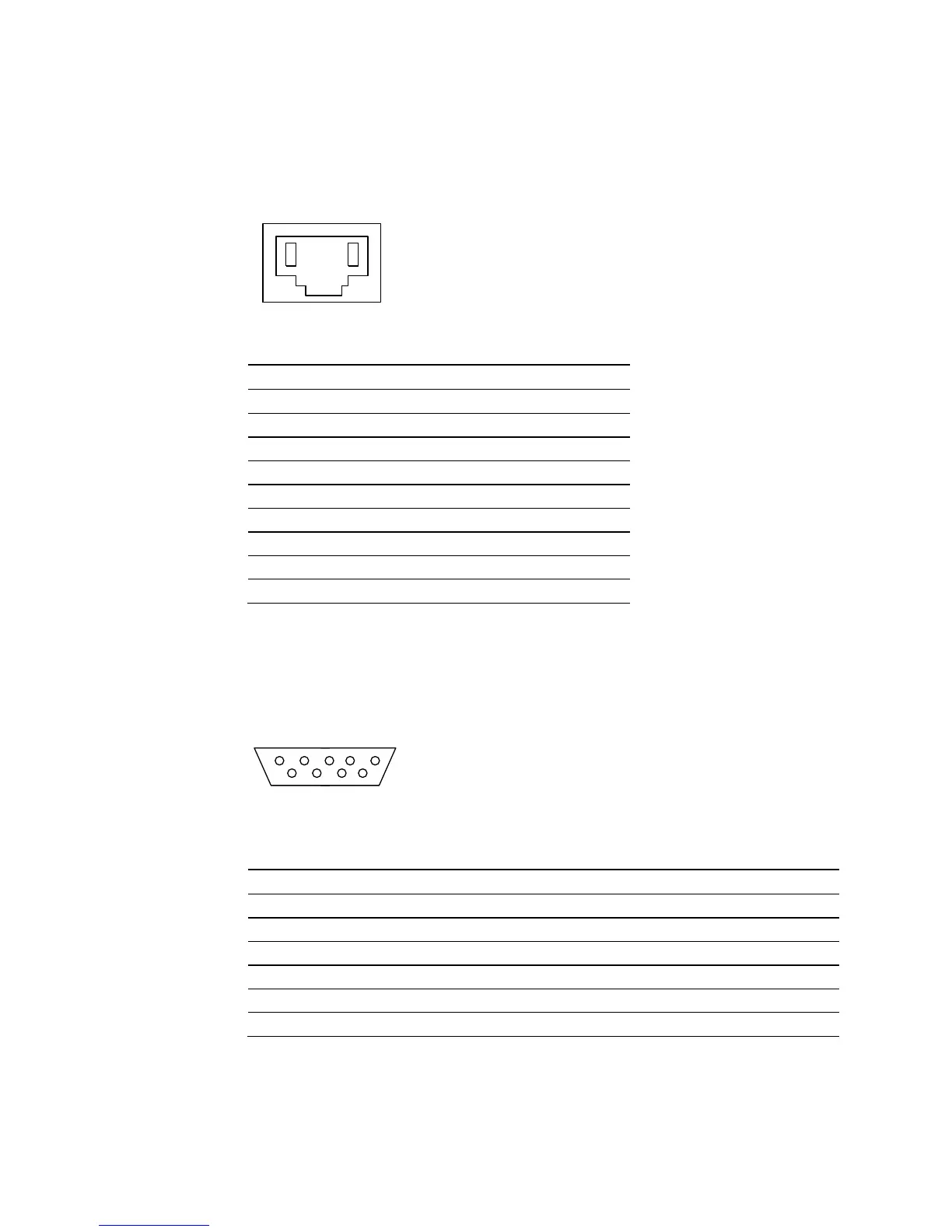

10.3 Ethernet Interface
1 8
. . . .
Type: RJ45-8 (Front View)
Figure 10-5: Ethernet Connector
Pin No
Signal Name
1
Transmit Data +
2
Transmit Data -
3
Receive Data +
4
Not used
5
Not used
6
Receive Data -
7
Not used
8
Not used
Table 10-3: Ethernet Connector
10.4 Monitor Interface
The Monitor connector is available on the tabletop modem.
SubD9 female (Front View)
Figure 10-6: Monitor Connector
Pin
Signal
Description
1
SGND
RS-232 Signal Ground
2
TXD
RS-232 Transmit Data
3
RXD
RS-232 Receive Data
4
not used
5
SGND
RS-232 Signal Ground
6 .. 9
not used
Table 10-4: Monitor Connector
5
1
9
6
