Assembly
01.00 | CMS | Assembly and operating manual | en | 1553577 19
Size
Fitting of

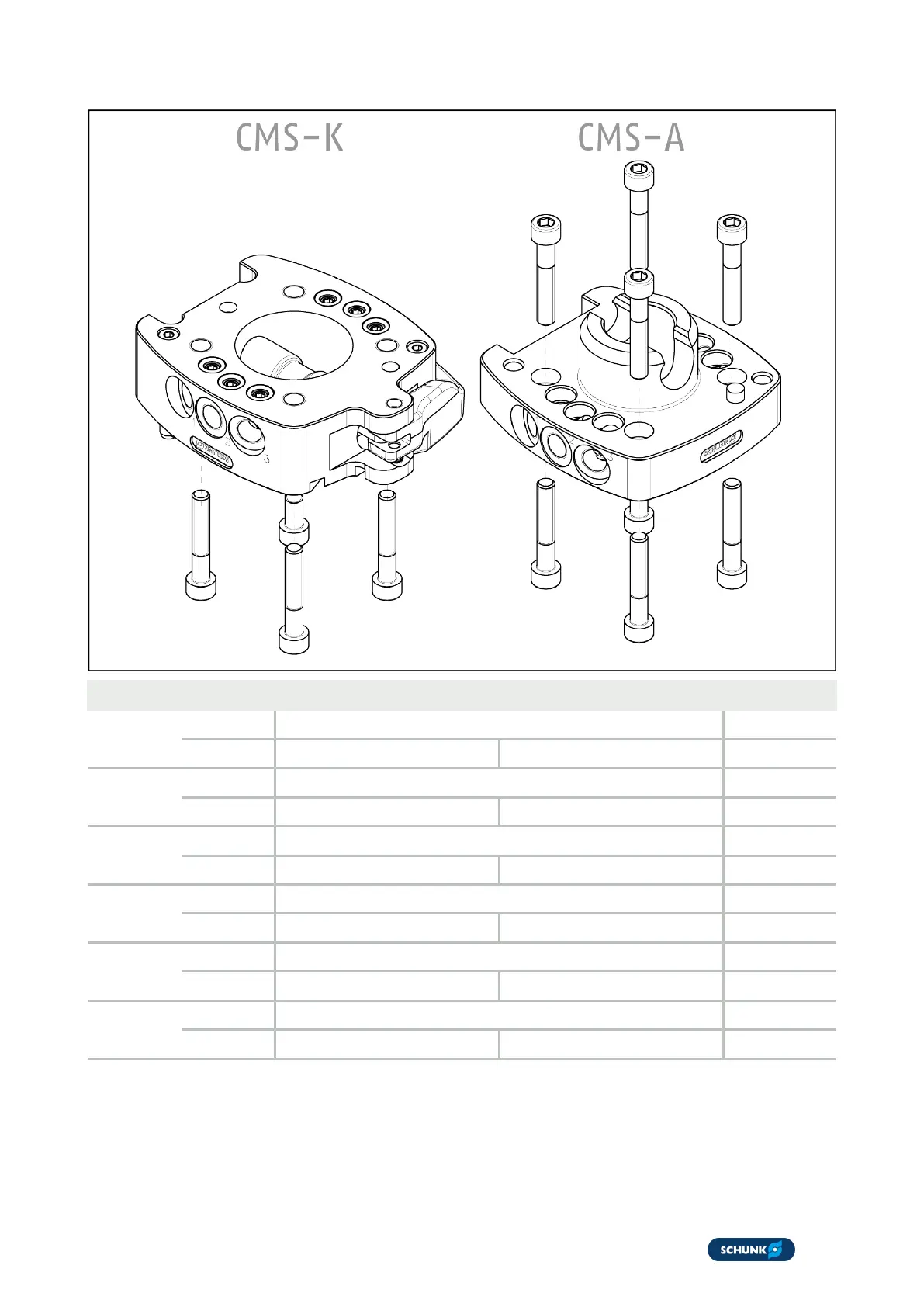

CMS-K CMS-K-B CMS-A CMS-A-B CMS-A-N
040 below matching ISO 9409-1-40-4-M6 Ø40, 4x M8
above - Ø40, 4x M4 Ø40, 4x M6
063 below matching ISO 9409-1-50-4-M6 Ø50, 4x M8
above - Ø50, 4x M4 Ø50, 4x M6
100 below matching ISO 9409-1-63-4-M6 Ø63, 4x M8
above - Ø63, 4x M4 Ø63, 4x M6
050 below matching ISO 9409-1-80-6-M8 Ø80, 4x M10
above - Ø80, 4x M6 Ø80, 4x M8
080 below matching ISO 9409-1-100-6-M8 Ø100, 4x M10
above - Ø100, 4x M6 Ø100, 4x M8
125 below matching ISO 9409-1-125-6-M10 Ø125, 6x M12
above - Ø125, 6x M8 Ø125, 6x M10
