SCHUNK CMS 050 - 7.4 Spare and wearing parts

Maintenance
01.00 | CMS | Assembly and operating manual | en | 1553577 25
7.4 Spare and wearing parts

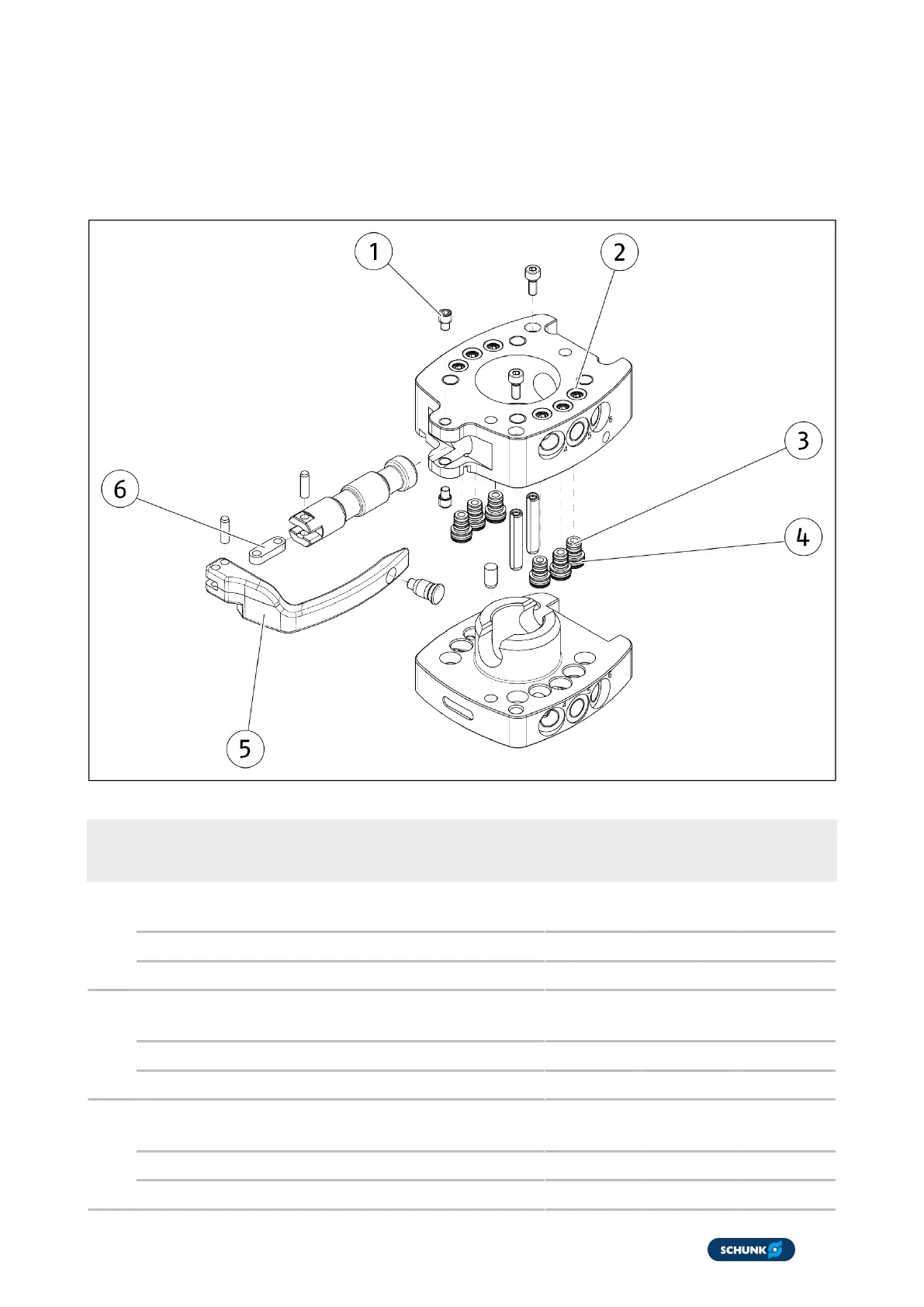

The following figure is an example image.
It serves for illustration and assignment of the spare parts.
Variations are possible depending on size and variant.
Tab.: Wear parts
Item Designation CMS
040 050 063 080 100 125
1 Designation Guide
screw
Guide
screw
Guide
screw
Guide
screw
Guide
screw
Guide
screw
ID 1544336 1544339 1544339 1544339 1544339 1544343
Amount 2 2 2 2 2 2
2 Designation O-ring
Ø4 mm
O-ring
Ø4 mm
O-ring
Ø5.5 mm
O-ring
Ø5.5 mm
O-ring
Ø8 mm
O-ring
Ø8 mm
ID 9942290 9942290 9984192 9984192 9937276 9937276
Amount 4 6 6 9 12 12
3 Designation Sealing
pin
Sealing
pin
Sealing
pin
Sealing
pin
Sealing
pin
Sealing
pin
ID 1544312 1544312 1544315 1544315 1544332 1544335
Amount 4 6 6 9 12 12
